JAEGER INSTALLATION GUIDE
Commercial in Confidence 7/26
Mechanical Installation
Overview
The system should be installed in the following order;
1. Pan / Tilt securely mounted to the Mast / Installation Location
2. RADAR / Top Mount Device securely installed
3. Side Payloads
4. Cable / PSU
Note: The system should not be powered on when any of the payloads / top mounts are attached.
Fixtures and Fittings;
The followings fittings are providing with the Jaeger System.

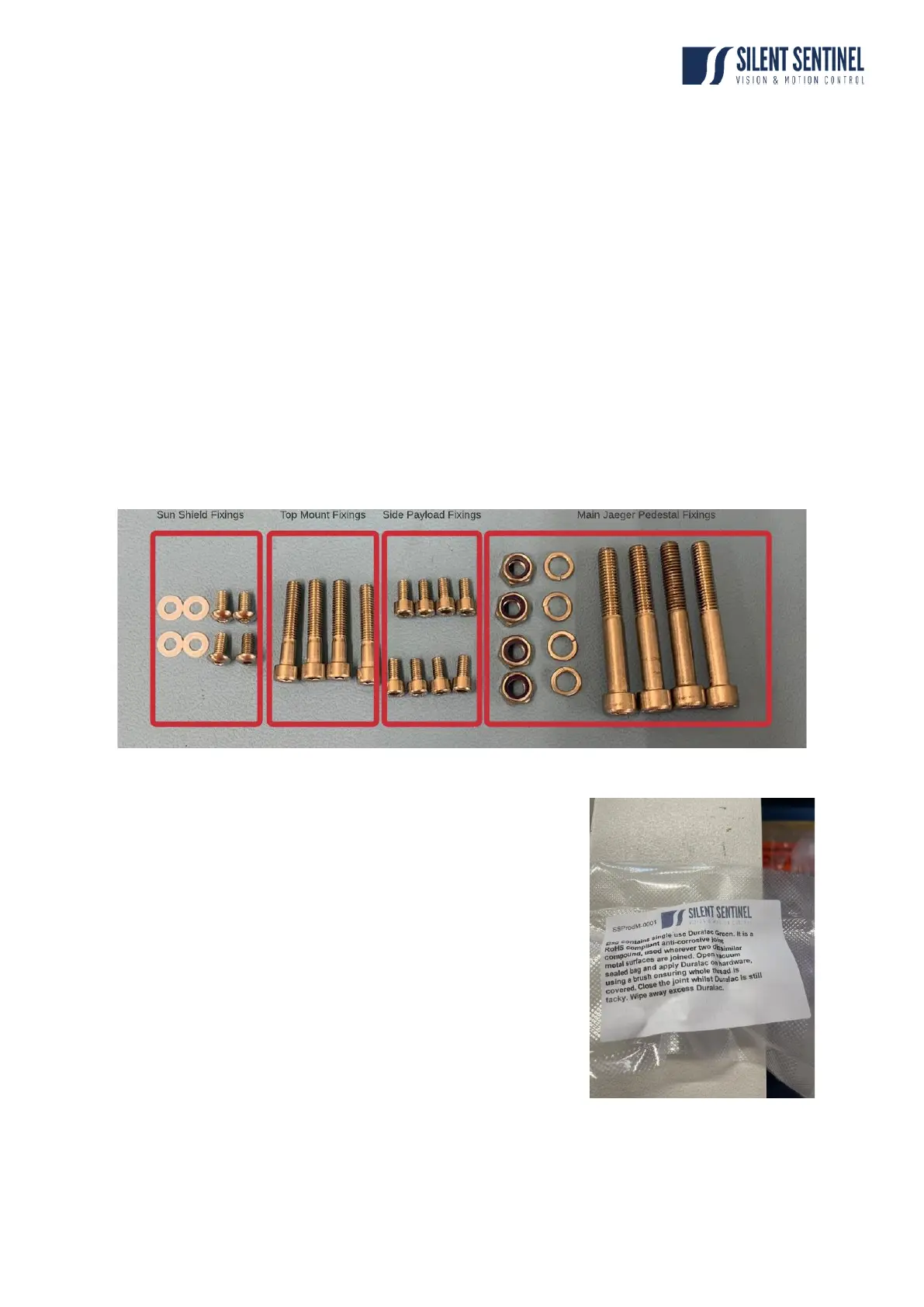

Figure 3 Jaeger Fittings
1. Sun Shield Fixings;
a. QTY4 – M4x10
b. QTY4 – M4 Nylon Washers
2. Top Mount Fittings;
a. QTY4 – M6x35
3. Side Payload Fittings;
a. QTY8 – M5x10
i. QTY4 for each Payload
4. Main Jaeger Fittings
a. QTY4 – M8x60
b. QTY4 – Spring Washers
c. QTY4 – M8 Nyloc Nuts
5. Duralac
a. To be used on all threads
