JAEGER INSTALLATION GUIDE
Commercial in Confidence 5/26
System Overview
Overivew
The Jaeger PT system generally comprises of;
1. The Jaeger PT Unit
2. QTY1 EO (Daylight Camera)
3. QTY1 Ti (Thermal Camera)
However, as the Jaeger is a highly modular platform the number and nature of payloads may vary
from unit to unit. This Installation Documention only considers the standard system as noted
above. If there is ANY uncertainy brought about by other combinations of payloads then Silent
Sentinel should be consulted prior to any installation efforts.
Power / Interface Requirements
Votlage Input: 48 VDC
Power Draw (PT Only): 100W (Max 150W)
These figures do not include the requirements of any large payloads, optional heating or cooling
devices added within the camera enclosures, nor optional infra-red lighting systems. Please consult
Silent Sentinel for further guidance.
Top mounted (fixed) payloads are powered separately from the PTZ system.
System Orientation

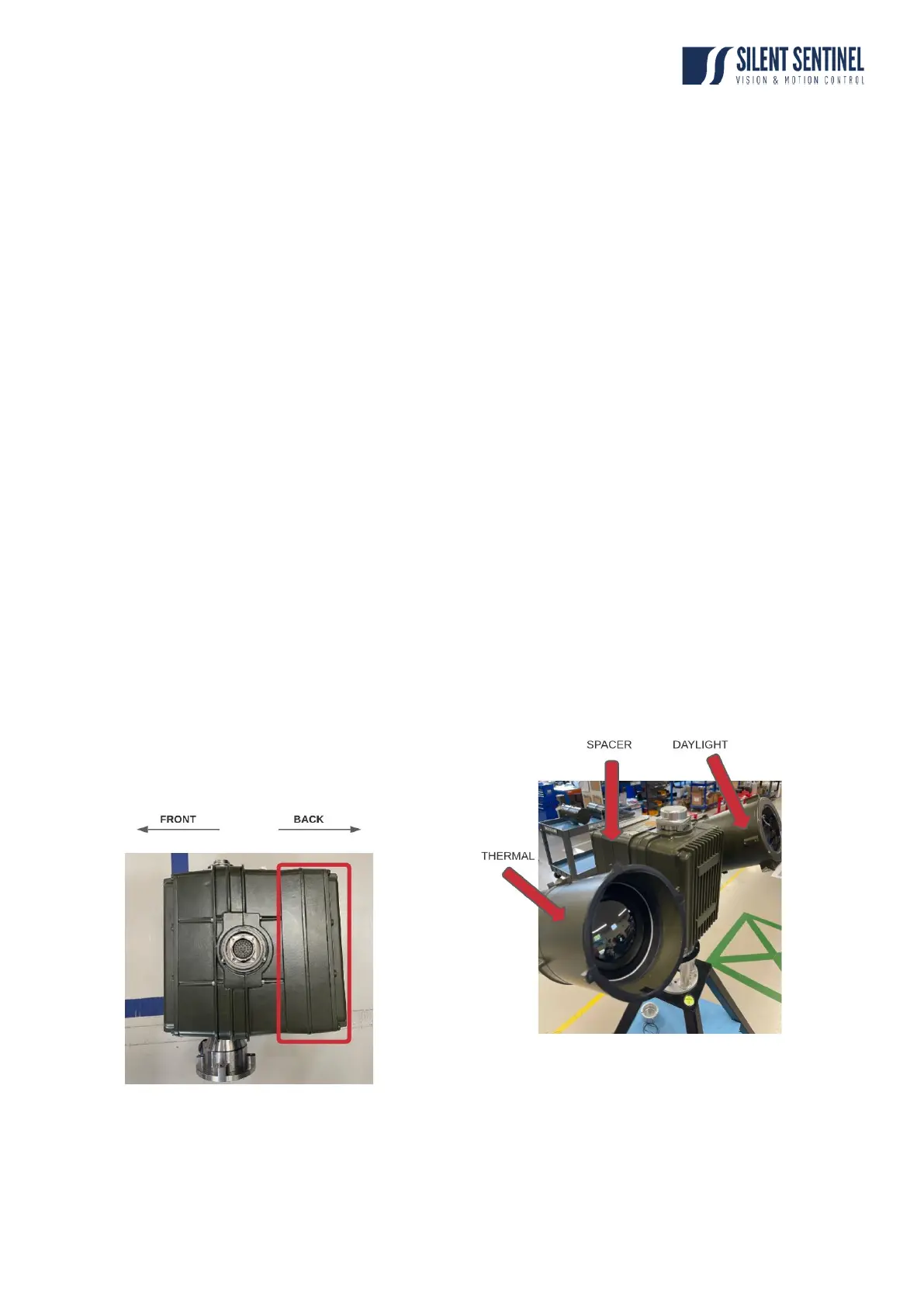

The image on the top left (Figure 1) shows a ‘MK2’ Jaeger with the additional spacer fitted. This
spacer can be used to identify the ‘Back’ and ‘Front’ of the PT Unit. If you face the rear of the unit,
