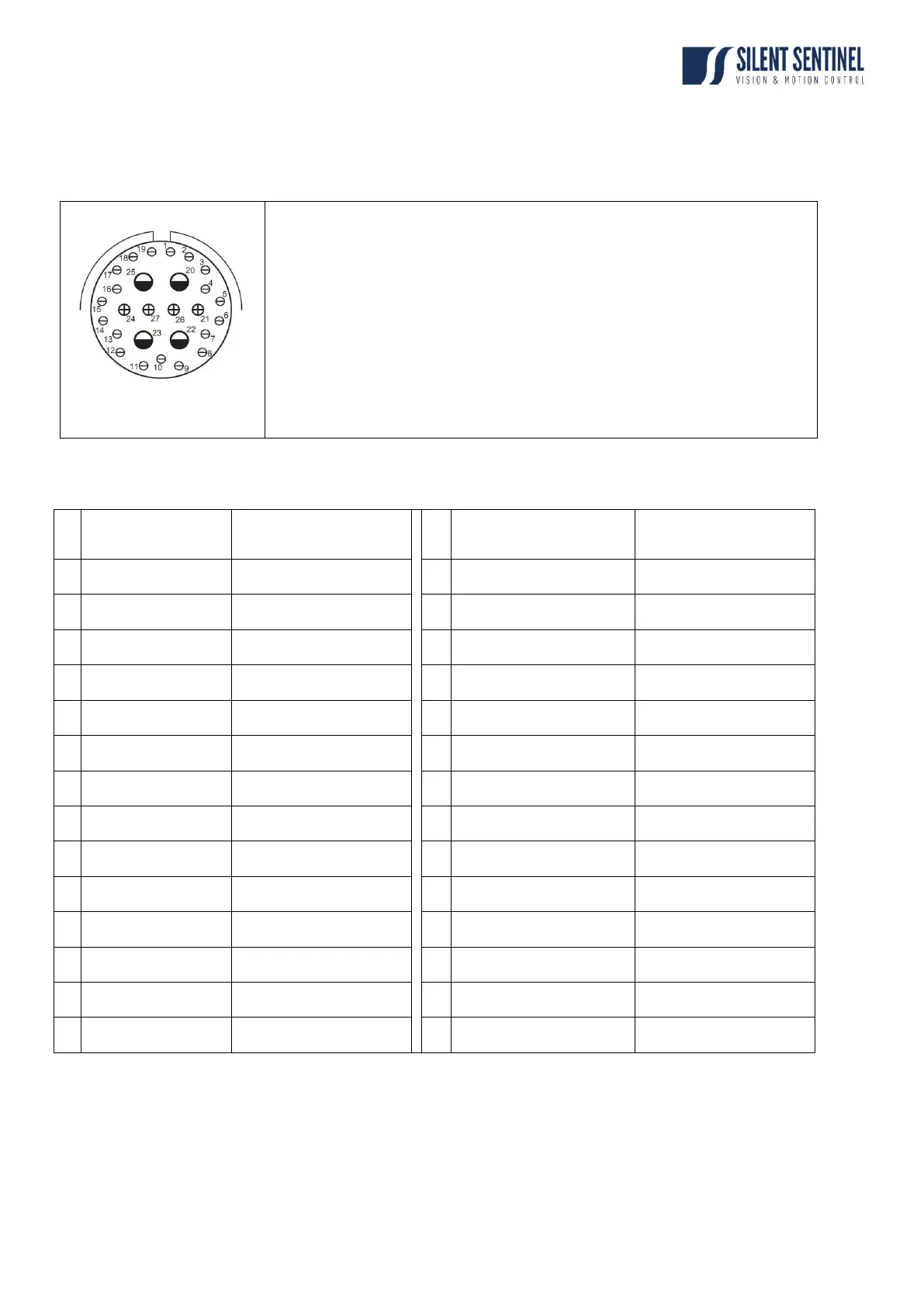

ANNEX 3 - Physical Connectors
Jaeger Base Connector
IL38K
View in to Socket face.
Amphenol TV-Series/ (D38999 ).
Base Socket: Amphenol TVP00ZN21-29P
Cable Connector: Amphenol TV06ZN-21-29SN
Contact arrangement: 21-29.
Contacts No.20 and No.25 are Coaxial types for Video transmission.
Installation cable - Contact assignments and conductors (CA-JCM cable).
(MIL38K)
Pi
n
Function
Conductor
Pin
Function
Conductor
1
Ethernet B 1 (Pass-thru')
(Net2 Blue) - Cat5e Brown
15
Ethernet A 4 (PTZ Data)
(Net1 Grey) - Cat5 White/Green
2
Ethernet B 2 (Pass-thru')
(Net2 Blue) - Cat5e White/Brown
16
Ethernet A 5 (PTZ Data)
(Net1 Grey) - Cat5 Blue
3
Ethernet B 3 (Pass-thru')
(Net2 Blue) - Cat5e Green
17
Ethernet A 6 (PTZ Data)
(Net1 Grey) - Cat5 White/Blue
4
Ethernet B 4 (Pass-thru')
(Net2 Blue) - Cat5e White/Green
18
Ethernet A 7 (PTZ Data)
(Net1 Grey) - Cat5 Orange
5
Ethernet B 5 (Pass-thru')
(Net2 Blue) - Cat5e Blue
19
Ethernet A 8 (PTZ Data)
(Net1 Grey) - Cat5 White/Orange
6
Ethernet B 6 (Pass-thru')
(Net2 Blue) - Cat5e White/Blue
20
Video 1 (CVBS) (Coax Contact)
Coax 1 (Black)
7
Ethernet B 7 (Pass-thru')
(Net2 Blue) - Cat5e Orange
21
Aux Power DC Positive
Orange
8
Ethernet B 8 (Pass-thru')
(Net2 Blue) - Cat5e White/Orange
22
Power DC Positive (Through)
Brown
9
Telemetry (+)
UTP Yellow
23
Power DC Negative (Through)
Blue
10
Telemetry (-)
UTP Blue
24
Aux Power DC Negative
White
11
Earth / Chassis
Green/Yellow Stripe
25
Video 2 (Coax Contact)
Coax 2
12
Ethernet A 1 (PTZ Data)
(Net1 Grey) - Cat5 Brown
26
Power Positive (PTZ) 28VDC
Red
13
Ethernet A 2 (PTZ Data)
(Net1 Grey) - Cat5 White/Brown
27
Power Negative (PTZ) 28VDC
Black
14
Ethernet A 3 (PTZ Data)
Net1 Grey) - Cat5 Green
Indicated conductor colours applicable to CA-MIL38K / CA-JCM cable assemblies.
Available functionality will depend on the installed PT unit and payload configurations.
