Silent Sentinel Jaeger - Side Payload Mounting Connector

JAEGER INSTALLATION GUIDE
Commercial in Confidence 20/26

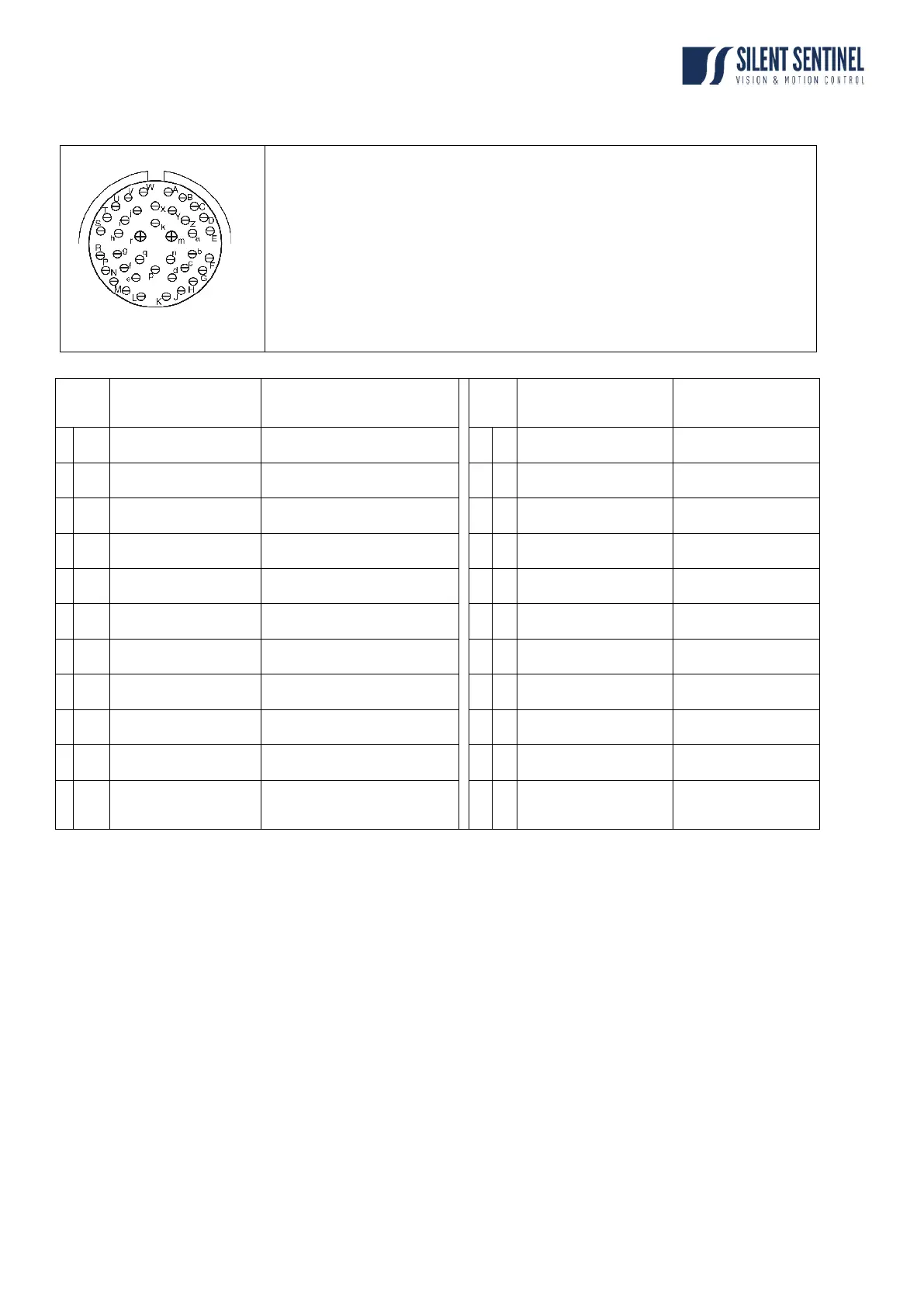

Side Payload Mounting Connector.
MIL-D38999 G39
View in to Socket face.
Amphenol D38999 Series-III / TV.
PTZ Hub Socket: Amphenol D38999/20FG39SN
.
(Connector on payload: Amphenol D38999/26FG39PN – For attached equipment)
Contact arrangement: G39 / 21-99 - [G39T].
Contact “r” is a Coaxial type for Video transmission on HD-SDI models.
(available on limited pan models only).
Block 2
Pin
(G39A)
Function
Note
Pin
Function
Note
A
Power Positive
12VDC (4A)
c
Ethernet 1 (Rx-)
TIA-568B Gn 6
B
Power Negative / Ground
0V (4A)
d
Ethernet 2 (Rx+)
TIA-568B W/Gn 3
C
Serial 1 (D -) (INV)
Ti side Camera (RS485) (P1)
g
Ethernet 3 (Tx-)
TIA-568B Or 2
D
Serial 1 (D+) (NON)
Ti side Camera (RS485) (P1)
h
Ethernet 4 (Tx+)
TIA-568B W/Or 1
K
Serial 4 (D+)
Aux Comms (IP RS485 +)
i
P2 Comm switcher
(Not Fitted)
L
Serial 4 (D -)
Aux Comms (IP RS485 -)
j
Return-video Signal
For IP encoder cameras
S
Serial 2 (TMU Rx)
Day side Lens/Cam (RS232) (P2)
k
Return-video Ground
For IP encoder cameras
T
Serial 2 (TMU Tx)
Day side Lens/Cam (RS232) (P2)
n
Video CVBS Signal
X
Serial 3 (TMU Rx)
Ti side Lens (RS232) (P0)
p
Wiper Trigger
Y
Serial 3 (TMU Tx)
Ti side Lens (RS232) (P0)
q
Video CVBS Ground
r*
Video HD-SDi
Coaxial contact
(Not Fitted to all types)
Contact identity letters are case sensitive.
(* Wide/Coaxial contact)
