12 MOUNTING SHEET FLUES
1- Internal Flue
2- Flue Connection Sheet Fitting Screws
3- Flue Connection Metallic Sheet
4- Flue Lower Fixing Screws
Internal and external sheet flues are inserted to each other.
n Flue connection sheet 3 is held directly on the wall under the
cover by centering the Hood or measured and marked at points
E, F. ().
n Drill points E and F with Ø6mm drill and attach Ø6mm plastic
pins. Attach flue connection sheet with 3.9x22 screws ().
n Pull up to left the Internal Flue (1) using screws (2) and screw it
on the flue connection sheet on the right and left (3) (Fig. 13).
n Fix the exterior flue to the right and left connection sheet at the
rear side of the hood body from the lower side using 2 screws
(Fig. 13).

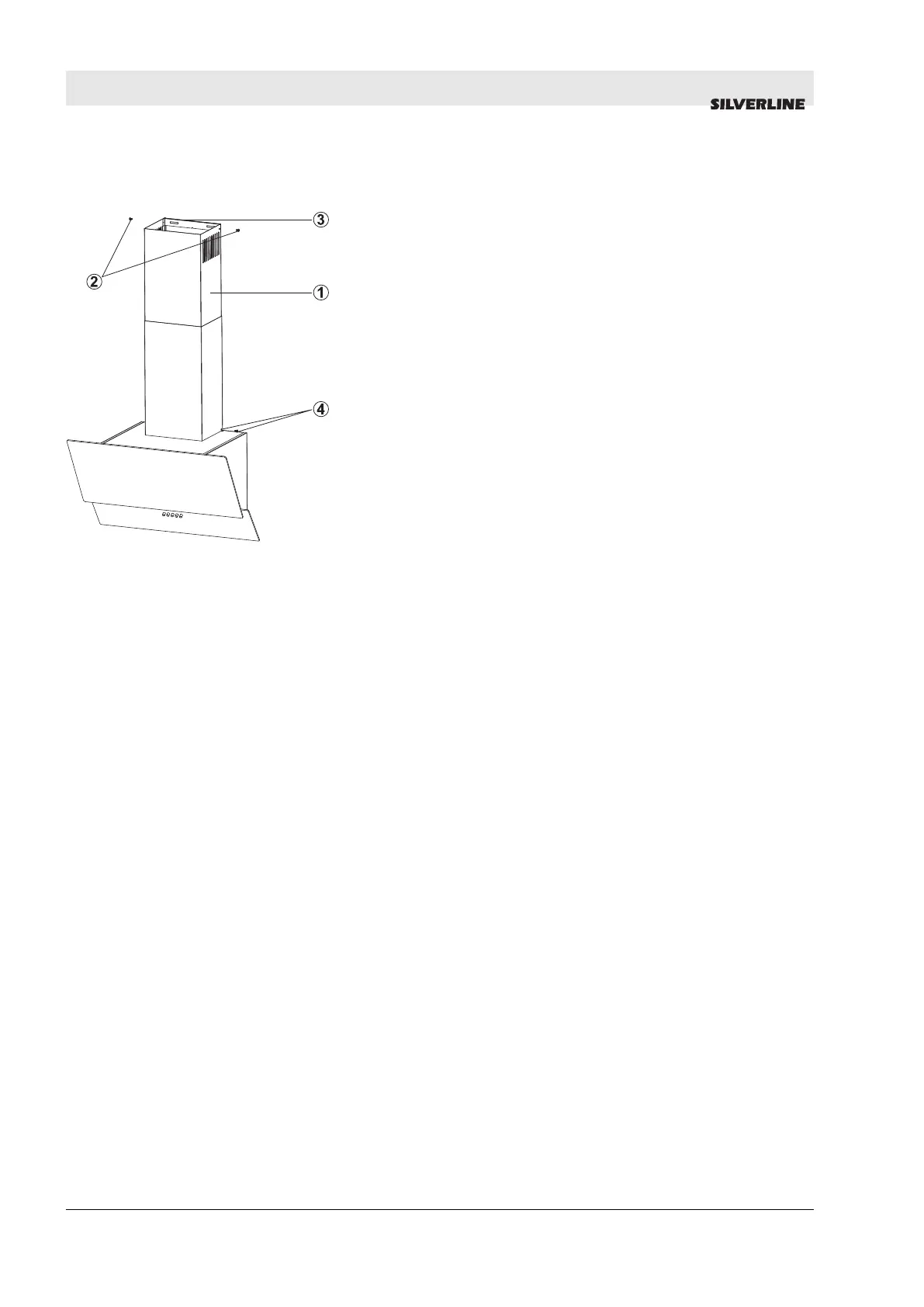

Fig. 13: SAC BACALARIN MONTAJI
MOUNTING SHEET FLUES
