GETTING FAMILIAR-4

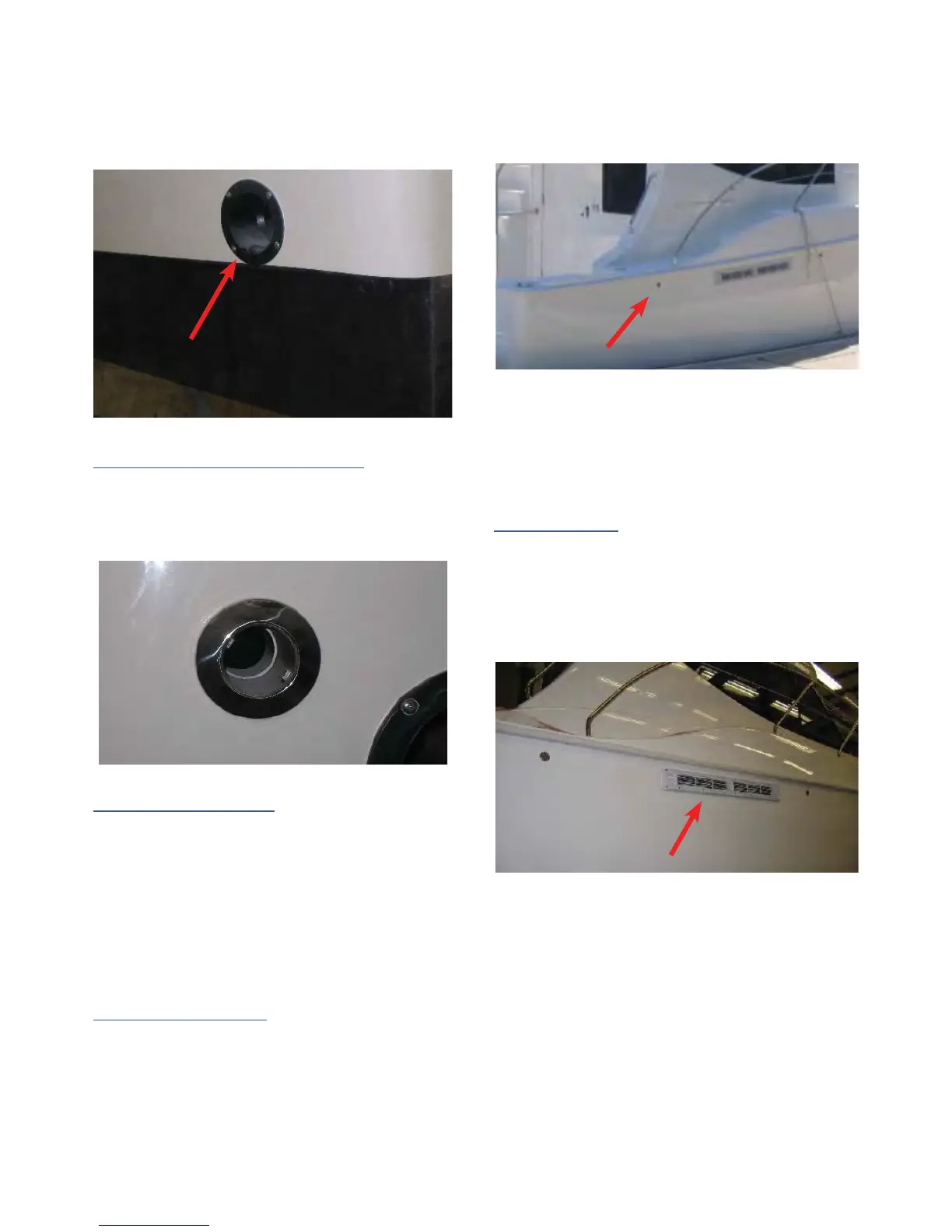

The photograph below displays the port side Engine
Exhaust Port. The Starboard Engine Exhaust Port is
in the identical location on the starboard aft side of
the hull.
GENERATOR EXHAUST PORT
The photograph below displays the Generator Ex-
haust Port. It is located on the starboard aft side of
the hull, aft of the engine exhaust.
DISCHARGE PORTS
The various Discharge Ports (also known as thru-hull
ports) are located on the starboard and port sides of
the Hull.
Refer to the Thru-Hull Schematic Drawings in the
SCHEMATICS SECTION of this manual.
FUEL TANK VENTS
The photograph in the top, right-hand corner of this
page displays the Starboard Fuel Tank Vent as
shown on the starboard side of the hull. The Port Fuel
Tank Vent is located in the identical location on the
port side of the hull.
Note: Please refer to the Thru-Hull Location Schemat-
ics in the SCHEMATICS SECTION of this Owner’s
Manual.
BILGE VENTS
Your 33C has ventilation vents from the Engine Room.
The amount of venting and the location depends upon
the engine confi guration of your 33C. There are large
vents located on both sides of the hull. The photo below
shows the Starboard Engine Room Vent.
The Bilge Ventilation System pages in the Operations
Systems Section of this manual discusses the ventila-
tion system. Be certain to read and have a thorough
understanding of this section. It contains important in-
formation concerning the safe operation of your yacht.
The photograph above displays the Engine Room Vent
and Blower Vent on the starboard side of your yacht.
There is also a vent on the port side of the boat.
