o Last Updated: Duration that has passed in seconds since last update.

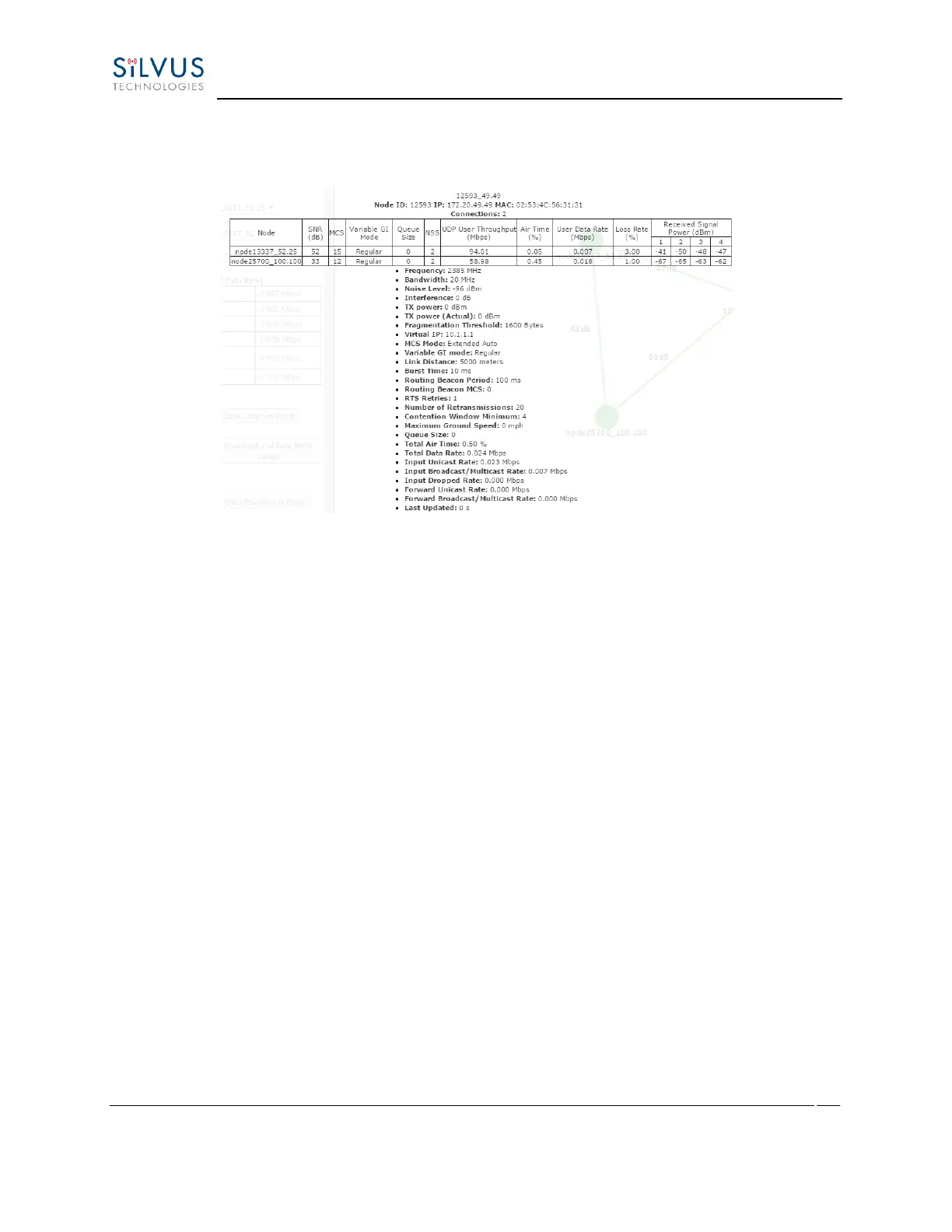

Figure 59 Individual Node Characteristics
• Link Characteristics – By simply rolling the mouse over any link in the network, users can view key
operating characteristics of that link. Figure 60 Link Characteristics shows an example of this for
the link between ‘node25700’ and ‘node12593’. The characteristics shown are:
o SNR: The SNR of the link in each direction.
o MCS: The MCS used to transfer data in each direction.
o UDP User Throughput: The estimated UDP User Throughput available for each direction
of the link. This is estimated based on the current MCS used for transmission.
o Queue Size: Number of packets in TX Queue in each direction.
o NSS: Number of Spatial Streams in each direction.
o Air Time: Percentage of air time used in each direction
