StreamCaster MIMO Radio User Manual 4/30/19
10017C000 Silvus Technologies Confidential Page
18
SC4200E

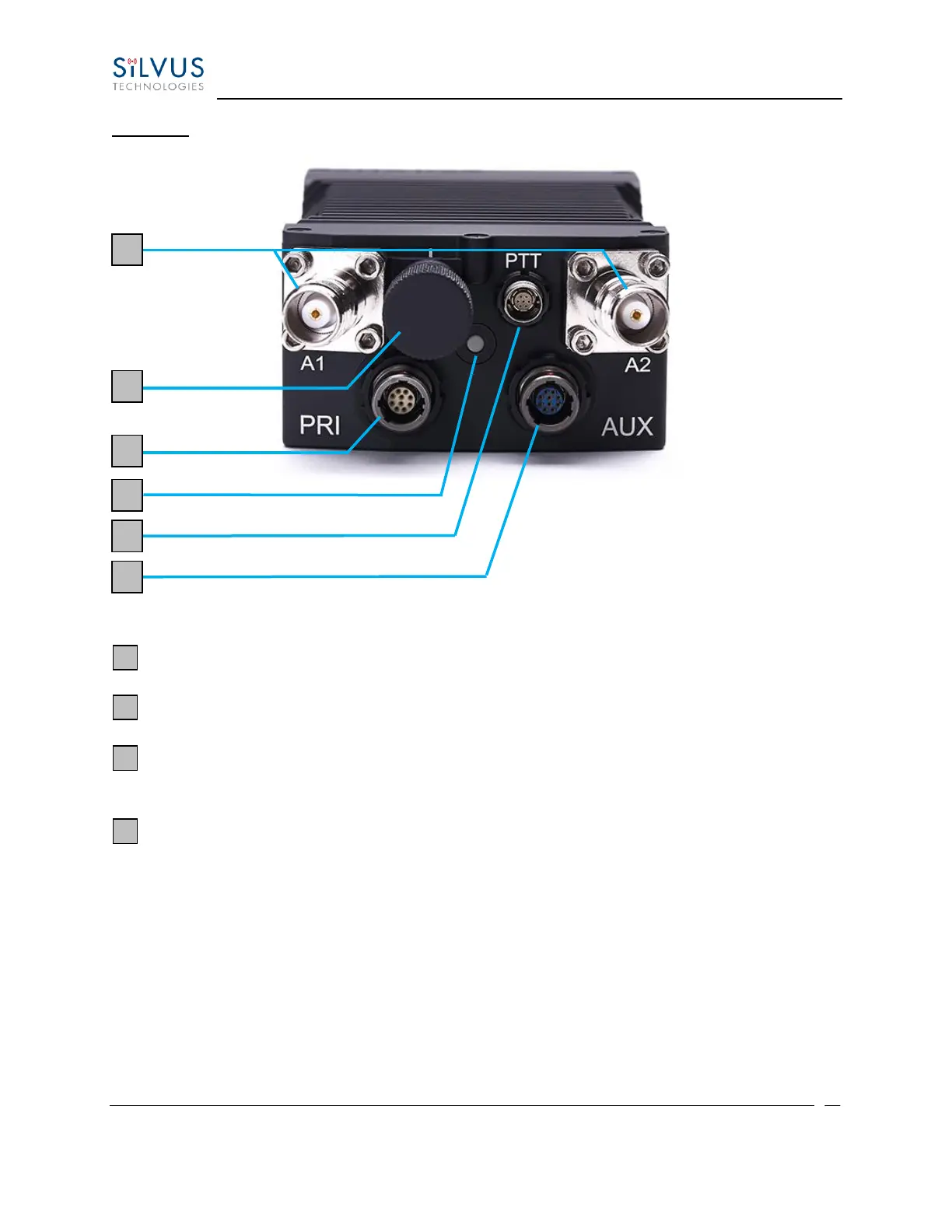

Figure 3 StreamCaster 4200E Ruggedized Enclosure
RF Channels 1-2 Connectors [TNC Female]
Power Switch [15-Position Rotating]
Power (EB Version Only, 9-20V), Ethernet, and Serial Port Connector [ODU GK0YAR-
P10UC00-000L]
Bi-Color Status LED (See Section 12.1 for Troubleshooting Information)
• Red – Radio is in the process of booting up
• Flashing Green – Radio is fully booted but not wirelessly connected to any other
radio
• Green – Radio is wirelessly connected to at least one other radio
• Flashing Red – Spectrum Scan in Progress
• Flashing Red – Radio has recovered from a bad state and has reverted to factory
default settings.
1
2
3
4
1
2
3
4
5
6
