4. StreamCaster Hardware Overview
4.1 Hardware Interfaces
SC4400E

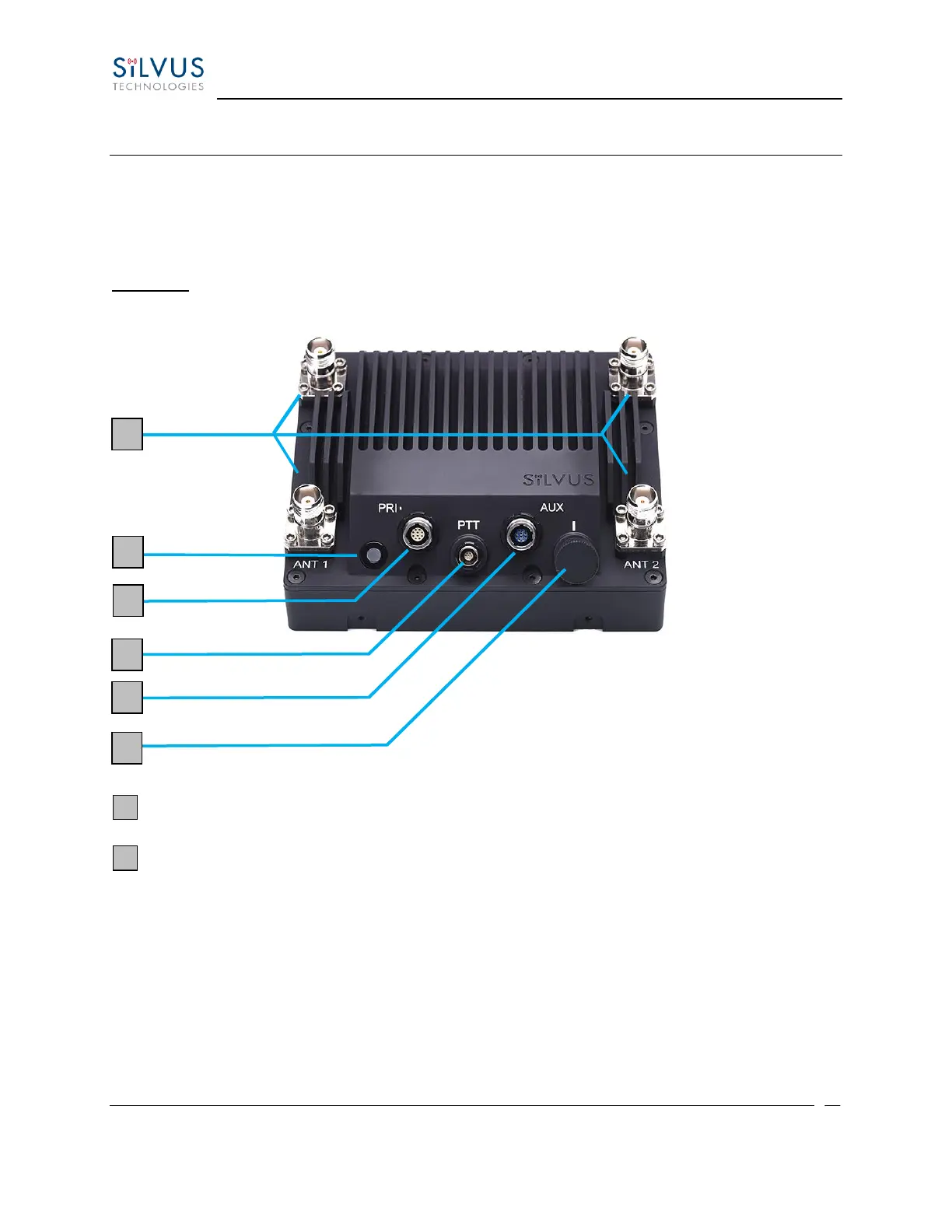

Figure 2 StreamCaster 4400E Ruggedized Enclosure
RF Channels 1-4 Connectors [TNC Female]
Bi-Color Status LED (See Section 12.1 for Troubleshooting Information)
• Red – Radio is in the process of booting up
• Flashing Green – Radio is fully booted but not wirelessly connected to any other
radio
• Green – Radio is wirelessly connected to at least one other radio
• Flashing Red – Spectrum Scan in Progress
• Flashing Red – Radio has recovered from a bad state and has reverted to factory
default settings.
