Smart Machine Smart Decision
SIM7600E_SIM7600E-H-PCIE_Hardware_Design_V1.00 15 2017-11-23
3.3 Package Dimensions

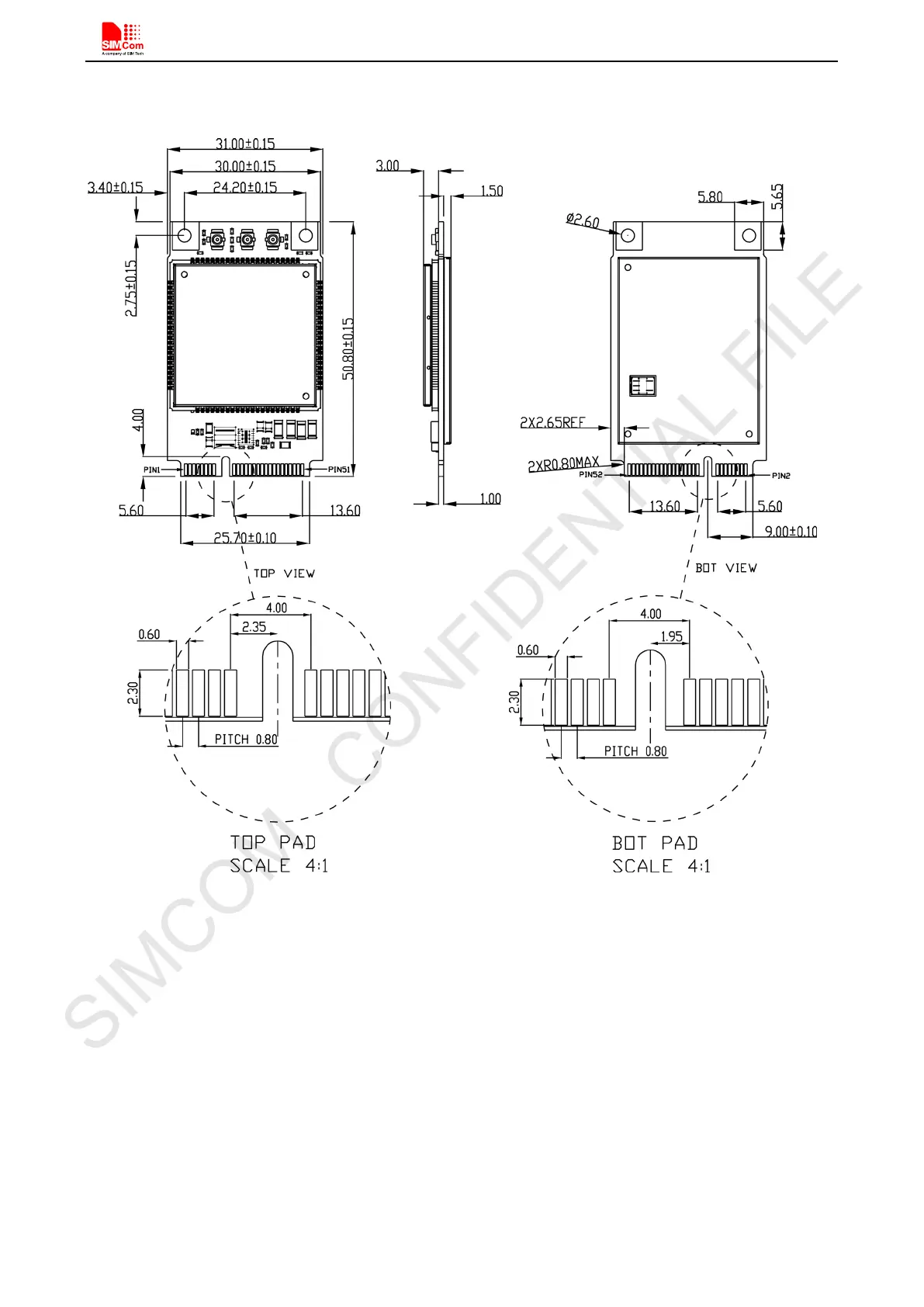

Figure 3: Dimensions of SIM7600E-PCIE (Unit: mm)
SIMCOM CONFIDENTIAL FILE

Table of Contents

Question and Answer IconNeed help?

Do you have a question about the SIM Tech SIMCom SIM7600E-H-PCIE and is the answer not in the manual?

SIM Tech SIMCom SIM7600E-H-PCIE Specifications

General IconGeneral
CategoryControl Unit
ManufacturerSIMCom
ModelSIM7600E-H-PCIE
Module TypeLTE Cat 4 Module
Network StandardLTE/WCDMA/GSM
LTE CategoryCat 4
WCDMA Frequency BandsB1/B5/B8
Operating Temperature-40°C to +85°C
Storage Temperature-45°C to +90°C
Form FactorPCIe
ChipsetQualcomm
LTE Frequency BandsB1/B3/B5/B7/B8/B20
GSM Frequency Bands850/900/1800/1900
GNSSGPS/GLONASS/BeiDou
InterfaceUSB 2.0, UART
Operating Voltage3.3V
Weight10g
CertificationsCE, FCC, RoHS
Data Rate LTE150 Mbps DL / 50 Mbps UL
Dimensions30.0*51.0*4.9mm
