Figure 5 below shows a hook up showing only two input sources. Be sure you use either S-Video or
composite video inputs, but not both on the same input. The one SVS-4 output goes to the TV so you
can watch and listen on your TV. The second output (audio only) goes to the stereo receiver so you can
listen to music or surround sound audio using your stereo receiver.

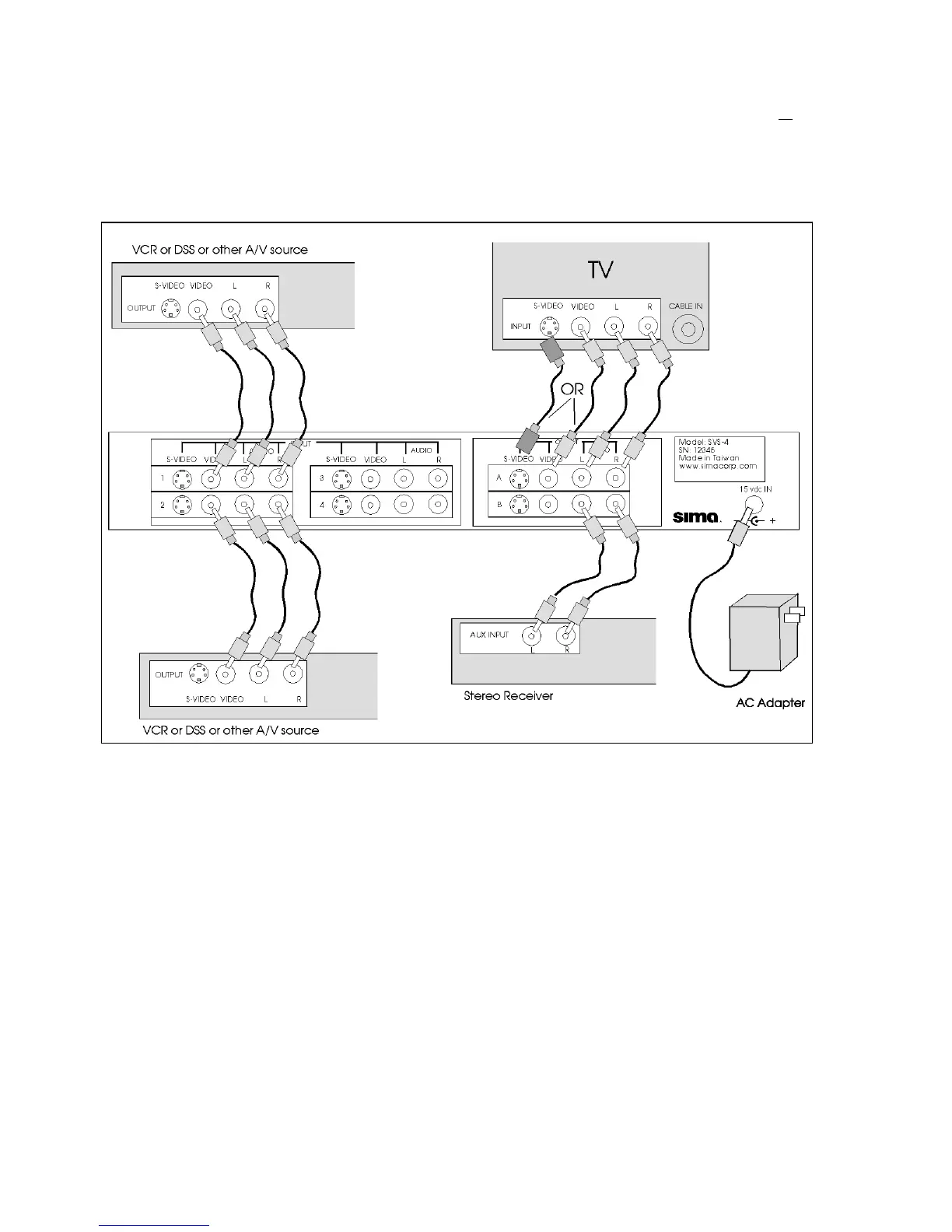

Figure 5, Hook-up in typically system
Note: Remember to always connect the outputs on your VCR/DSS/DVD/etc. to the
inputs on the SVS-4. Likewise, connect the outputs on the SVS-4 to the inputs on the
TV/VCR/Receiver/etc..
Note: If you have one or more devices that are not stereo and have a single audio
output you have two options: 1) Use just the left connector for the audio of that
source; or 2) the better solution is to use a “Y” adapter (available from any electronics
store) to spilt the mono signal into two signals that you feed into both the Left and
Right inputs on the SVS-4.
