2. Level the Storage Bin Assy in both the left to
right and front to rear directions by means of the
adjustable legs.
3. On R 155 and R 250 Storage Bin
inspect its top mounting gasket which should be
flat with no wrinkles, to provide a good sealing
when the RP 155/250 Top Cover is installed on top
of it.
4. Place the RP 250/155 Top Cover on top of
Storage bin using care not to wrinkle or tear the
gasket.
5. On the B 1025 S and B 1350 S Storage
Bin unloose the screws securing the S.S. Top
Cover to the storage bin and remove it.
6. Lay out on the bin top the plan of the ice
machine as it will be located on the bin and cut an
opening in the bin top for the ice drop area; cover
the edges of the opening with vinyl tape.
7. Install the gasket-on the bin top-around ice
drop opening of the bin top; apply sealant along
the inside of the gasket.
8. Position and install the four aluminium front
to rear stiffeners (U shaped) paying attention to
the guideline shown on the drawing.
NOTE. Bin wall gasket must be cut to clear
the stiffener ends as shown on drawing.
Do not put any stiffeners crossing the ice
drop opening.
9. Install the bin top in its position onto the bin
top by:
- place the rear side of top against rear edge
of the bin
- lower the front of the top onto the stiffeners
- re-fit the screws previously removed as
per step 5
10. Install the Modular Flaker or Superflaker
onto the Top Cover of storage bin pay attention
to match the ice chute with the Bin Top opening.
Installation of lift door catch (B 1025 S)
On the Storage Bin B 1025 S when the ice maker
is installed flush with the bin front it is required to
mount the lift door catch as detailed herebelow.
RP 250/155 Top Cover
1. Follow the steps 1 and 2 above to unpack
the storage bin.
2. a) Cut and remove the plastic strip securing
the carton box to the skid.
b) Cut the carton box and pull out the
RP 250/155 Top Cover.
C. LOCATION AND LEVELLING
WARNING. This Modular Flaker and
Superflaker is designed for indoor
installation only. Extended periods of
operation at temperature exceeding the
following limitations will constitute
misuse under the terms of the SIMAG
Manufacturer’s Limited Warranty resulting
in LOSS of warranty coverage.
1. Position the storage bin in the selected
permanent location.
Criteria for selection of location include:
a) Minimum room temperature 10°C (50°F)
and maximum room temperature 40°C (100°F).
b) Water inlet temperatures: minimum 5°C
(40°F) and maximum 35°C (90°F).
c) Well ventilated location for air cooled
models (clean the air cooled condenser at
frequent intervals).
d) Service access: adequate space must
be left for all service connections through the rear
of the ice maker. A minimum clearance of 15 cm
(6") must be left at the sides of the unit for routing
cooling air drawn into and exhausted out of the
compartment to maintain proper condensing
operation of air cooled models.

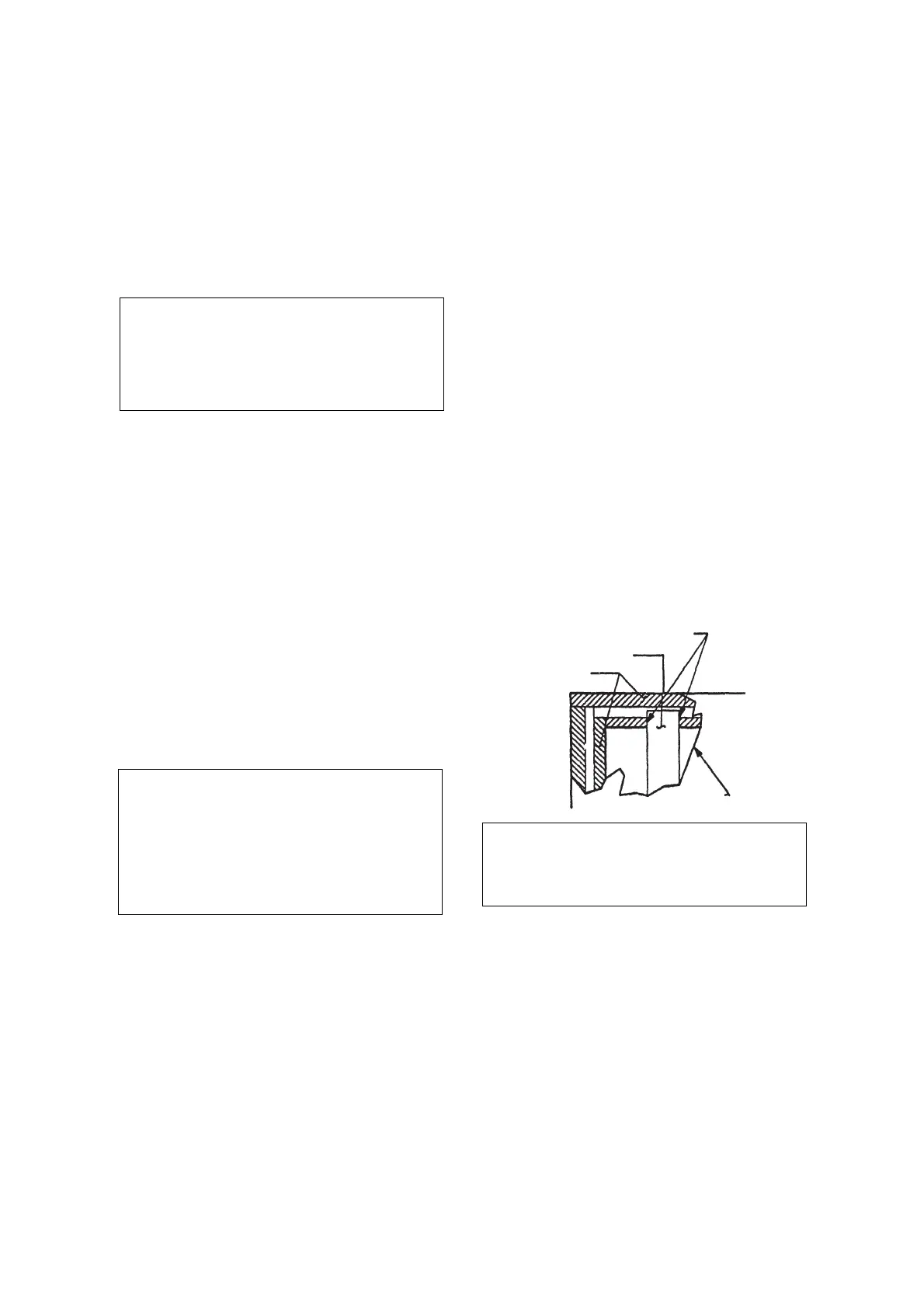

STIFFENER
CUT GASKET HERE
BIN WALL GAKET
TOP SHELL
