smart mounting
®
28 Induction Heater IH 070/090 © simatec ag

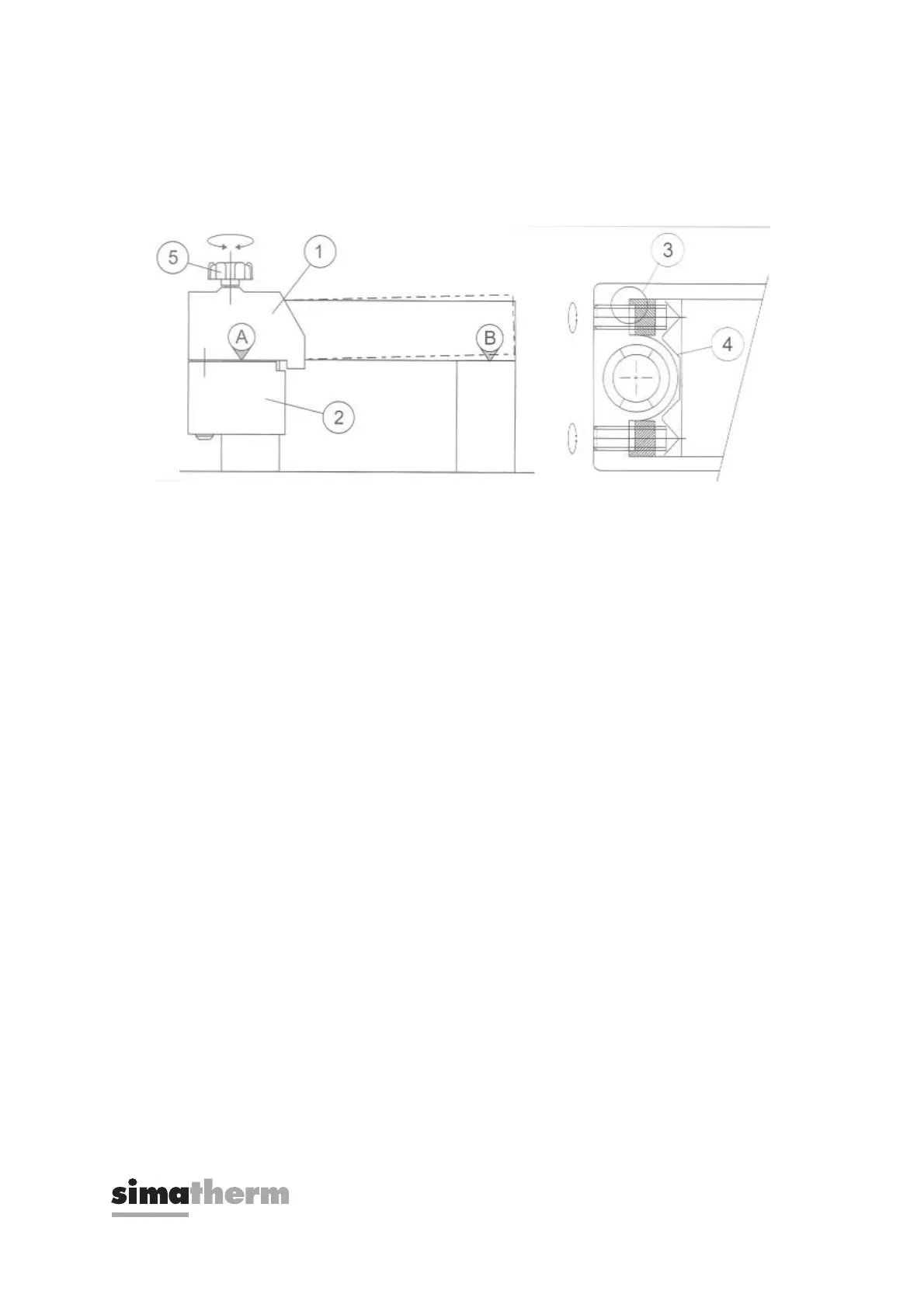

• For the IH 090 only, follow these steps to install the swivel arm:
- Attach the protection plate (4) to the side post to prevent damage.
- Install the swivel head (1) and the swivel body (2) on the lefthand
side post of the heater.
- Install the large top yoke (55 x 55mm) in the swivel head.
Adjust the swivel body so that there is no visible gap (A)
between the side post and the yoke.
- Tighten the four screws (3) of the swivel body (maximum
torque 5Nm).
- Turn the screw (5) on top of the swivel head to position the top
yoke. The top yoke must contact as much of the upper surface
of the right-hand side post (B) as possible. Noise during
operation could indicate that the top yoke is not positioned
properly.
• Special notes for the IH 090:
- The yoke support is required when either of the smaller yokes
(28 x 28mm or 14 x 14mm) is installed. Install the yoke
support and the yoke together in the swivel head. If necessary,
rotate the swivel head to provide better access.
4 Preparation for use
• Place the IH 070/090 in the horizontal position on a
stable surface.
• Connect the mains plug to a suitable mains supply.
