Simba X-Press - Page 107

107X-Press
Operating Instructions
7.PartsandAssembly

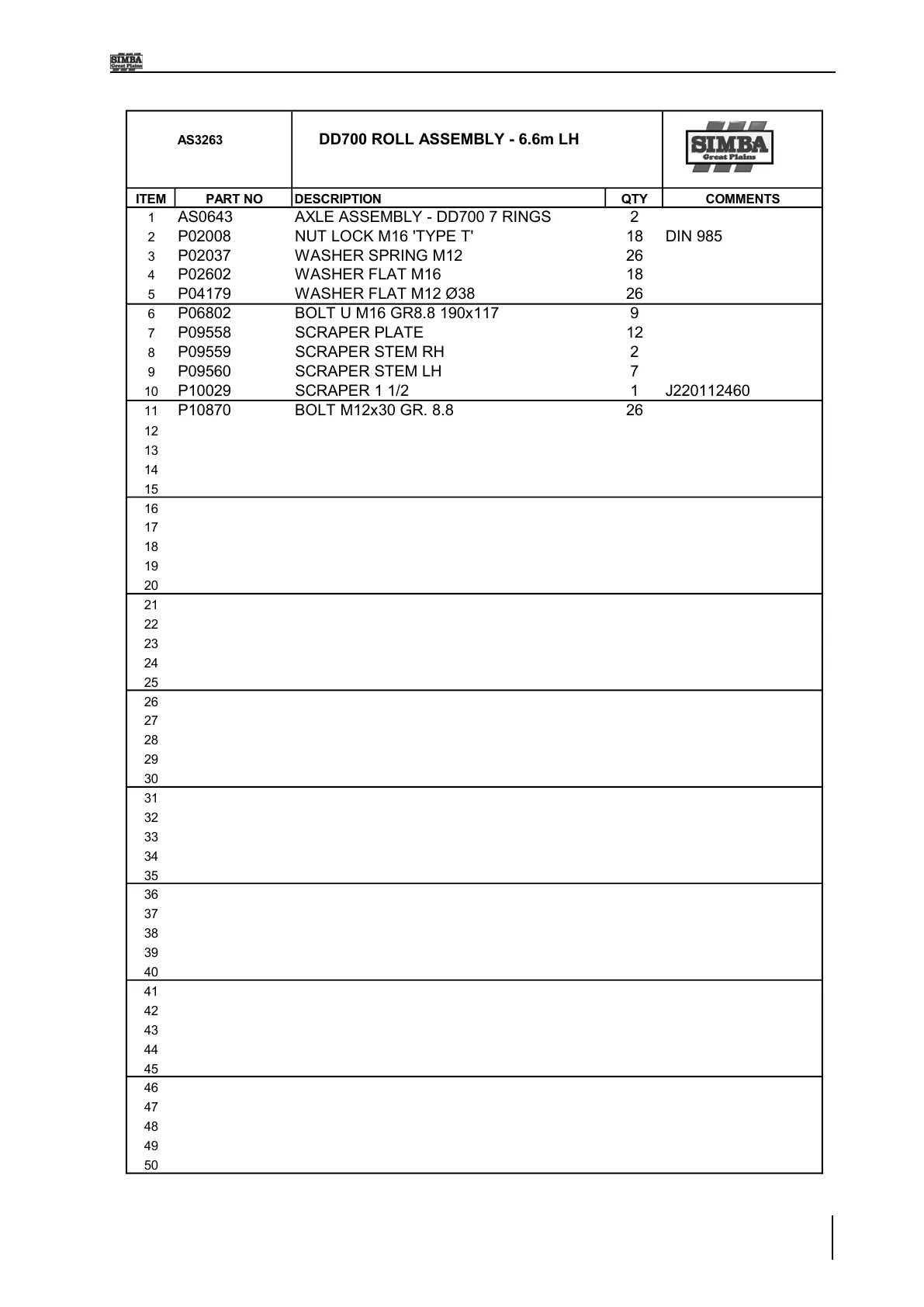

AS3263 DD700 ROLL ASSEMBLY - 6.6m LH
ITEM PART NO DESCRIPTION QTY COMMENTS
1
AS0643 AXLE ASSEMBLY - DD700 7 RINGS 2
2 P02008 NUT LOCK M16 'TYPE T' 18 DIN 985
3 P02037 WASHER SPRING M12 26
4 P02602 WASHER FLAT M16 18
5 P04179 WASHER FLAT M12 Ø38 26
6 P06802 BOLT U M16 GR8.8 190x117 9
7 P09558 SCRAPER PLATE 12
8 P09559 SCRAPER STEM RH 2
9 P09560 SCRAPER STEM LH 7
10 P10029 SCRAPER 1 1/2 1 J220112460
11 P10870 BOLT M12x30 GR. 8.8 26
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
