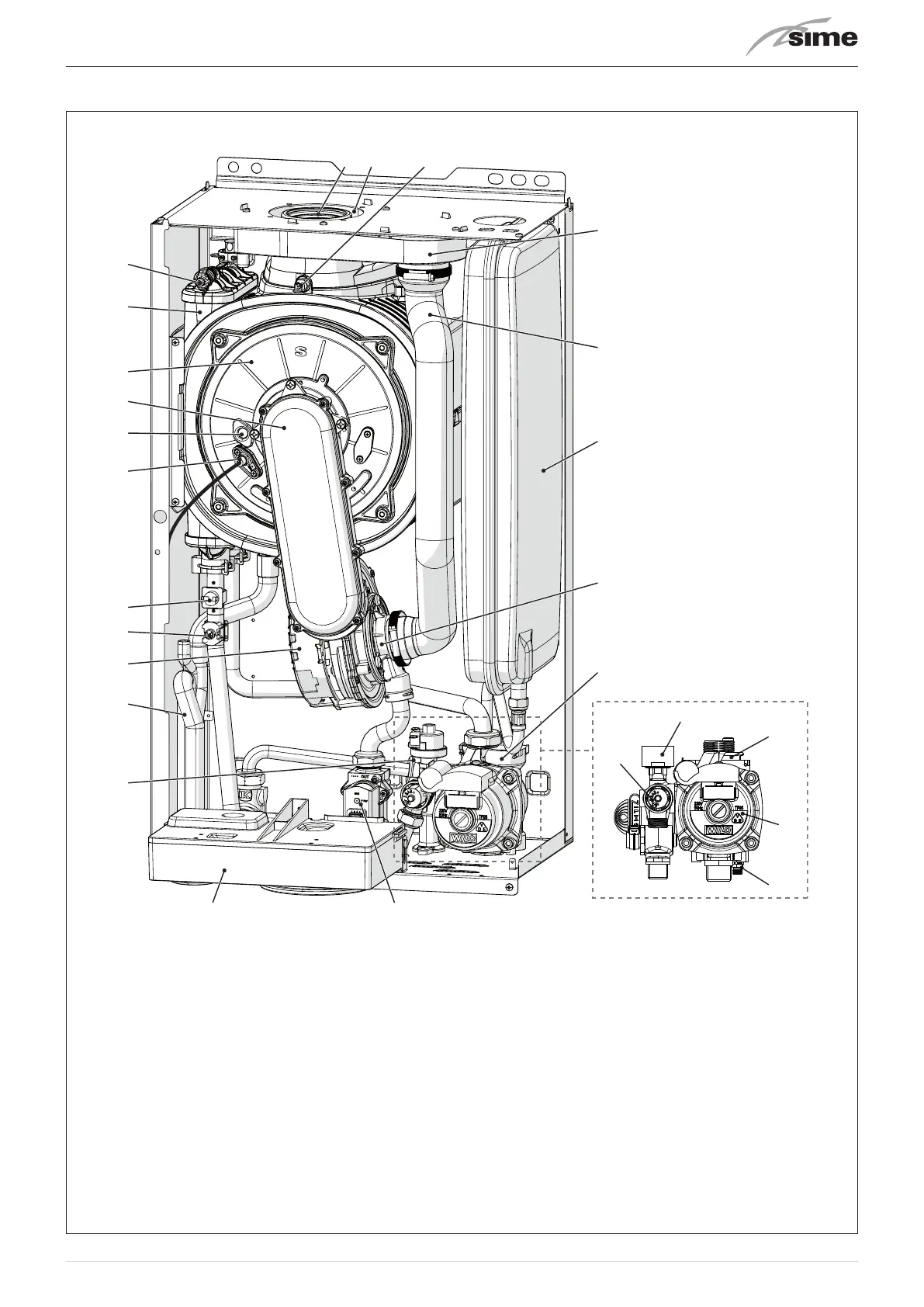

7.4 Structure
7.4.1 Brava Slim HE 20 R i - Brava Slim HE 40 R i
1
2
3
4
5
7
10
8
9
6
12 13
15
18
17
16
14
18
19
20
21
22
232425
11
1 Heat exchanger bleed point
2 Heat exchanger
3 Combustion chamber door
4 Oversleeve
5 Flame viewing window
6 Ignition/detection electrode
7 Heat safety thermostat
8 Delivery sensor
9 Fan
10 Condensate siphon
11 Automatic by-pass
12 Control panel
13 Gas valve
14 System relief valve
15 Boiler drain
16 System pump
17 Water pressure transducer
18 Automatic bleed valve
19 Air-gas mixer
20 Expansion vessel
21 Air inlet pipe
22 Air-smoke chamber
23 Smoke flue gas probe
24 Air inlet
25 Smoke outlet
Fig. 10
