13.5 Remove/replace combustion head unit and
fan
– Remove front panel (see "Remove panels" on page 48)
– disconnect the fan connectors (1)
– remove the clip (2) and air inlet pipe
– unscrew the swivel joint (3)
2
1
3

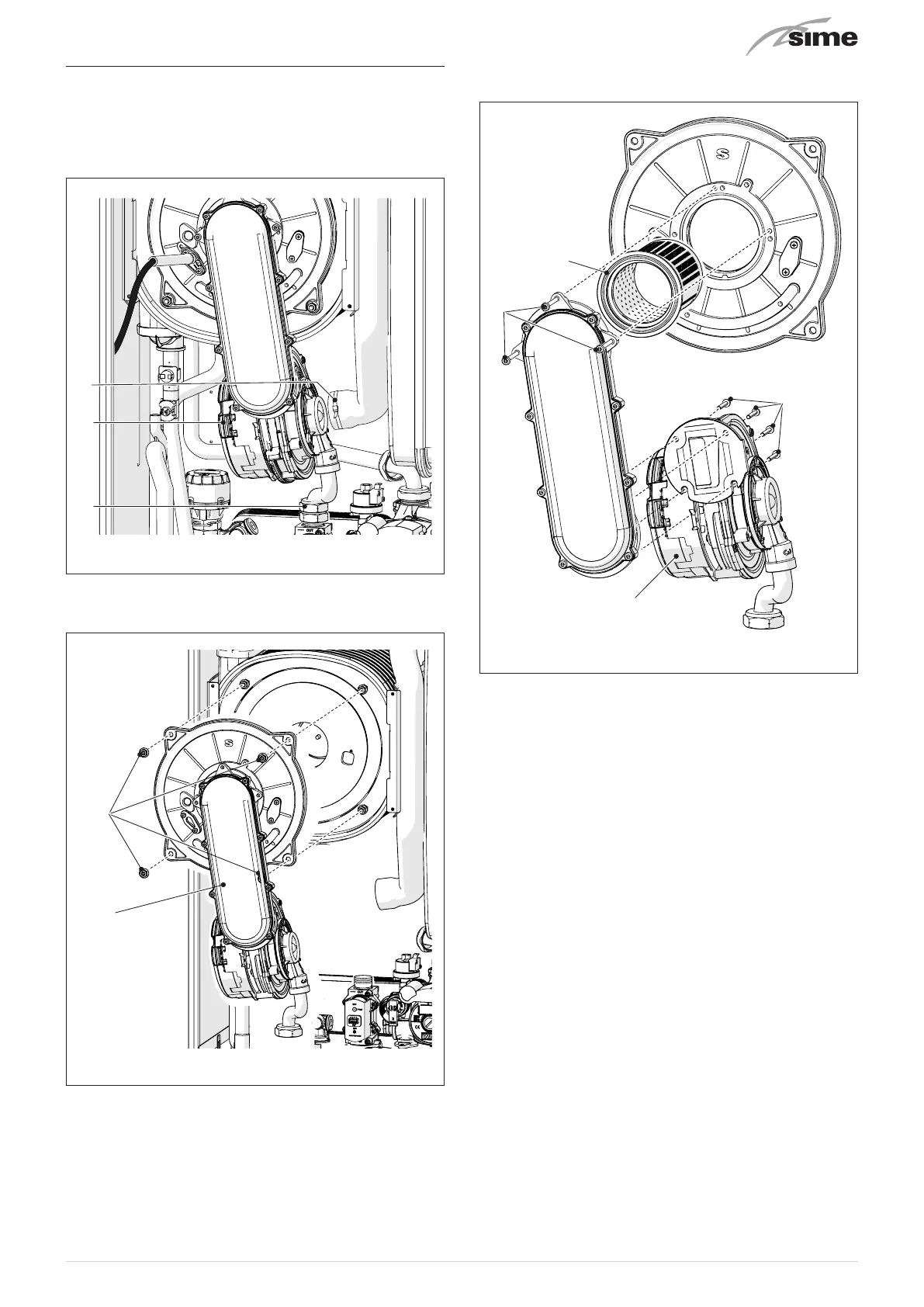

Fig. 66
– unscrew the nuts (4)
– remove combustion head unit/conveyor/fan (5)
4
5
Fig. 67
– unscrew the screws (6) and unthread the combustion head (7)
– unscrew the screws (8) and remove the fan (9)
6
7
8
9
Fig. 68
