Sime LAGO EV - Installation; Magnesium Anode; Wall Mounting

45
EN

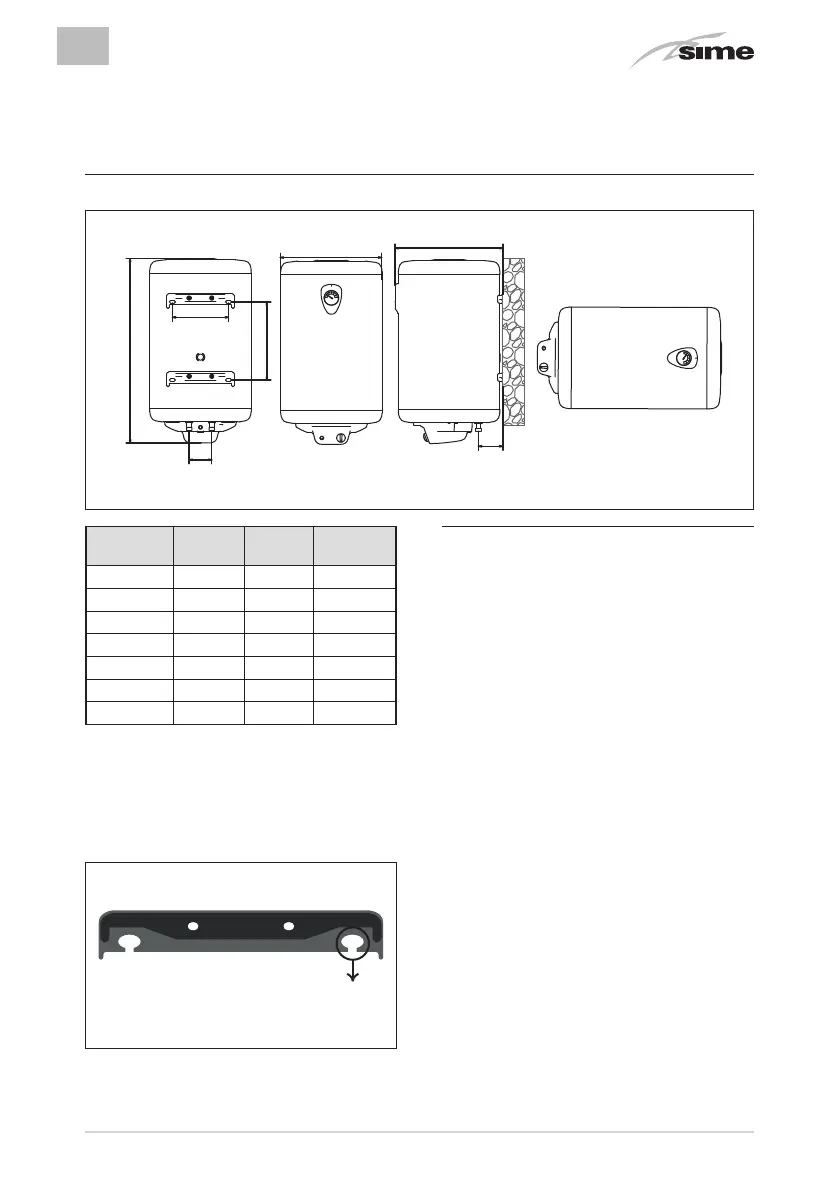

CAPACITY
50
LITRES
80
LITRES
100
LITRES
A 592 817 978
B 169 385 554
C 249 249 249
D 100 100 100
E 450 450 450
F 477 477 477
G 108 108 108
After checking that the wall is able to
bear the 2 anchors (supplied with the
appliance), make sure that they are
attached securely. (See Fig 3).
WALL BRACKET
HANGING SCREW>=8mm.
Fig. 17
A
B
D
C
Vertical
Horizontal
G
F
E
Fig. 16
3.2 Magnesium anode
The magnesium anode inside the tank,
together with the porcelain treatment
of the tank, guarantees a long life for
the same.
3 INSTALLATION:
(BY QUALIFIED PERSONNEL ONLY)
3.1 Wall mounting
