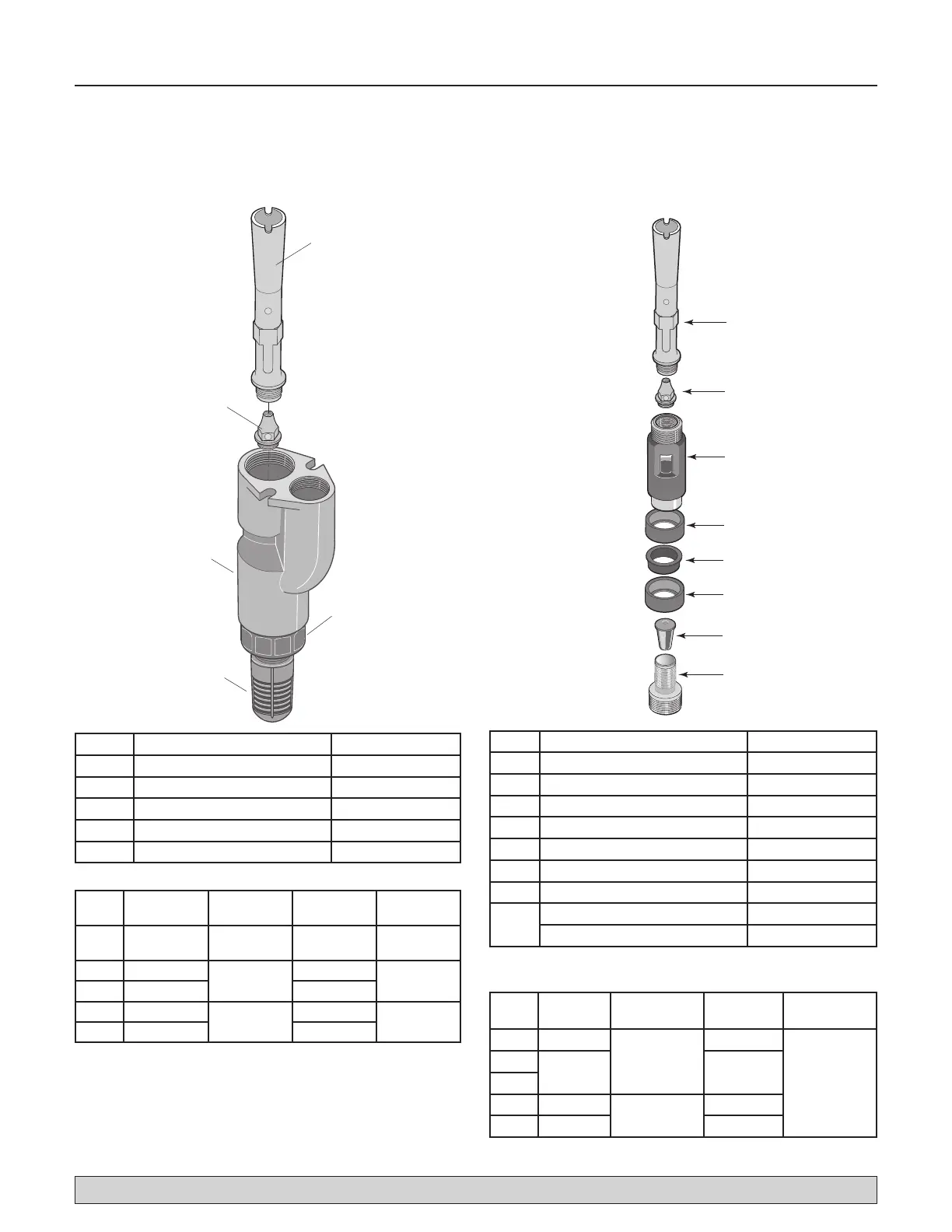

Simer 3307P - Repair Parts Identification; Deep Well Ejector Kit FP4800 Parts; 2 Single Pipe Deep Well Ejector Kit FP4840 Parts

Repair Parts 16
For parts or assistance, call Simer Customer Service at 1-800-468-7867
41
JET NO.
J32P-
24
1
2
3
5
4
1927 0895
Ref. Description Part Number
1 Ejector Body N40-92
2 Nozzle See below
3 Venturi See below
4 Check Valve N212-12P
5 Strainer L8-1P
Nozzle/Venturi Combinations (Kit FP4800)
Model
Depth Less
Than
Use Nozzle/
Venturi
Depth Less
Than
Use Nozzle/
Venturi
3305P 50’ (15.2 m)
J34P-41 (#51) /
J32P-24
70’ (21.3m)
J34P-42 (#52) /
J32P-18
3307P 70’ (21.3 m)
J34P-43 (#53) /
J32P-24
100’ (30.5m)
N. A.
3310P 90’ (27.4 m) N. A.
3325E 50’ (15.2 m)
J34P-41 (#51) /
J32P-24
70’ (21.3 m)
J34P-42 (#52) /
J32P-18
3327E 70’ (21.3 m) 100’ (30.5 m)
NOTICE: If the depth to water in your well is more than the distance listed
in the Depth column (for your pump), you MUST use the nozzle/venturi
combination listed or your pump will not be able to lift water from the well.
Nozzle/Venturi Combinations (Kit FP4840)
Model
Depth Less
Than
Use Nozzle/
Venturi
Depth Less
Than
Use Nozzle/
Venturi
3305P 50’ (15.2 m)
J34P-42 (#52) /
J32P-24
70’ (21.3 m)
J34P-42 (#52) /
J32P-18
3307P
70’ (21.3 m) 100’ (30.5 m)
3310P
3325E 40’ (12.3 m)
J34P-44 (#54) /
J32P-24
70’ (21.3 m)
3327E 60’ (18.3 m) 100’ (30.5 m)
4” Double Pipe Kit
Kit FP4800
Deep Well Installation
4
1
JET NO.
J32P-
24
1
2
3
4
5
4
6
7
1359 1204
Ref. Description Part Number
1 Venturi See below
2 Nozzle See below
3 Jet Body J40-24
4 Cup Leather (2) J57-1
5 Spacer J43-14P
6 Check Valve P122-10B
7 Valve Seat J66-13
*
Casing Adapter J216-44
Turned Couplings 1-1/4 NPT U11-1
* Not illustrated.
2” Single Pipe Kit
Kit FP4840
