Simer 3415P - Page 10

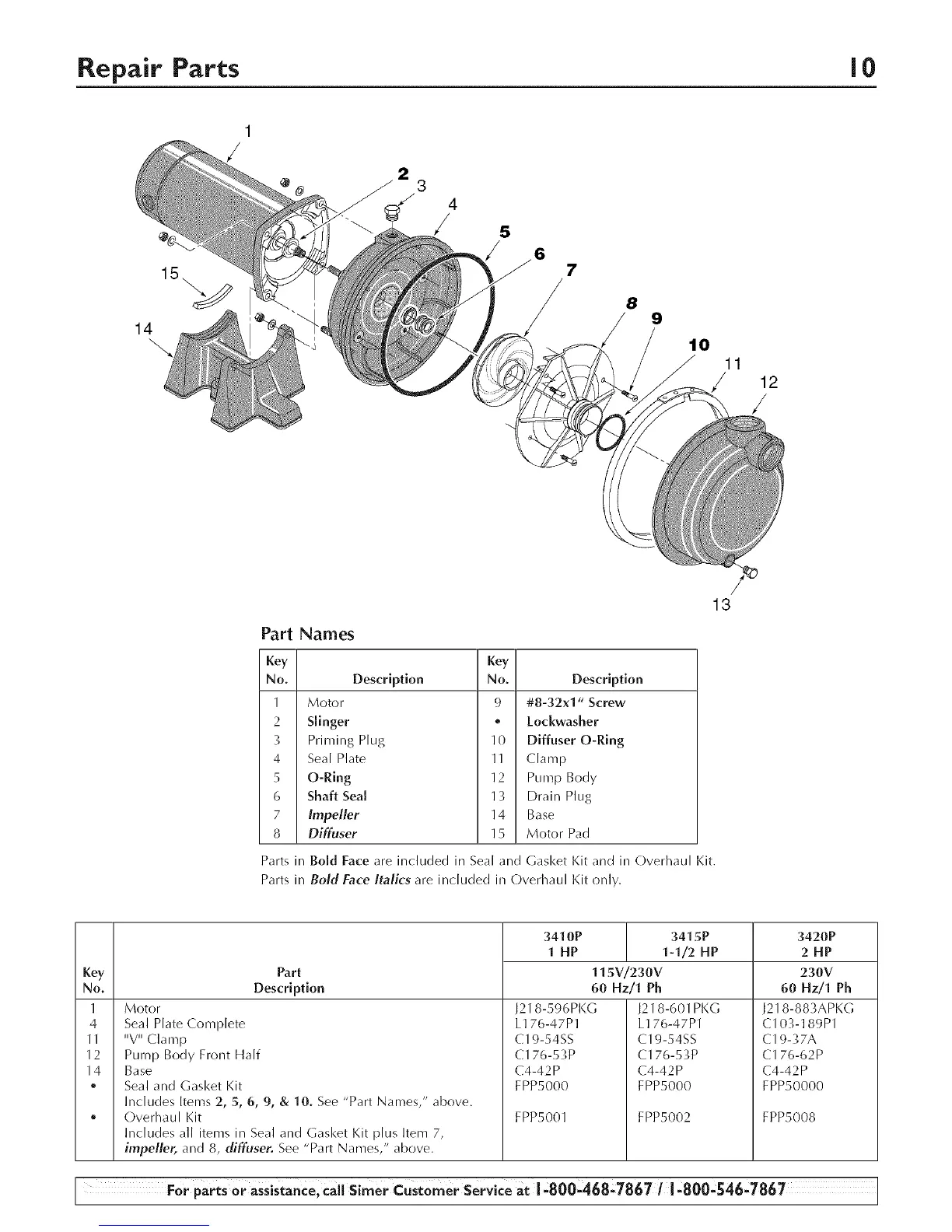

Repair Parts I 0
14
2
3
4
/
5
6
8
9
10
11
12
/
Part Names
Key Key
No. Description No. Description
1 Motor 9 #8-32xl" Screw
2 Slinger • Lockwasher
_g Priming Plug 10 Diffuser O-Ring
4 Seal Plate 11 Clamp
5 O-Ring 12 Pump Body
6 Shaft Sea[ 13 Drain Plug
7 Impeller 14 Base
8 Diffuser 15 Motor Pad
Parts in Bold Face are included in Seal and Gasket Kit and in Overhaul Kit.
Parts in Bold Face Italics are included in Overhaul Kit only.
13
Key Part
No. Description
1 Motor
4 Seal Plate Complete
11 "V" Clamp
12 Pump Body Front Half
14 Base
* Seal and Gasket Kit
Includes Items 2, 5, 6, 9, & 10. See "Part Names," above.
, Overhaul Kit
Includes all items in Seal and Gasket Kit plus Item 7,
impeller, and 8, diffuser. See "Part Names," above.
J218-596PKG
L1 76-47P1
C19-54SS
C1 76-53P
C4-42 P
FPP5000
3410P 3415P
1 HP 1-1/2 HP
115V/23OV
60 Hz/1 Ph
J2"l 8-60"1PKG
L1 76-47P1
C19-54SS
C176-53P
C4-42P
FPP5000
FPP5001 FPP5002
3420P
2 HP
230V
60 Hz/1Ph
J218-883APKG
C103-189P1
C19-37A
C176-62P
C4-42P
FPP50000
FPP5008
I For parts or asslstance'call $imer CUstomer Serviceat 1'800-468-7867 ! 1-800.546'7867 I
