Simmons SD5K - Rear Panel Connections

User’s Manual
Digital Drum Kit

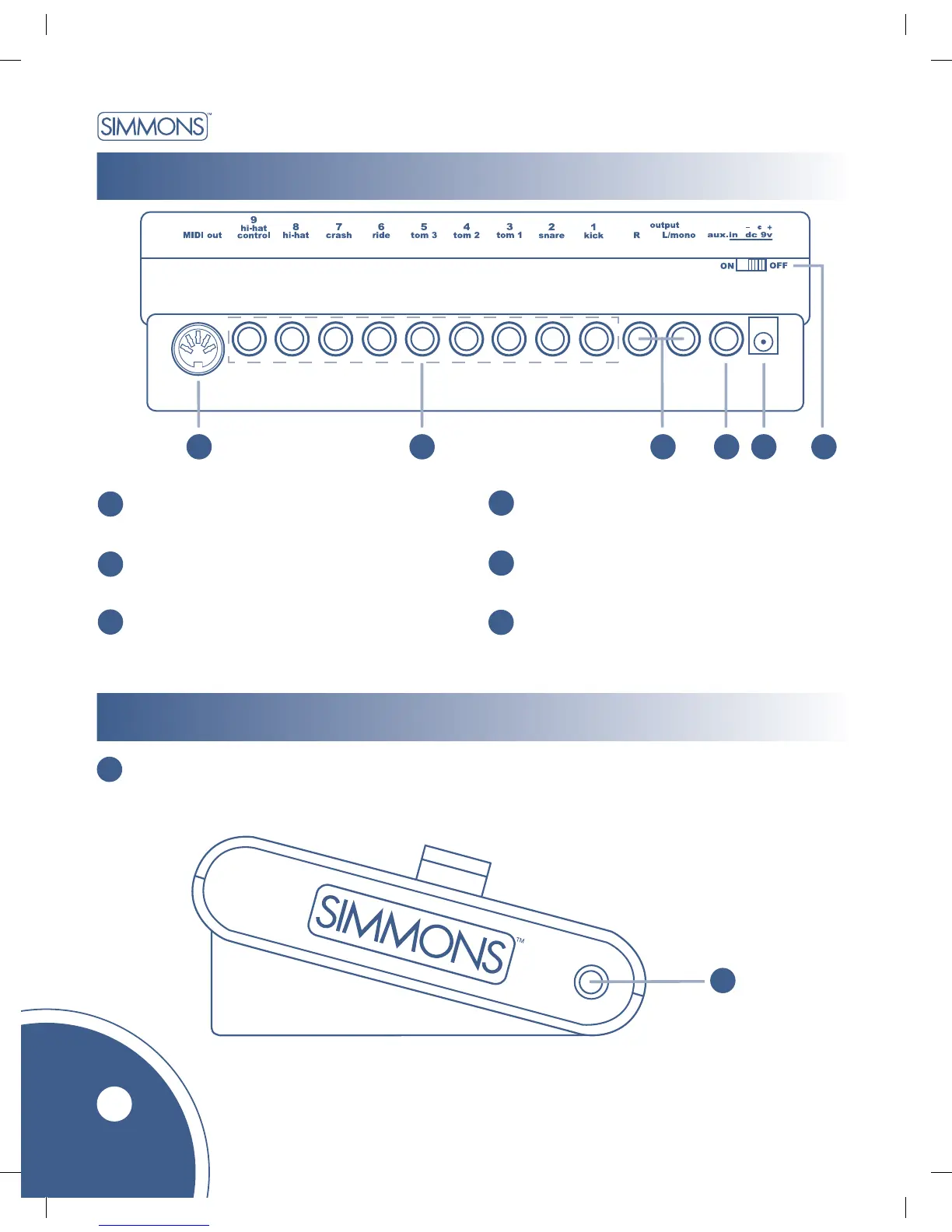

Rear Panel
Side Panel
4
MIDI Out Jack
Connection for an external sound module.
14
15
16
Trigger Input Jacks
Connections for pads, cymbals, hi-hat control, kick trigger.
Output Jacks (R, L/mono)
Connection for an amplifier or audio system. For single
output use the L/mono jack.
Aux.in Jack
TRS connection for an external sound source.
17
18
19
Power Supply Jack (DC 9V)
Connects AC adapter.
Power Switch
Turns power on/off.
20
20 Phones Jack
Connection for stereo headphones. (Connecting headphones will not mute output jacks.)
14 15 16 17 18 19
20
