connections
Pads and Pedals
5
CAUTION!
To avoid damage, turn OFF the SD5K’s power switch and all related devices
prior to connecting or disconnecting cables.
Pads and Pedal:

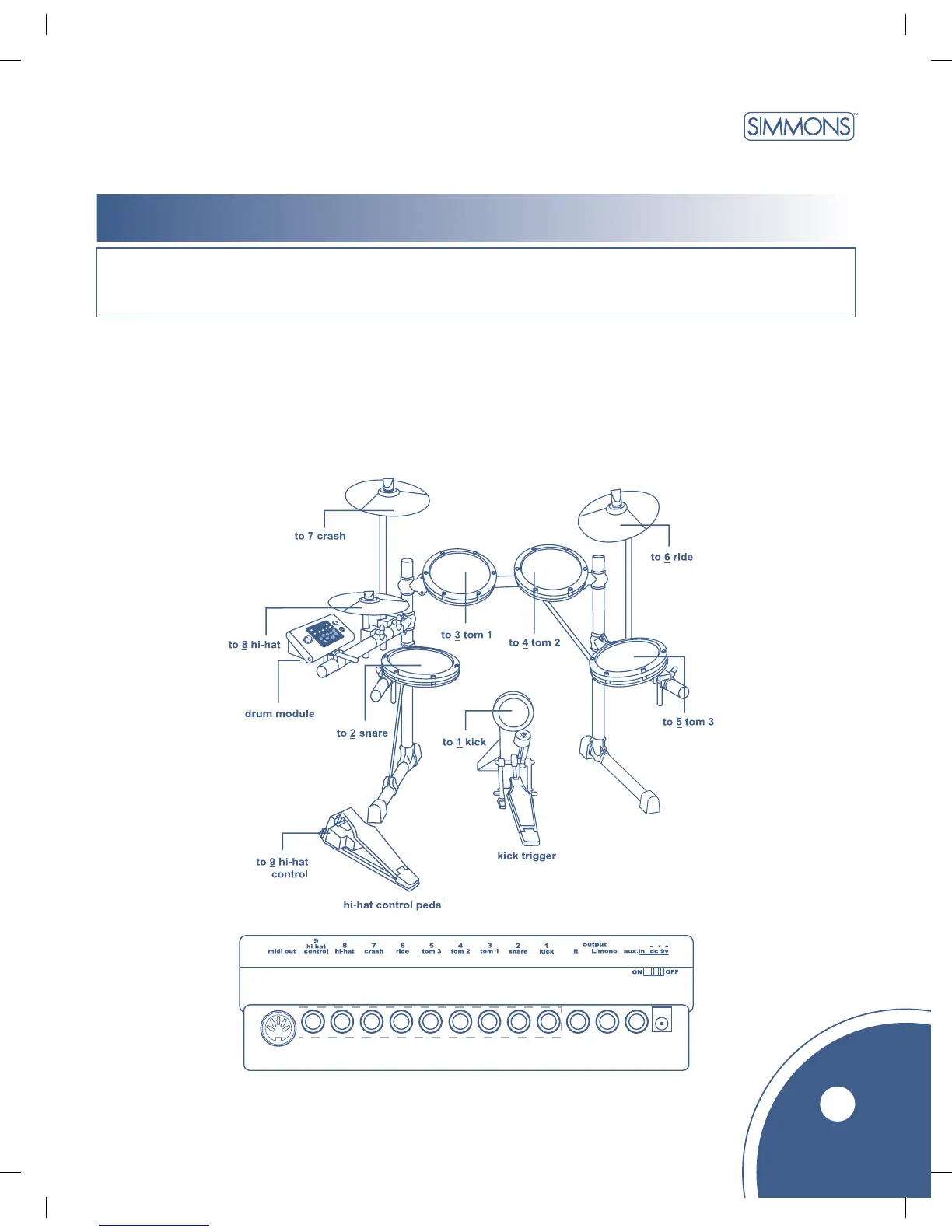

Using the provided cables, connect each pad to its corresponding trigger input jack.
Note:
1. Similar to an acoustic drum kit, the hi-hat pad functions as a “closed hi-hat” when the pedal is stepped on.
When the pedal is released, it functions as an “open hi-hat.”
2. The trigger area of a cymbal pad (ride, crash or hi-hat) is near the edge of the pad.
To Next Page
