SDM630 DMR TIER II – OPERATING INSTRUCTIONS
© SimocoGroup Australasia 2013 page 32 TNM-U-E-0108 Issue 1.1

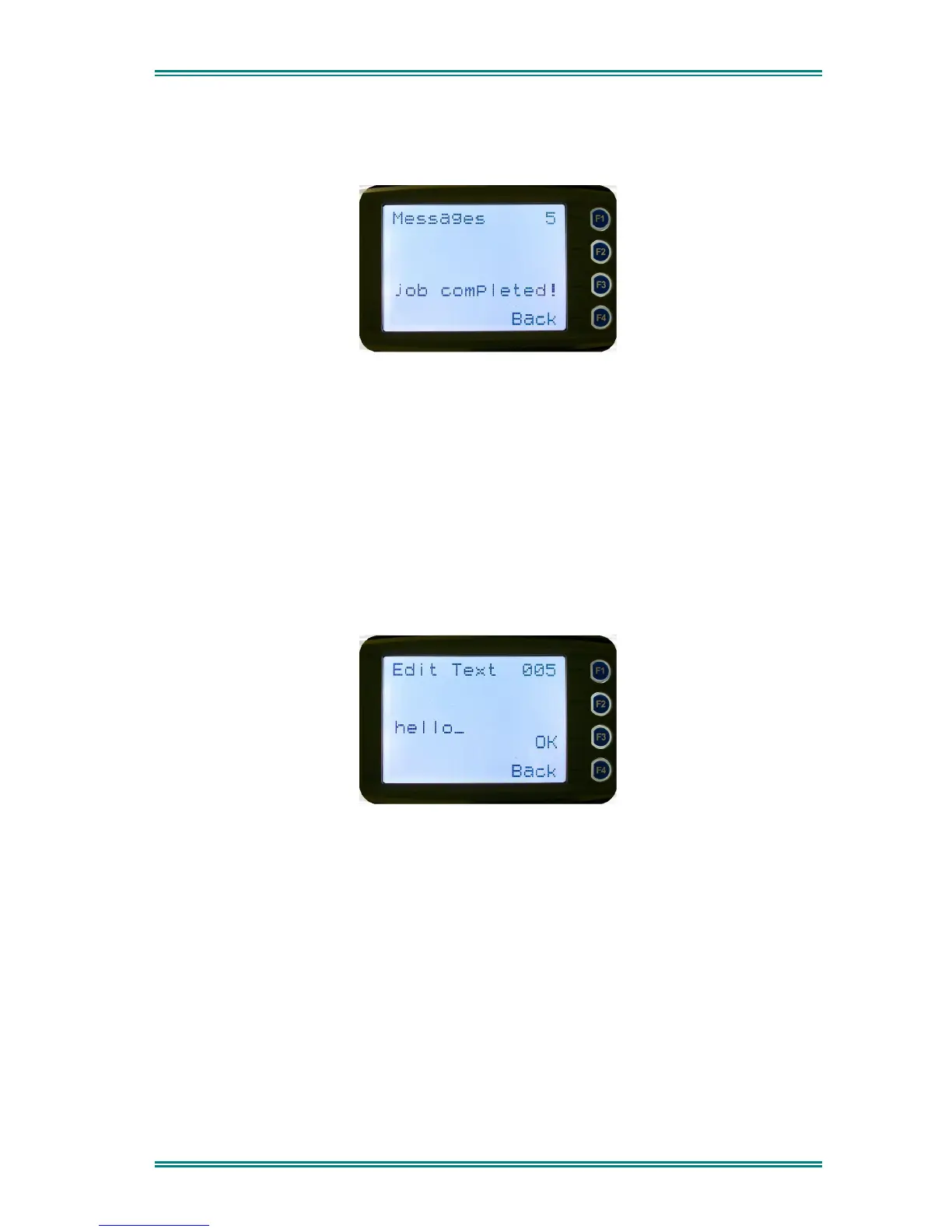

4.2.12.8.1 Short Message Screen
This screen allows the user to view and select a short message. It displays the selected
short message text.
The short message can be selected by using the ▼ and ▲ keys.
A “Reset” function key press (if configured) takes the radio back to the default screen display.
A “Back” or “Menu” keypress returns to the Message Pop-up screen.
When the “OK” key is pressed, the Destination Pop-up screen is shown.
4.2.12.9 Text Message Screen
This screen allows editing and sending a free form text message. A text message can have
a maximum length of 210 characters. The number of characters entered is displayed in the
top right hand side.
The characters are entered via the keypad by pressing the relevant key one or more times to
choose each character.
The
▼
key is used to move the curser to the left.
The ▲ key is used to move the curser to the right.
A “Reset” button press and hold for less than one second deletes the character to the left of
the cursor, and moves the cursor position to the left by one.
Holding the “Reset” button down for more than one second deletes all characters from the
cursor position to the right. A new character entered is put on the current cursor location.
The ‘#’ key is used to toggle upper and lower case.
When the “Back” or “Menu” key is pressed, the radio returns to the Message Reply pop-up
screen.
When “OK” key is pressed, the Destination Selection Pop-up Menu screen appears.
