SRM9030 ~ PMR Mobile Radio User Guide
© TMC Radio 2007 5 TNM-U-E-0003 Issue 4
4. MAIN MENU SCREENS

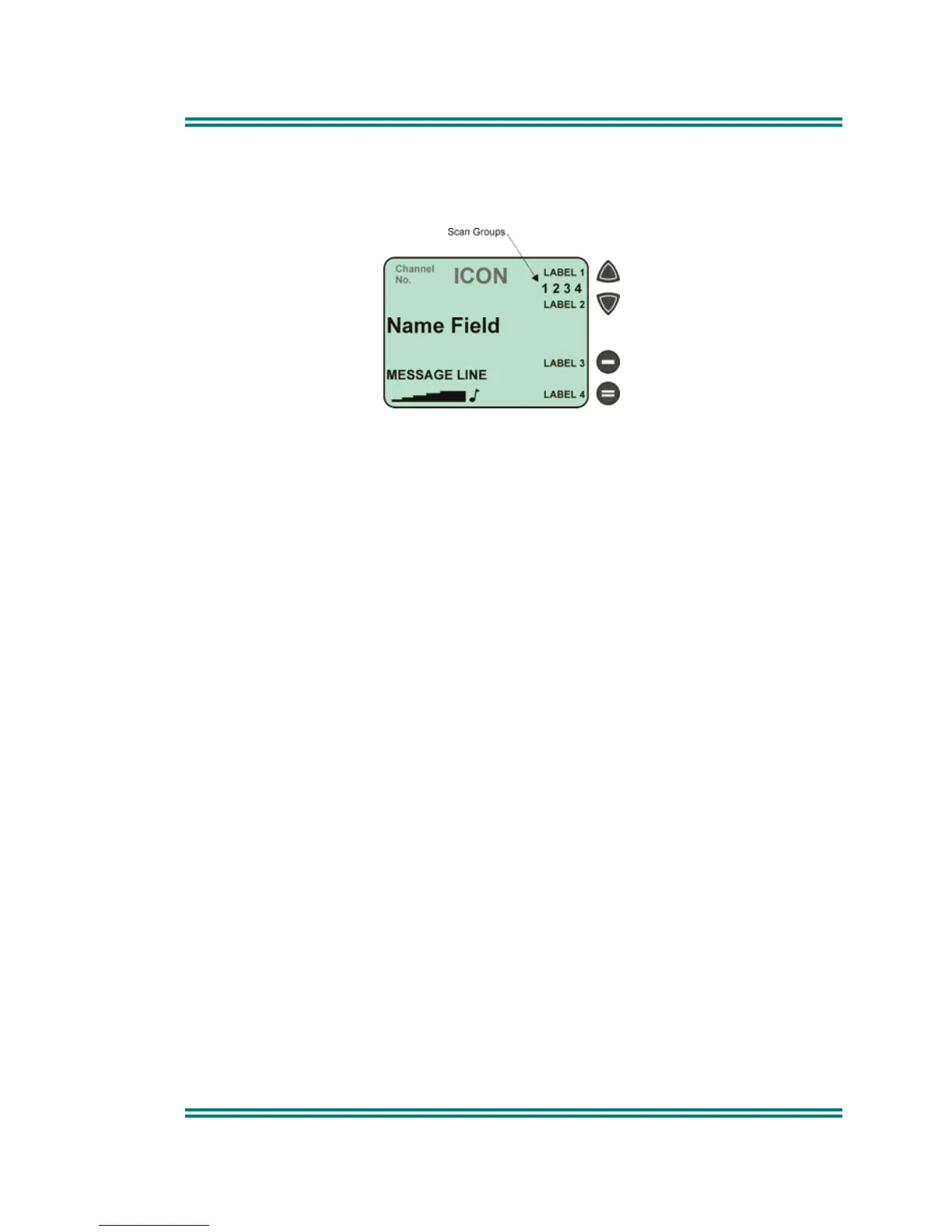

4.1 CHANNELS SCREEN
The Channels Screen shows the current channel and allows it to be changed.
The Name Field shows the selected entry from the current Screen (e.g. from
Channel List).
The Message Line provides additional information in the current Screen. (e.g.
Name of Voting of MultiAx channel when stopped on a channel)
The RSSI Bars indicate the signal strength of the current channel.
Displayed Labels show the function of the F1…F4 buttons. Pressing one of
these buttons will execute the function.
The Scan-Groups field shows the User Scan Groups (1, 2, 3, or 4) that the
current channel is a member of.
