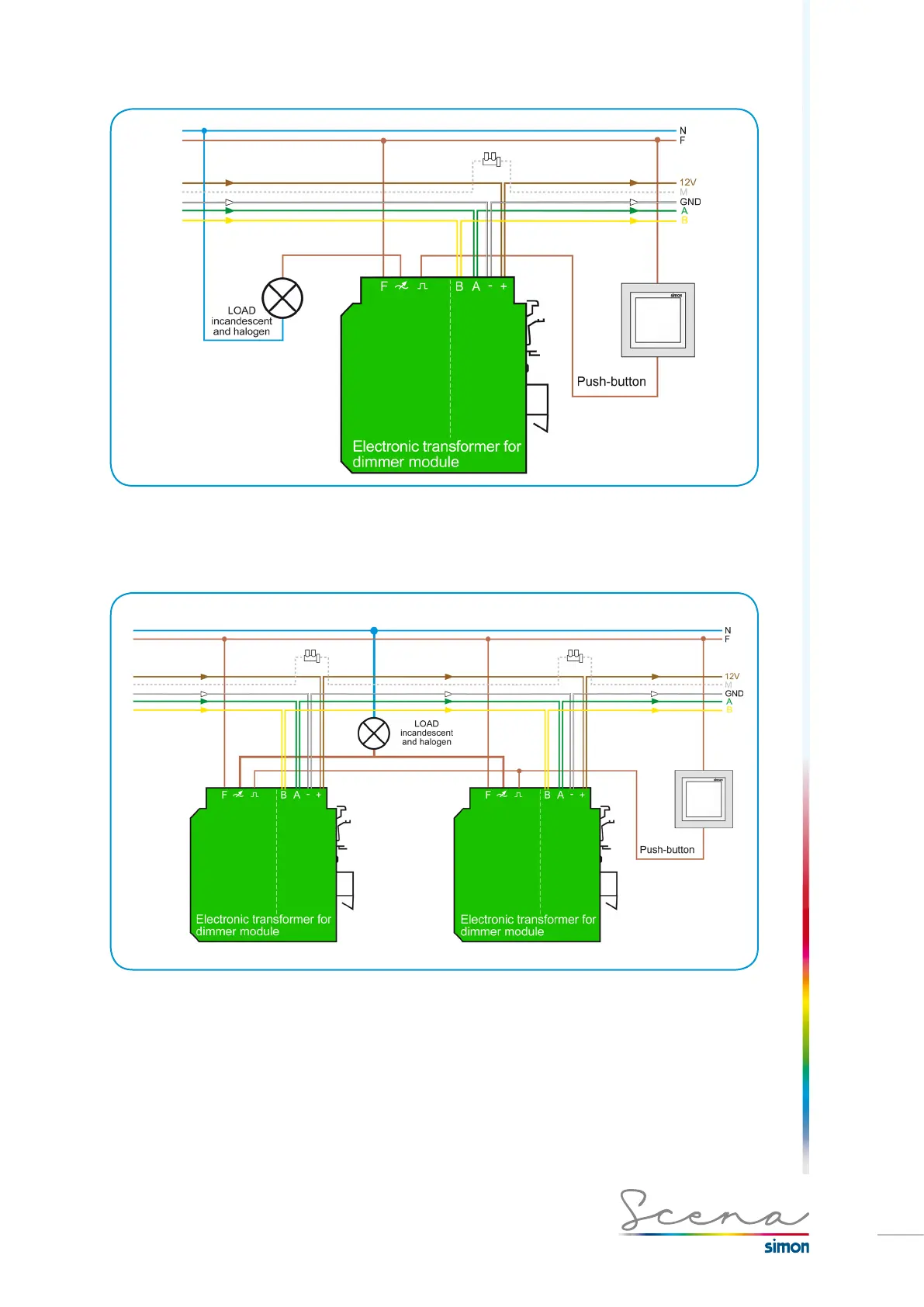

2.2.4 Electronic transformer regulator module

2.2.5 Parallelable electronic transformer regulator module

This enables us to increase the maximum power admitted in an individual module up to 750W. Paralleled

equipment must be manually registered on the console as PARALLEL type.

(See Manual channel registration on page 98).

Both modules must be installed contiguously, thereby ensuring that the distance from both to the load is the

same.
