5. assembly InstructIons (cont.)
5.5 Assembly Steps
A

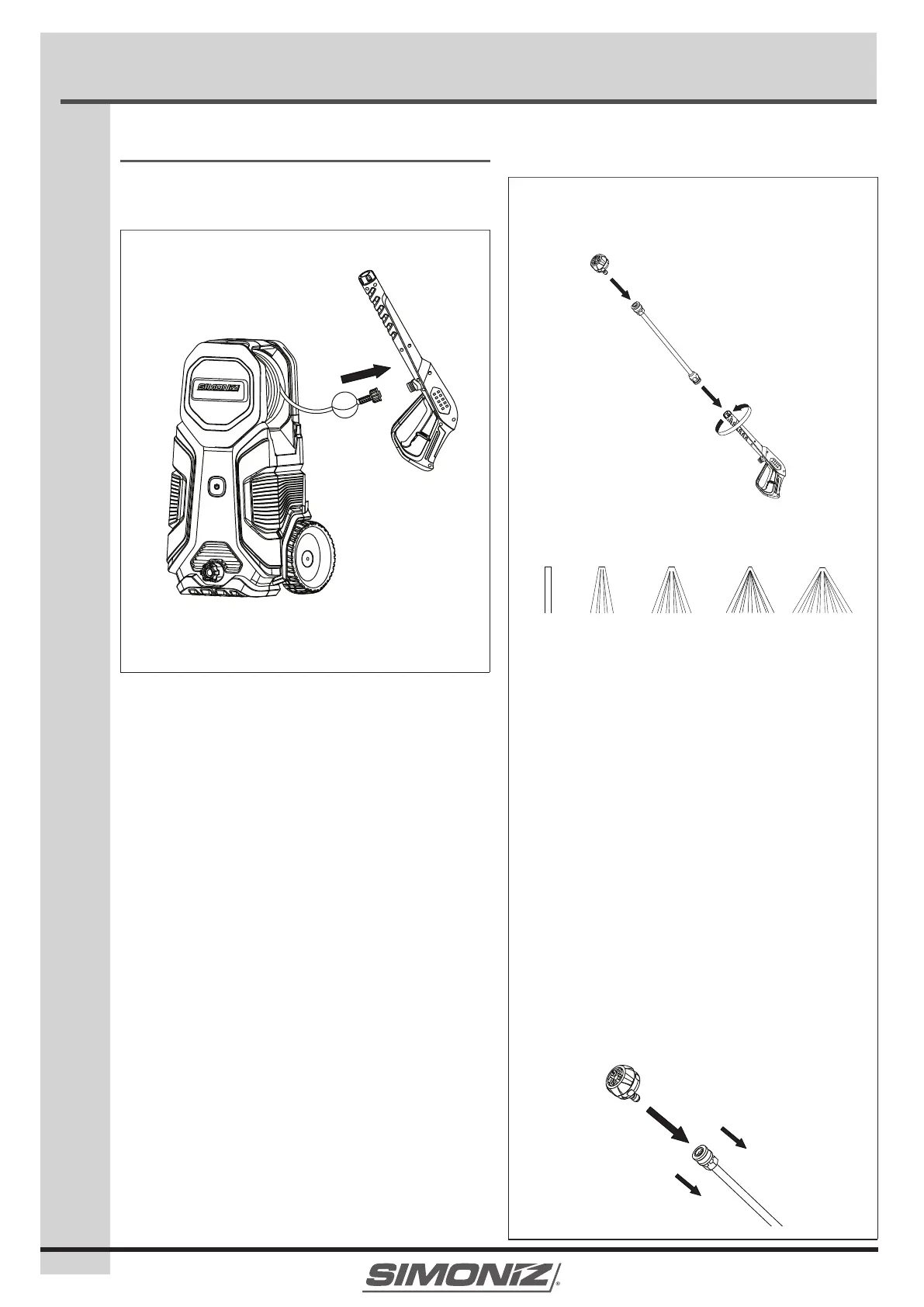

Attach the high-pressure hose from the hose reel to the gun
(hand tighten only).
S
0º 15º 25º 40º 65º
Attach the 5-in-1 project dial to the wand and select the
desired spray pattern for the following purposes:
• 0º: For tough spots and grimes (e.g., concrete
surfaces).
• 15º: To clean large areas (e.g., driveway).
• 25º: Most versatile tip for delicate cleaning and
detail (e.g., vehicles).
• 40º: For light-duty jobs
(e.g., stucco walls, glossy surfaces).
• 65º: Used to cover the most area with moisture
in preparation for applying chemicals or
detergents.
To install 5-in-1 project dial, gently slide the collar back
before inserting it.
