Simplex 4010-9701 User Manual

Features
4010ES Agency listings:
 UL 864, Fire Detection and Control (UOJZ), and
Smoke Control Service (UUKL), and Releasing
Service (SYZV)
 UL 2017, Process Management Equipment (QVAX)
 UL 1076, Proprietary Alarm Units-Burglar (APOU)
 UL 1730, Smoke Detector Monitor (UULH)
 ULC S527-99, Fire Detection and Control (UOJZC)
 ULC S559-04, Supervising Station (DAYRC)
Introduction
4010ES Series Fire Detection and Control Panels
provide leading edge installation, operator, and service
features for customer applications in the mid-range
addressable fire alarm systems market. An on-board
Ethernet port provides fast external system
communications to expedite installation and service
activity. Dedicated compact flash memory archiving
provides secure on-site system information storage of
electronic job configuration files to meet NFPA 72
(National Fire Alarm and Signaling Code) requirements.
Modular design. A variety of functional modules are
available to meet specific system requirements. Selections
allow panels to be configured for either Stand-Alone or
Networked fire control operation.
Mechanical Description
 Mounting box provides convenient stud markers for
drywall thickness and nail-hole knockouts for quicker
mounting
 Smooth box surfaces are provided for locally cutting
conduit entrance holes exactly where required
 The hinged User Interface panel easily opens for
internal access
 Modules are power-limited (except as noted, such as
relay modules)
 Doors include tempered glass inserts, boxes and doors
are available in platinum or red
 Box and door/retainer assemblies are included with
Basic Panel assemblies
 Cabinet assembly is rated NEMA 1 and IP 30
 Cabinet assembly design has been seismic tested and
is certified to IBC and CBC standards as well as to
ASCE 7 categories A through F, requires battery
brackets as detailed on data sheet S2081-0019
Panel Hardware
4010ES Block Space Option Cards mount to the left
of the 4010ES ESS. There are 3 available 4” x 5” blocks
for mounting 4010ES hardware options.
Other 4010ES Options: The 4010ES City Connect
module or the optional Alarm Relay module mount
directly to the ESS. These options are mutually exclusive.
Network Media modules mount directly to the 4010ES
Network Interface Card.
The TrueInsight Remote Gateway mounts on the back
side of the 4010ES User Interface Panel.
The Battery Compartment located in the bottom of
the 4010ES cabinet accepts two batteries, up to 33 Ah,
without interfering with expansion module space.
The illustrations at the bottom of this page identify
mounting locations available for optional 4010ES
modules. (refer to page 7 for additional information)
Software Feature Summary
 TrueAlarm individual analog sensing with front panel
information and selection access
 “Dirty” TrueAlarm sensor maintenance alerts, service
and status reports including “almost dirty”
 TrueAlarm magnet test indication appears as distinct
“test abnormal” message on display when in test mode
 TrueAlarm sensor peak value performance report
 “Install Mode” allows grouping of multiple troubles
for uninstalled modules and devices into a single
trouble condition (typical with future phased
expansion); with future equipment and devices
grouped into a single trouble, operators can more
clearly identify events from the commissioned and
occupied areas
 Module level ground fault searching assists
installation and service by locating and isolating
modules with grounded wiring
 “Recurring Trouble Filtering” allows the panel to
recognize, process, and log recurring intermittent
troubles (such as external wiring ground faults), but
only sends a single outbound system trouble to avoid
nuisance communications
 WALKTEST silent or audible system test performs an
automatic self-resetting test cycle
2 S4010-0011-5 11/2015
4" x 5"
Block A
4" x 5"
Block B
4" x 5"
Block D
Enhanced System
Supply
3 available 4" x 5"
block spaces for
additional option cards
TrueInsight Remote
Gateway mounts on
the back of the 4010ES
User Interface Panel

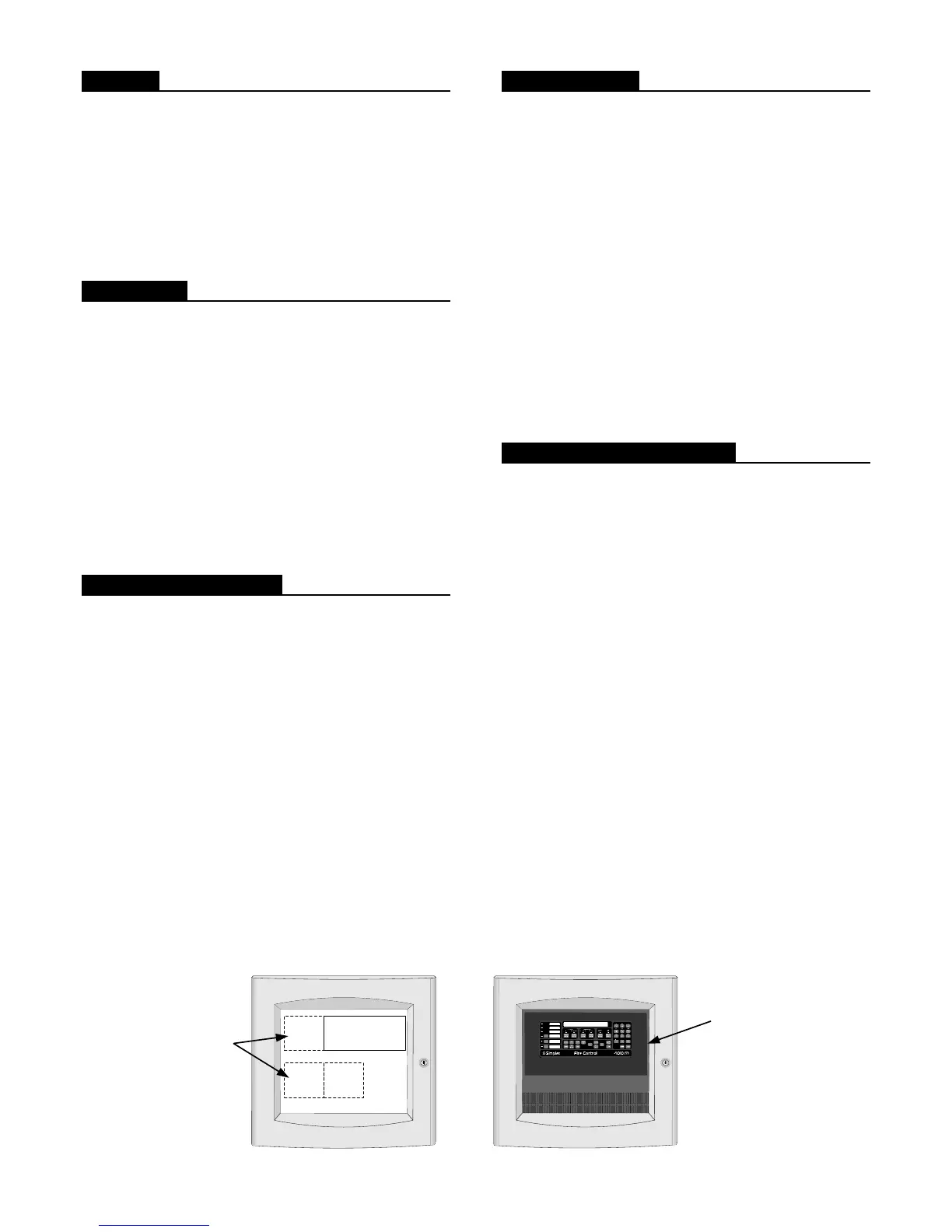

Mounting Locations for Optional Modules, One-Bay Cabinet
