Simplex 4010-9701 User Manual

8 S4010-0011-5 11/2015
Model Features
Supervisory
Current
Alarm
Current
Mounting Requirements
4010-9909 City Connect Module w/ disconnect switches 20 mA 36 mA
Select one maximum, mounts
on ESS
4010-9910 City Connect Module 20 mA 36 mA
4010-9911 Alarm Relay Module 15 mA 37 mA
4190-6105* TrueInsight Remote Gateway 62 mA 62 mA Mounts on Front Door
4100-5128
Battery Distribution Terminal Block, mounts to side of box, required when battery connection leaves the 4010ES
box (also used in the 4100ES fire alarm control panel)
* Refer to data sheet S4100-0063 and contact your local Simplex product representative for more details.
LED Kits (LEDs are pluggable, use to change color for local application requirements)
Model Description
4100-9843 8 Yellow LED Kit
4100-9844 8 Green LED Kit
4100-9845 8 Red LED Kit
4100-9855 8 Blue LED Kit
End User Programming Tools
Model Description
4100-8802 End User Programming Unit Software
4100-0292 Custom Label Editing (USB Dongle)
4100-0295 Port Vectoring Setup and Control (USB Dongle)
4100-0296 Access Level/Passcode Editing (USB Dongle)
4100-0298 WalkTest Configuration Setup and Control (USB Dongle)
Factory Programming Options
Model Description
4010-8810 Factory Programming (select)
4010-0831 Custom Labels and Programming (requires 4010-8810)

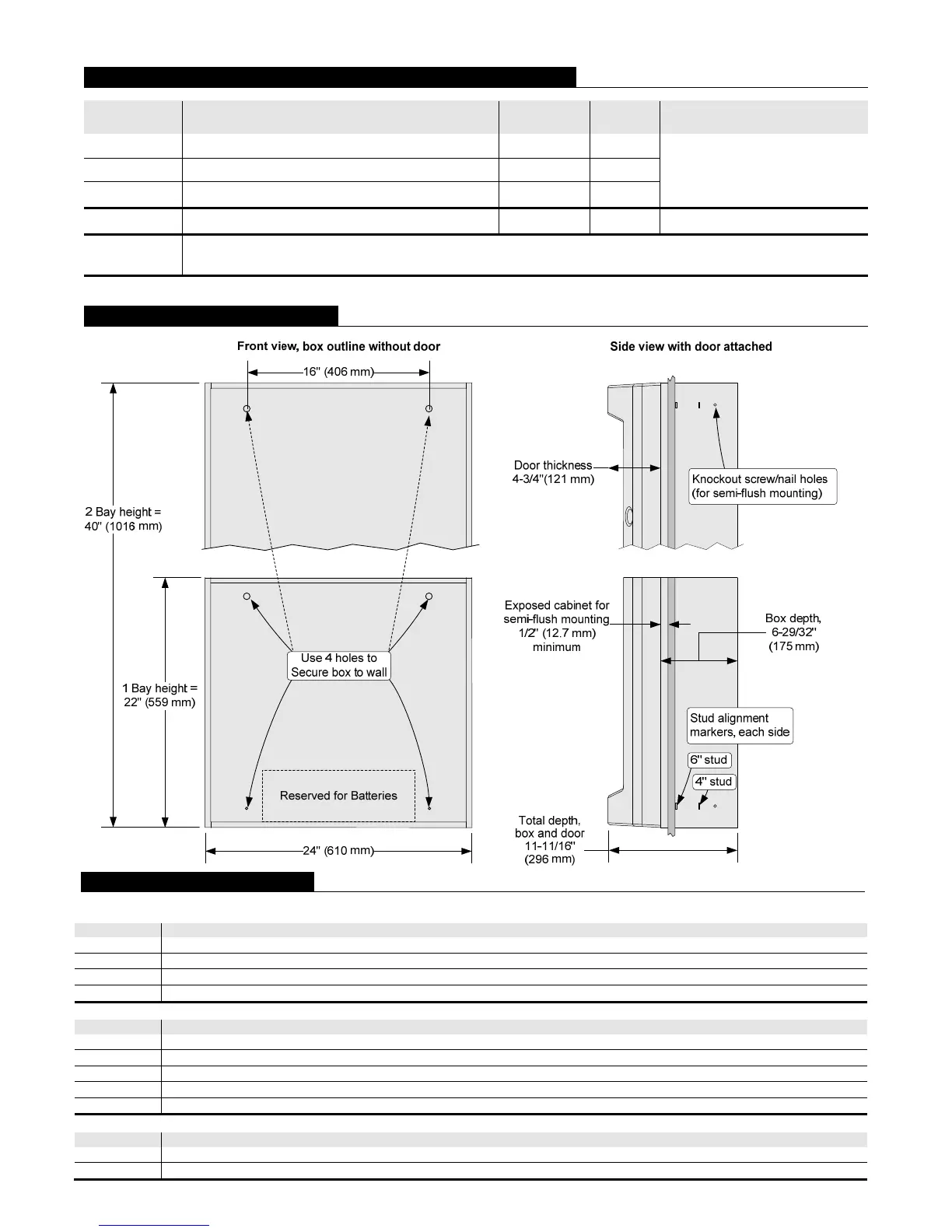

Cabinet Dimension Reference
Miscellaneous Accessories
Additional Panel Option Selection (block space is not used)

Simplex 4010-9701 Specifications

General

Brand	Simplex
Model	4010-9701
Category	Control Panel
Language	English
