Simplex 4010ES Quick Start Guide

4 S4100-0059-4, 3/2012
Fire Alarm Control Panel
(4100ES shown for reference)
4100-6077 MX Loop Module
(module locations are for
reference only)
Manual Operation
Devices
I/O Modules
Smoke, Heat, and
Smoke/Heat
Detectors
(with standard,
Isolator, and
Sounder Bases)
Left Loop
(Class B IDC)
Right Loop
(Class B IDC)
For Class A operation, the Left Loop
and Right Loop tie together
* 4100-5130 Voltage
Regulator Module;
required for powering
4090-5205 Monitor ZAMs
Monitor ZAM *
Mini-IAM
Manual Stations,
Single and Dual Action
Callpoints
(breakglass)
Line Isolator
Modules
Signal and
Relay IAMs
Note: Separate 24 VDC power wiring
(not shown) is required for Monitor
ZAMs, Signal and Relay IAMS, and
4-wire sounder bases. Refer to
device documents for details.
Non-addressable
zone devices
Supports Class B "T-tap"
branch circuits
to local appliances or
other 24 VDC control
24 VDC to power Monitor ZAMs, Signal
and Relay IAMS, and 4-wire sounder
bases as required (shown for reference,
power can be supplied from a separate
listed fire alarm power source)

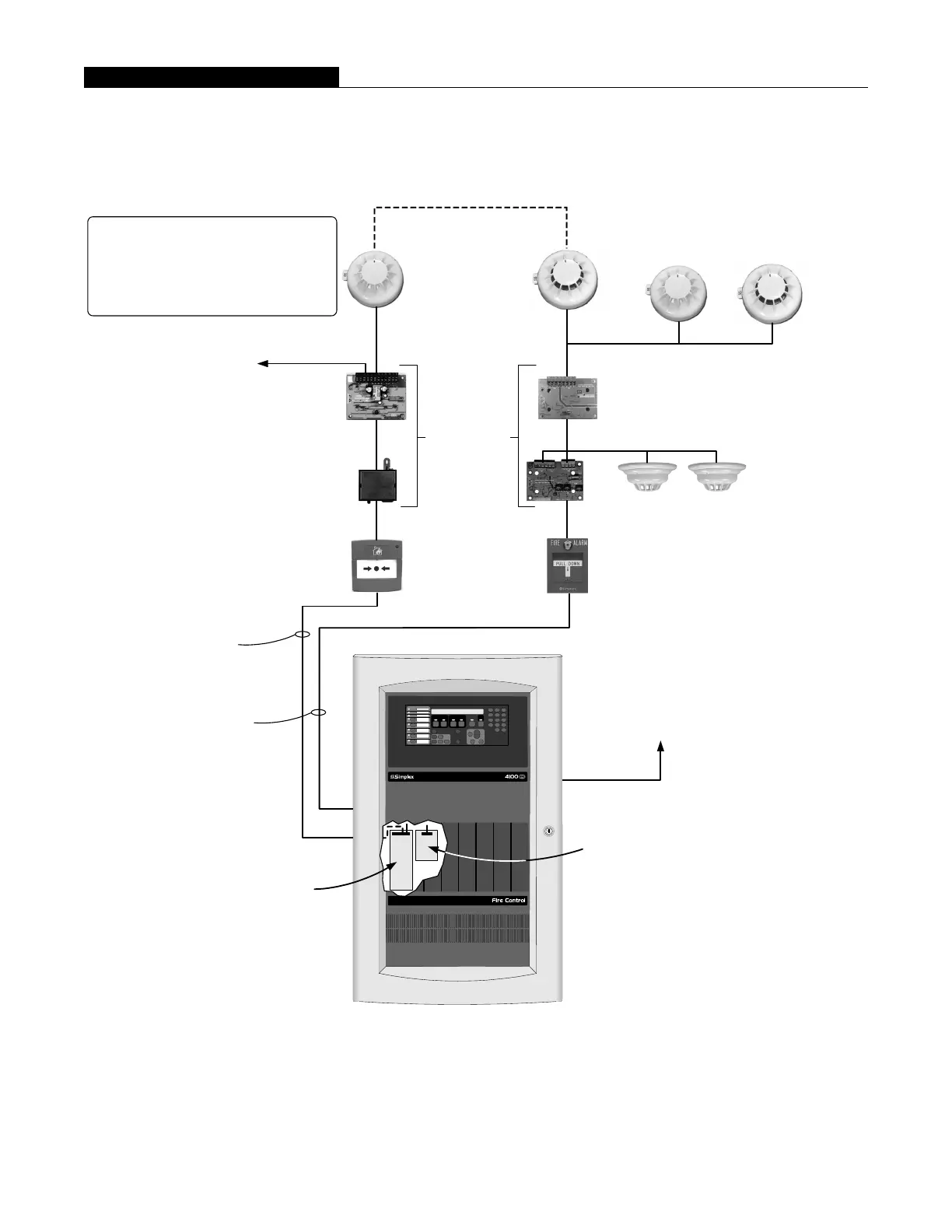

System Installation Reference
