Note: Refer to the 4098 Detectors, Sensors, and Bases Application Manual
(574-709) for detailed information on Detectors and Sensors.
Sensor Magnet Test
The following test method is suitable for functional checks of sensor bases
during installation; however, testing with aerosol must be performed to comply
with NFPA requirements.
Position the 553-810 Magnet Tester on the cover side, below either of the arrow
marks (see Figure 16), not between the two arrow marks. Testing a sensor
with a magnet reports a value of 255 for actual / peak (exception 4010 panel).
Clear the peak value after testing.
Detector Magnet Test
The 4098-9601 photoelectric detector may be tested by placing a magnet at the
location indicated by a “TEST” mark embossed on the cover for four (4)
seconds (see Figure 16). Use the Simplex Magnet Tester (Part No. 553-810),
Table 4, and the following information to test detectors.

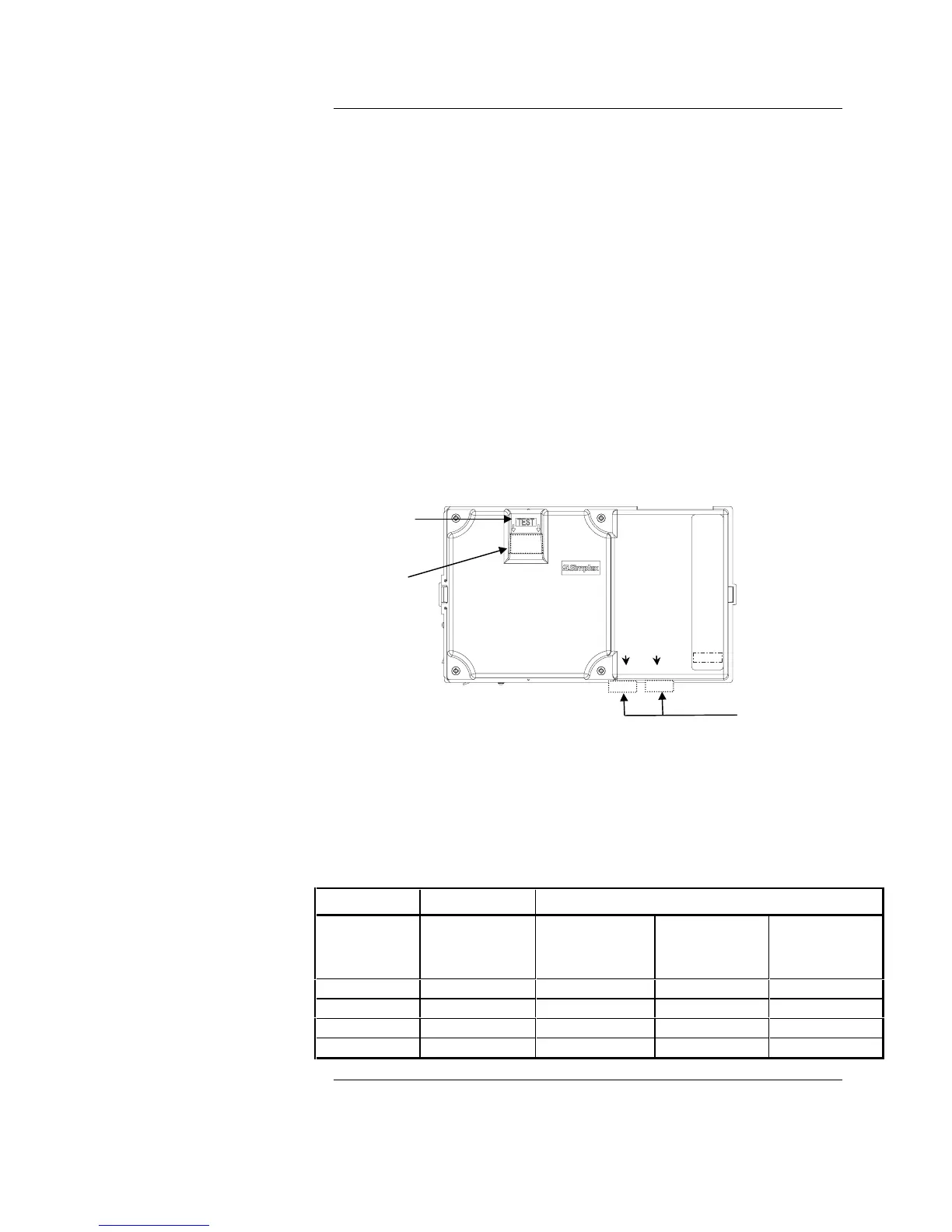

Figure 16. Magnet Test Location
Table 4 describes the Detector LED reaction during Normal and MAG TEST
modes to the Normal, More Sensitive, Less Sensitive, and Non-Functional states
of the detector.
Table 4. MAG TEST/Normal Modes - States and Reactions
STATE Normal Mode MAG TEST Mode
LED flashes
every 4 secs.
LED Flashes
Quickly 6 Times
in 3 secs.
LED Flashes
Slowly 4 Times in
8 secs.
Latches in Alarm
Mode/LED stays
“ON”
Normal
X X
More Sensitive
X X X
Less Sensitive
X X X
Non-Functional
X
Continued on next page
Installation, Continued
Magnetic Test for Detectors
and Sensors
TEST MARK
ON COVER
PLACE MAGNET TESTER FLAT FOR
DETECTOR TEST
(DETECTOR MAGNET TEST LOCATION
INDICATED BY DASHED LINES)
TEST
PLACE MAGNET TESTER FLAT ON SIDE
OF COVER FOR SENSOR TEST
(SENSOR MAGNET TEST LOCATIONS
INDICATED BY DASHED LINES)
OR
