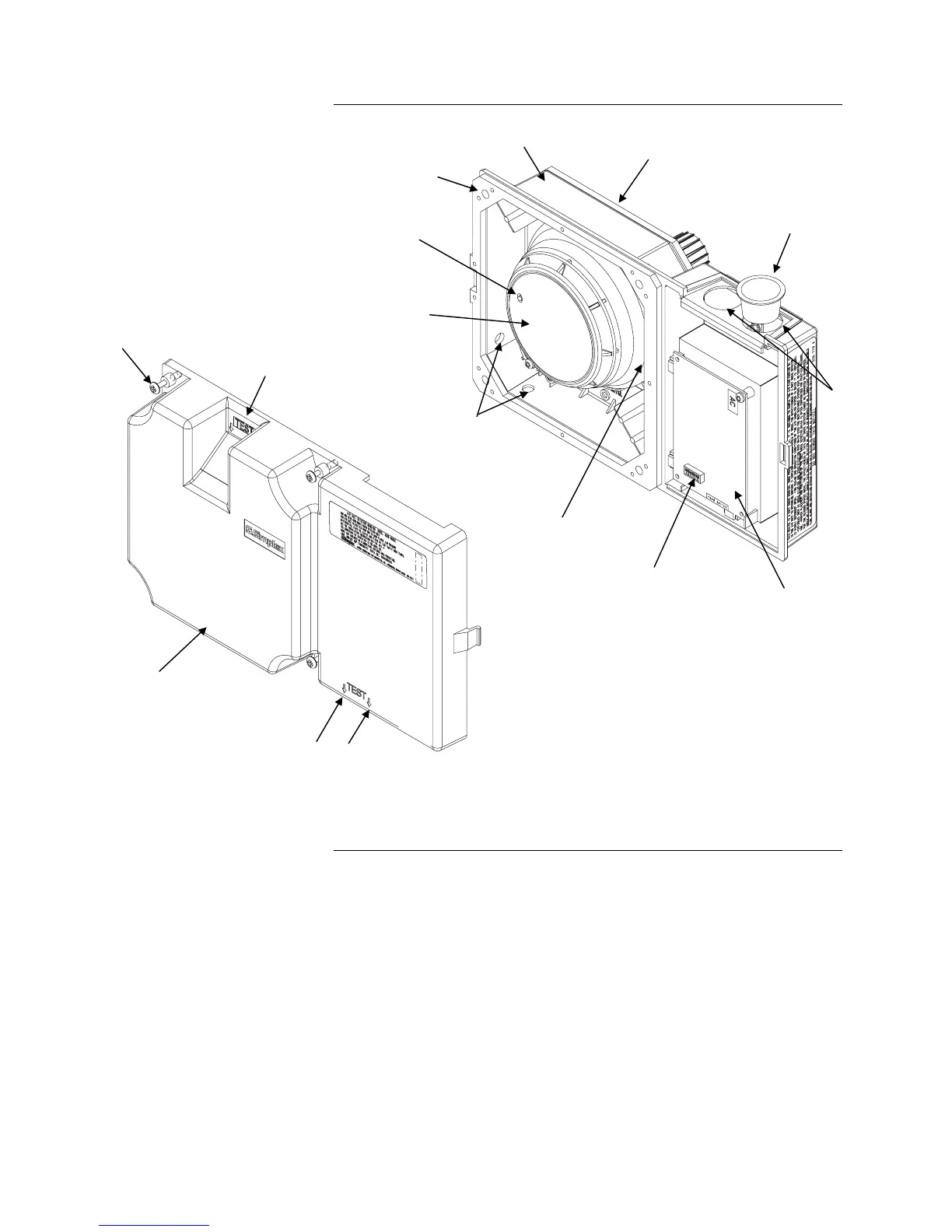

Figure 1. Duct Housing Components
General Description, Continued
DETECTOR MAGNETIC
TEST LOCATION
#8 CAPTIVE PANHEAD
SCREW
QTY: 4
SENSOR MAGNETIC
TEST LOCATION
HOUSING COVER
DETECTOR
or
SENSOR
SMOKE PORT/AIR FLOW
TEST HOLES
DETECTOR/SENSOR
BASE
PCB ASSEMBLY
3/4" CONDUIT
ENTRY (2)
# 12-18 AWG WIRE
RECOMMENDED
BASE GASKET
COVER GASKET
HOUSING BASE
CAP PLUG
SHIP GROUP 748-518
SEE NOTE
DIP SWITCH SW2
(4098-9755, -9756 ONLY)
Note:
Two 3/4" conduit entries are provided for field wiring
connections (#12-18 AWG) to the PCB assembly.
The unused conduit entry is sealed off using the cap
plug (ship group 748-518). Apply even pressure on
the plastic cap plug to secure it against the conduit
plate. The cap plug seals and removes easily with
moderate pressure.
STATUS LED
