4100-3109 IDNet 2, 4100-3110 IDNet 2+2 and 4100-3111 IDNet Loop card Installation Instructions
Card Layout
Compatibility
Hardware compatibility:
IDNet 2: 4100ES bays, EPS modules, 4100U bays.
IDNet 2+2: 4100ES bays, 4100U bays, ES-PS modules.
Software compatibility:
For use with revision 2.04 or higher of the ES Panel Programmer Software, and revision 12.08 of the 4100U Programmer and Master software.
** = Refer to IDNET and MAPNET II Addressable Device Communications Compatibility Chart S4090-0011
Card Layout
The IDNet 2 is a standard 4x5 card that can accommodate two IDNet Loop cards. Figure 1 highlights the feature elements of these cards.
IDNET 2
2
1
76543 8
LOOP A
B+ B- A+ A-
B+ B- A+ A-
LOOP B
IDNet Terminal Block (TB1)
IDNET 2
21
4
3
5
6
7
8
LOOP A
B+ B- A+ A-
B+ B- A+ A-
LOOP B
A-A+
S
B-B+
A+ A-
S
B-B+
PDI Connector (P5)
(Reverse Side)
Address
Dip Switch
(SW1)
LOOP B
Class A/B
Jumper (P2)
LOOP A
Class A/B
Jumper (P1)
LEDs
IDNet Terminal
Block (TB1)
IDNet Loop Card
Connector
IDNet Loop Card
(LOOP C)
Connector
(LOOP D)
4100-3109 IDNet 2 Card
4100-3109 IDNet 2 Card
4100-3110 IDNet 2+2 Card
Class A/B
Jumper (P1)
Connector on
Reverse Side
(P2)
IDNet Loop
Card
4100-3111

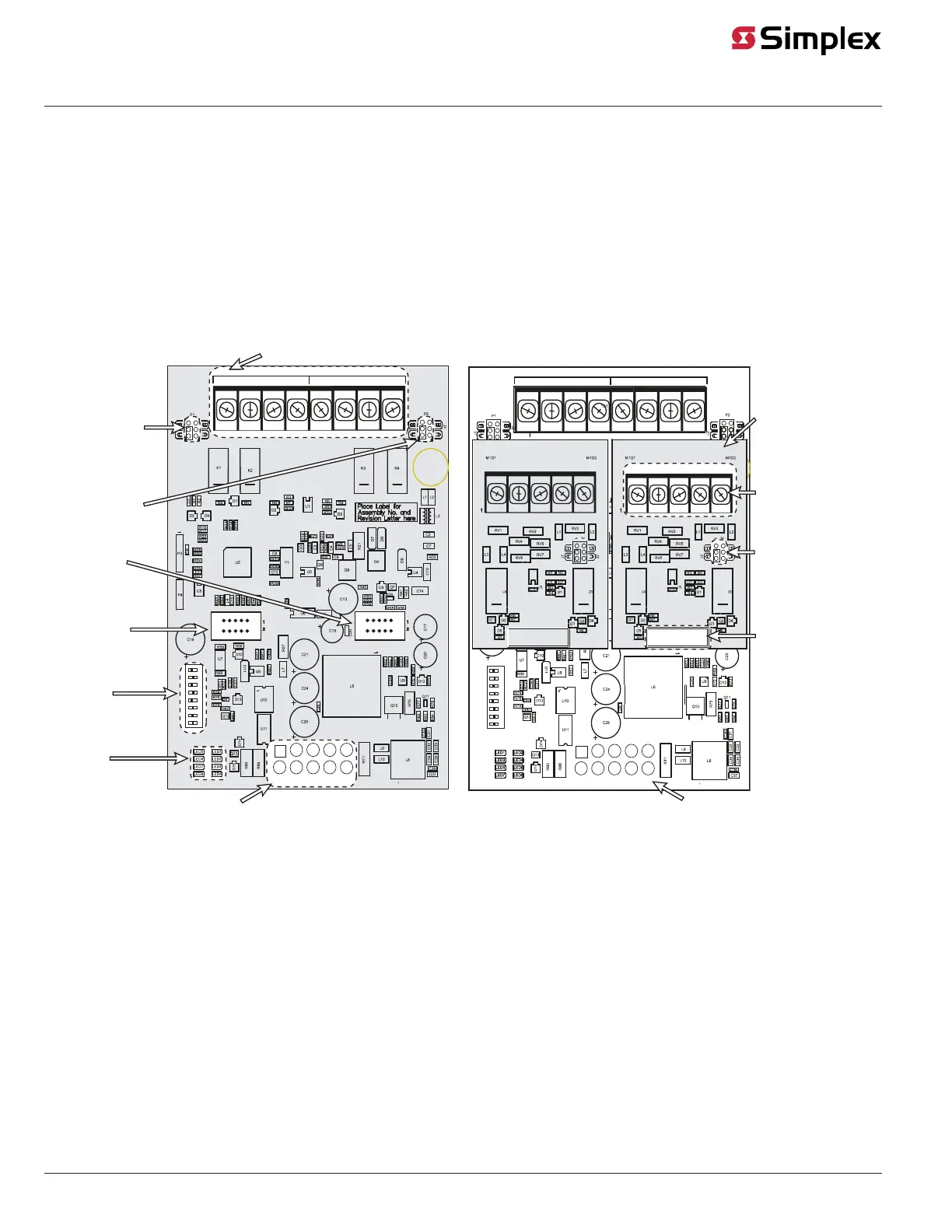

Figure 1: Card Layout
