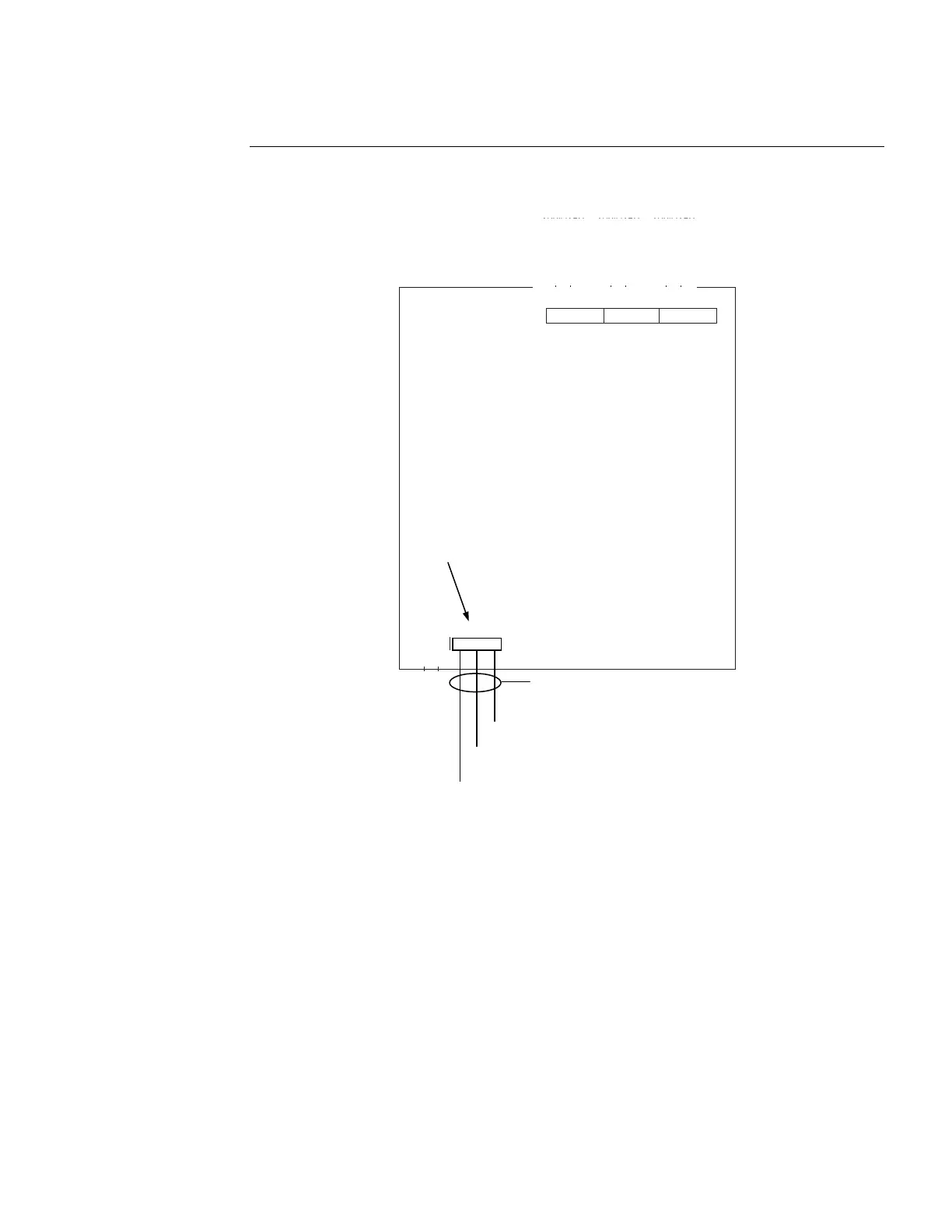

The figure below shows SPS/RPS auxiliary relay wiring.
B+
0V 24V
AUX POWER
B- A+ A- B+ B- A+ A- B+ B- A+ A-
AUXILIARY
POWER
AUXILIARY
POWER
AUXILIARY
POWER
AUXILIARY
POWER
Figure 14. Auxiliary Relay Wiring
Auxiliary Relay Wiring, Continued
Wiring
SPS or RPS
TB2
TB4
Dedicated auxiliary
power screw terminal
(configured in the
Programmer)
12 AWG (3.309 mm
2
) to
18 AWG (0.8231 mm
2
)
NO C NC
NORMALLY
OPEN
NORMALLY
CLOSED
COMMON
Note: To program relay contacts, refer to the ES Panel Programmer’s Manual (574-849).
