579-271
Rev. G
The 4100-0620 TIC Assembly is used on the 4100-9607, 4100-9608, 4100-9609, and 4100-9610
remote annunciator. Refer to Figure 4 for wiring information.

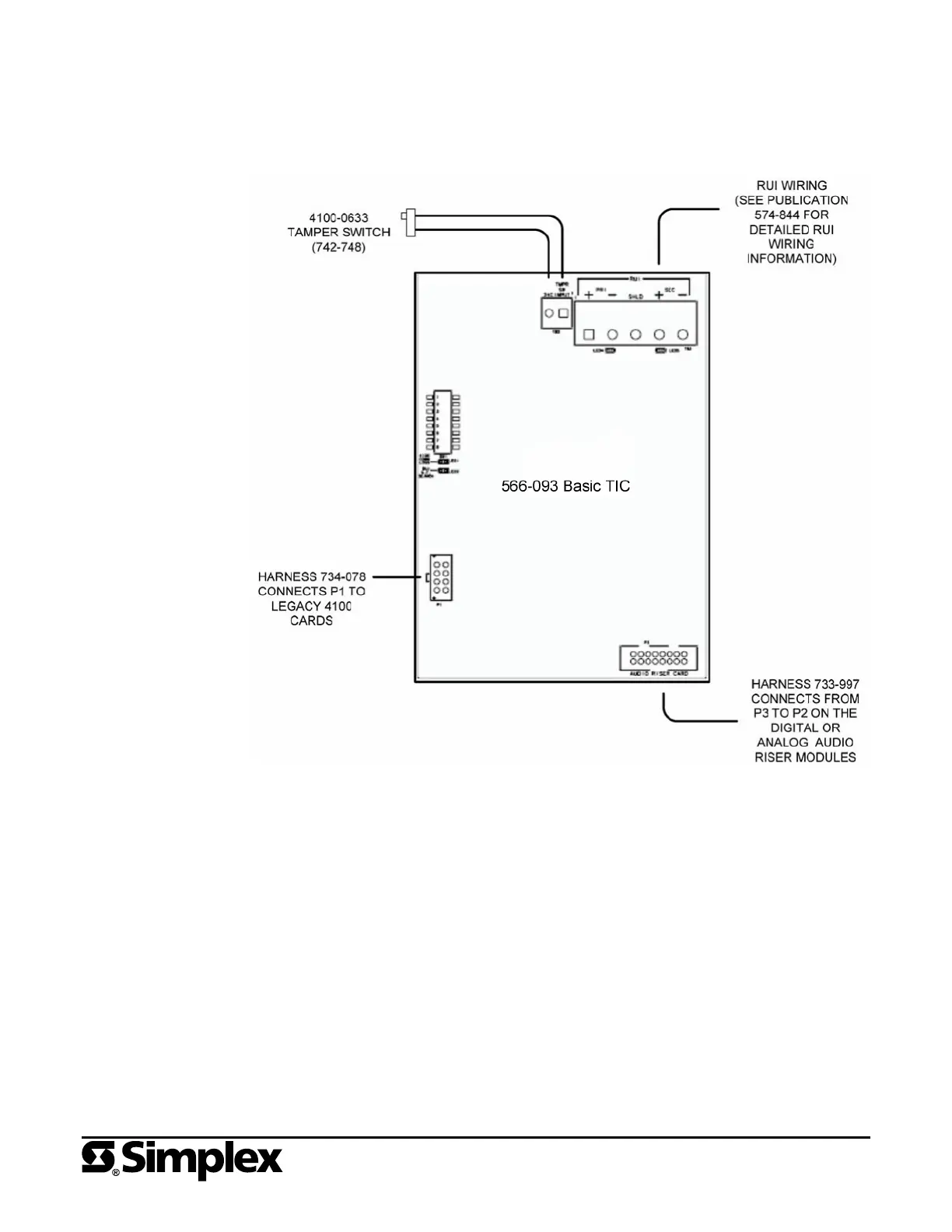

Figure 4. Wiring for the Basic Annunciator TIC Assembly
Remote Annunciator Installation (continued)
Wiring for the Basic
Annunciator
Assembly
