The field-wiring to 4100-9611, -9612, -9613 and 4100-9614 Remote Annunciators is 24V power
and RUI communications. Refer to Figure 3 for wiring information.

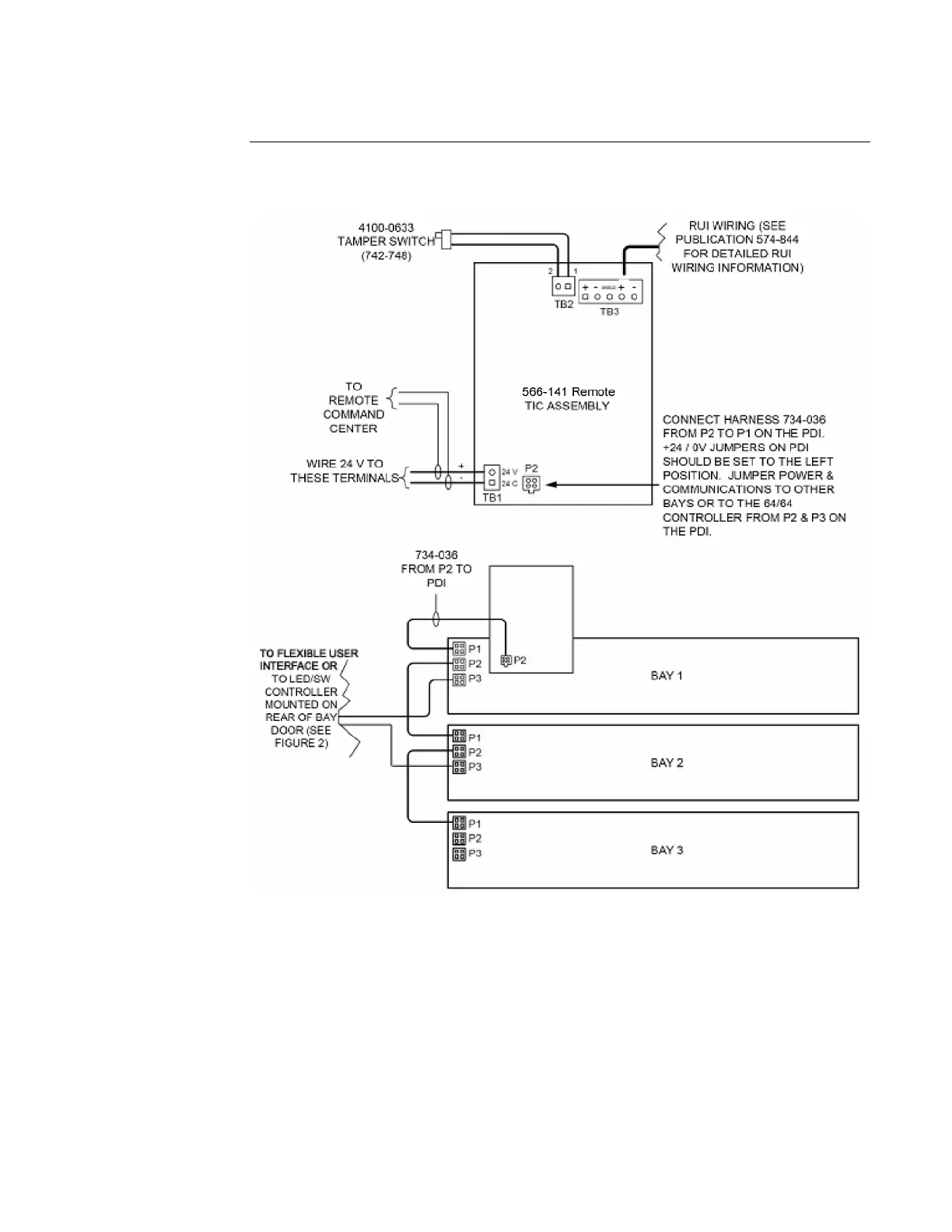

Figure 3. Wiring for 4100-9611, 4100-9612, 4100-9613, and 4100-9614. TIC Assembly
Used on the the Remote Annunciator
Remote Annunciator Installation (continued)
Wiring for the
Remote Annunciator
Assembly
