Simplex 4100U Operation Reference

7 S4100-0045-4 11/2007

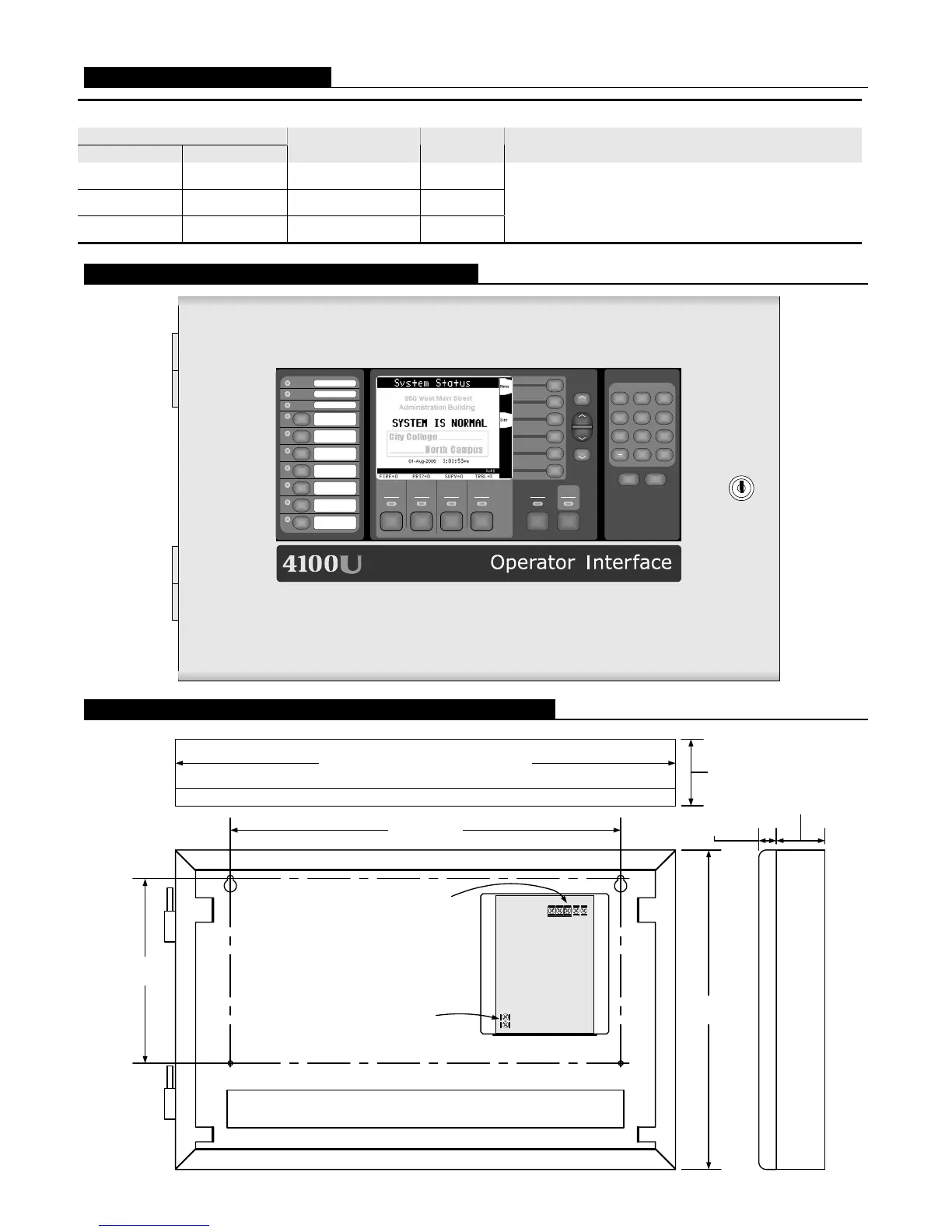

Remote InfoAlarm Command Center Control Assembly with Cabinet for Surface Mounting
Model Number/Cabinet Color
Red Beige
Application Type Listing Description
4100-9401 4100-9402 English UL & ULC
4100-9421 4100-9422 French/Canada ULC
4100-9441 4100-9442 International UL
Remote InfoAlarm Command Center with cabinet; for
surface mounting; includes mounting box and door
assembly with glass insert; uses RUI communications;
requires external 24 VDC system voltage; see illustrations
below and Installation Instructions 579-687 for details
A B C D E F G H I
J K L M N O P Q R
'SP' ( ) , # :
S T U V W X Y Z /
ZONE
1
SIG
2
AUX
3
FB
4
IO
5
IDNet
6
P
7
A
8
L
9
NET ADDR
0
C/Exit
Menu Enter
Previous
Next
Page Dn
Page Up
AC
Power
ALARMS
Fire
Alarm
Priority 2
Alarm
WARNINGS
System
Supervisory
System
Trouble
Alarm
Silenced
Fire Alarm
Ack
Priority 2
Ack
Supv
Ack
Trouble
Ack
Alarm
Silence
System
Reset
Box and door width = 20-1/2" (521 mm)
2" (51 mm)
3/4" (19 mm)
13-1/16"
(332 mm)
Transponder
Interface Card
(TIC)
24 VDC power input
wiring terminals
RUI Communications
wiring terminals
16" (406 mm)
8"
(203 mm)
NOTE: Bring wiring through back of box; do not use cabinet bottom;
refer to Installation Instructions shipped with assembly
see
conduit
note
Depth 2-3/4"
(70 mm)
Remote InfoAlarm Command Center Front View
Product Selection (Continued)
Remote InfoAlarm Command Center Mounting Reference

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
