Simplicity 1613H - Page 14

Operation

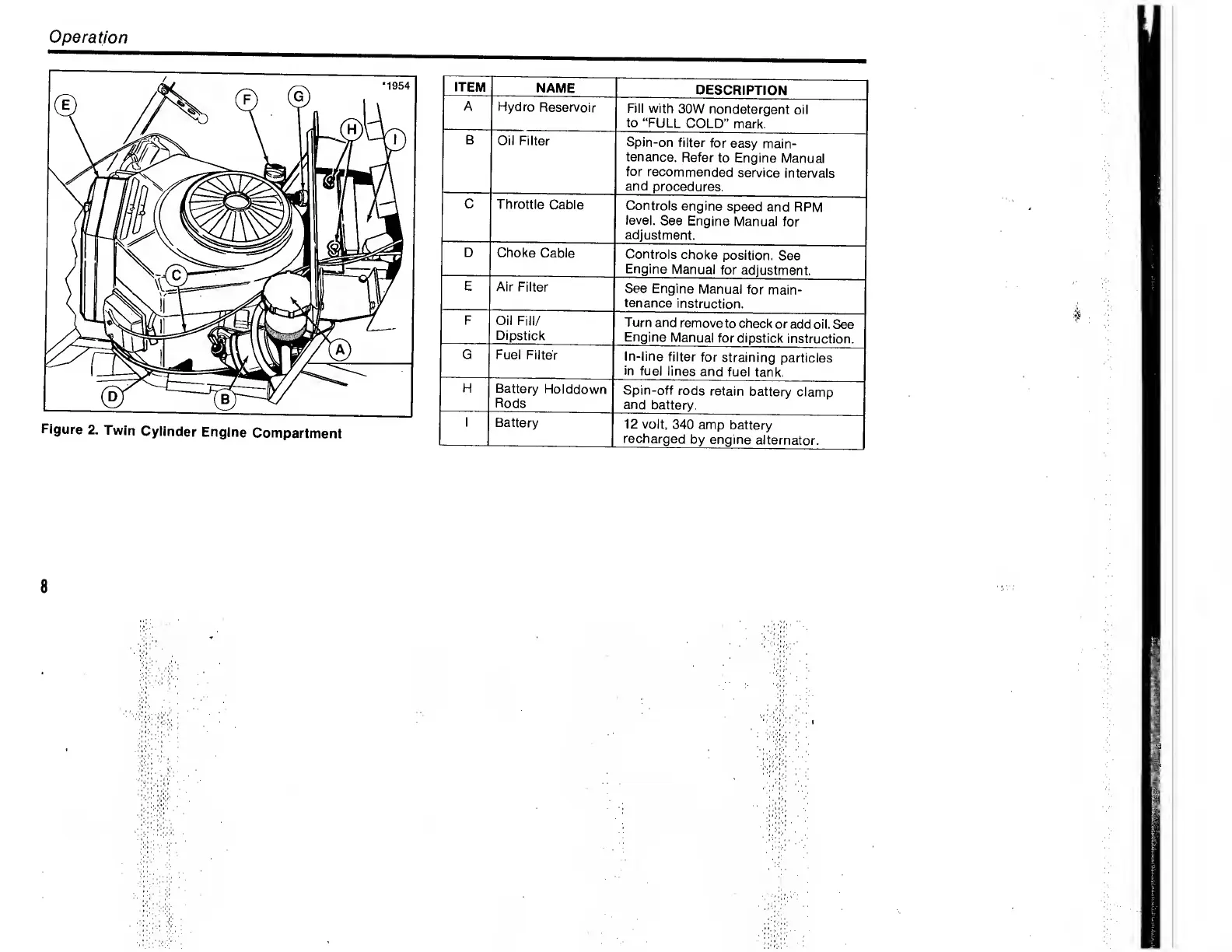

Figure 2. Twin Cylinder Engine Compartment
ITEM
NAME
DESCRIPTION
A
Hydro Reservoir
Fill with 30W nondetergent oil
to "FULL COLD” mark.
B
Oil Filter
Spin-on filter for easy main¬
tenance. Refer to Engine Manual
for recommended service intervals
and procedures.
C
Throttle Cable
Controls engine speed and RPM
level. See Engine Manual for
adjustment.
D
Choke Cable
Controls choke position. See
Engine Manual for adjustment.
E
Air Filter
See Engine Manual for main¬
tenance instruction.
F
Oil Fill/
Dipstick
Turn and remove to check or add oil. See
Engine Manual for dipstick instruction.
G
Fuel Filter
In-line filter for straining particles
in fuel lines and fuel tank.
H
Battery Holddown
Rods
Spin-off rods retain battery clamp
and battery.
1
Battery
12 volt, 340 amp battery
recharged by engine alternator.
