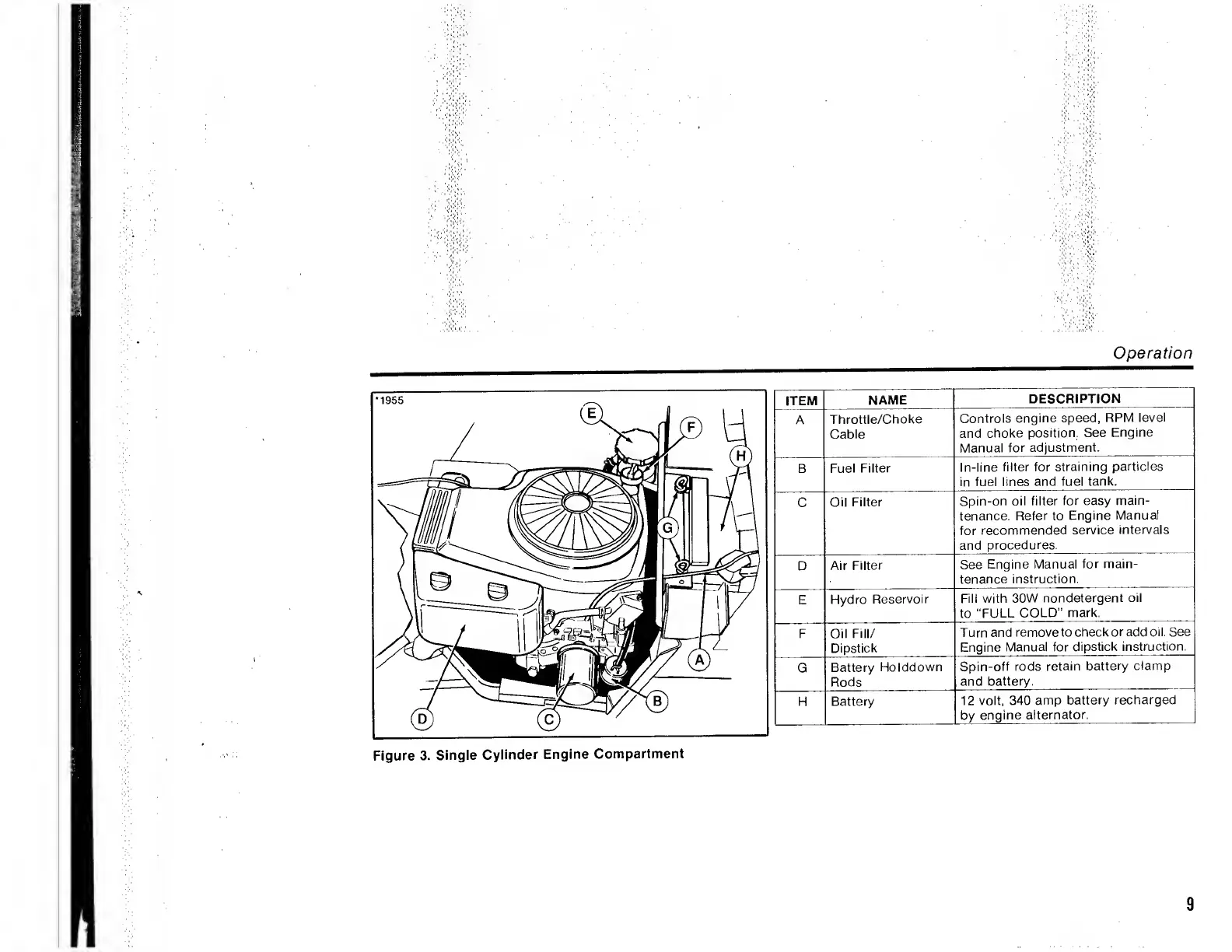

Figure 3. Single Cylinder Engine Compartment
Operation
ITEM
NAME
DESCRIPTION
A
Throttle/Choke
Cable
Controls engine speed, RPM level
and choke position. See Engine
Manual for adjustment.
B
Fuel Filter
In-line filter for straining particles
in fuel lines and fuel tank.
C
Oil Filter
Spin-on oil filter for easy main¬
tenance. Refer to Engine Manual
for recommended service intervals
and procedures.
D
Air Filter
See Engine Manual for main¬
tenance instruction.
E
Hydro Reservoir
Fill with 30W nondetergent oil
to “FULL COLD” mark.
F
Oil Fill/
Dipstick
Turn and remove to check or add oil. See
Engine Manual for dipstick instruction.
G
Battery Holddown
Rods
Spin-off rods retain battery clamp
and battery.
H
Battery
12 volt, 340 amp battery recharged
by engine alternator.
