23
Landlord-Snowthrower Assembly
Assemble the Deflector
1. See Figure 45. Attach the deflector (C) to the dis-
charge chute with two screws (H), washers (G), spac-
ers (F), washers (A), lockwashers (E) and nuts (D).
2. Position the bolt (I) and washer (A), then thread the
knob (B) onto the bolt (I).
Assemble the Hitch Brackets
1. Mount the hitch brackets to the inside of the
snowthrower capscrews and flange locknuts as
shown in Figures 46 - 48.

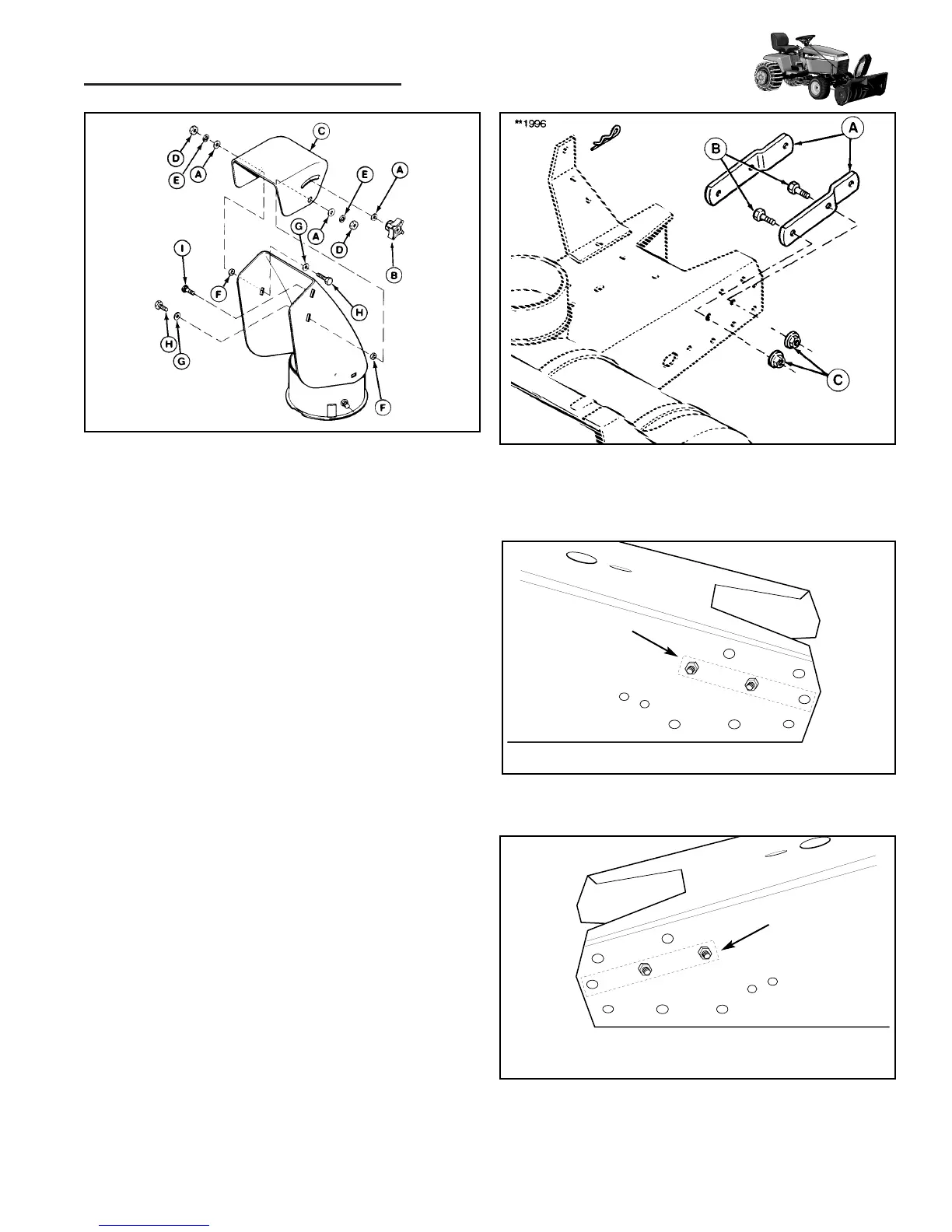

Figure 45. Deflector
A. Washer, 5/16 F. Spacer
B. Knob G. Washer, 5/16
C. Deflector H. Screw, 5/16
D. Nut, 5/16 I. Carriage Bolt, 5/16
E. Lockwasher, 5/16
Figure 46. Installing the Hitch Brackets
A. Hitch Brackets C. Flange Locknut
B. Capscrew, 1"
Figure 47. Hole Pattern - Left Side
Figure 48. Sketch 2. Hole Pattern - Right Side
NOTE: Support Arm Removed For Clarity
Hitch Bracket
(Mounted On
Inside)
Hitch Bracket
(Mounted On
Inside)
To Next Page
