6 - 53
6 General Repair
6C Foot Controls Repair
Frame hole located
above right side footrest
A
B
C
K
E
M
F
L
G
F
D
L
I
J
H
I
G
F
A

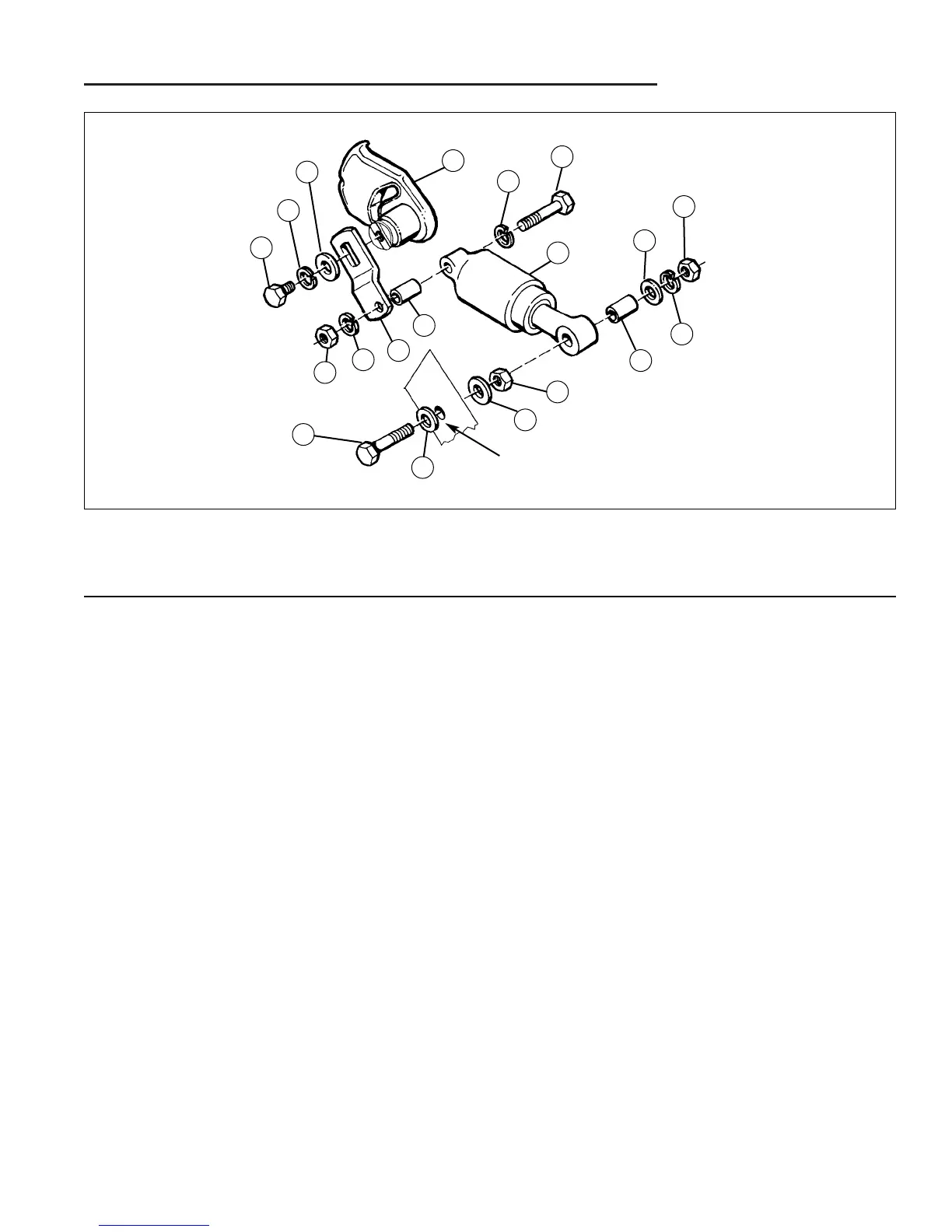

Figure C-25. Hydrostatic Control Dampener Kit Parts
Hydrostatic Control Dampener Service
Later models and early models equipped with Hydro
Static Dampener Kit 1686670 use a shock absorber (B,
Figure C-25) to dampen the transmission linkage.
If the tractor jerks forward when the ground speed con-
trol lever is moved, the shock absorber may need to be
replaced.
1. See Figure C-25. Remove the hardware securing the
shock absorber (B).
2. Remove the shock absorber (B) and manually pull
the ends. If little resistance is felt, replace it.
A 2 SPACER
B 1 SHOCK ABSORBER
C 1 CAM CONTROL ASSY.
D 1 BRACKET
E 1 LOCKWASHER, 3/8
F 3 LOCKWASHER, 5/16
G 2 NUT, Hex, 5/16-18
H 1 NUT, Hex, 1/2-20
I 2 WASHER, 11/32 x 3/4 x 1/16
J 1 WASHER, 11/32 x 1 x 1/8
K 1 CAPSCREW, Hex, 3/8-16 x 3/4
L 2 CAPSCREW, Hex, 5/16-18 x 1-3/4
M 1 WASHER, 13/32 x 1-1/2 x 1/8
REF.
LTR. QTY. DESCRIPTION
REF.
LTR. QTY. DESCRIPTION
