7 - 33
7 Transmission Repair
7C Hydro-Gear 216-3010L

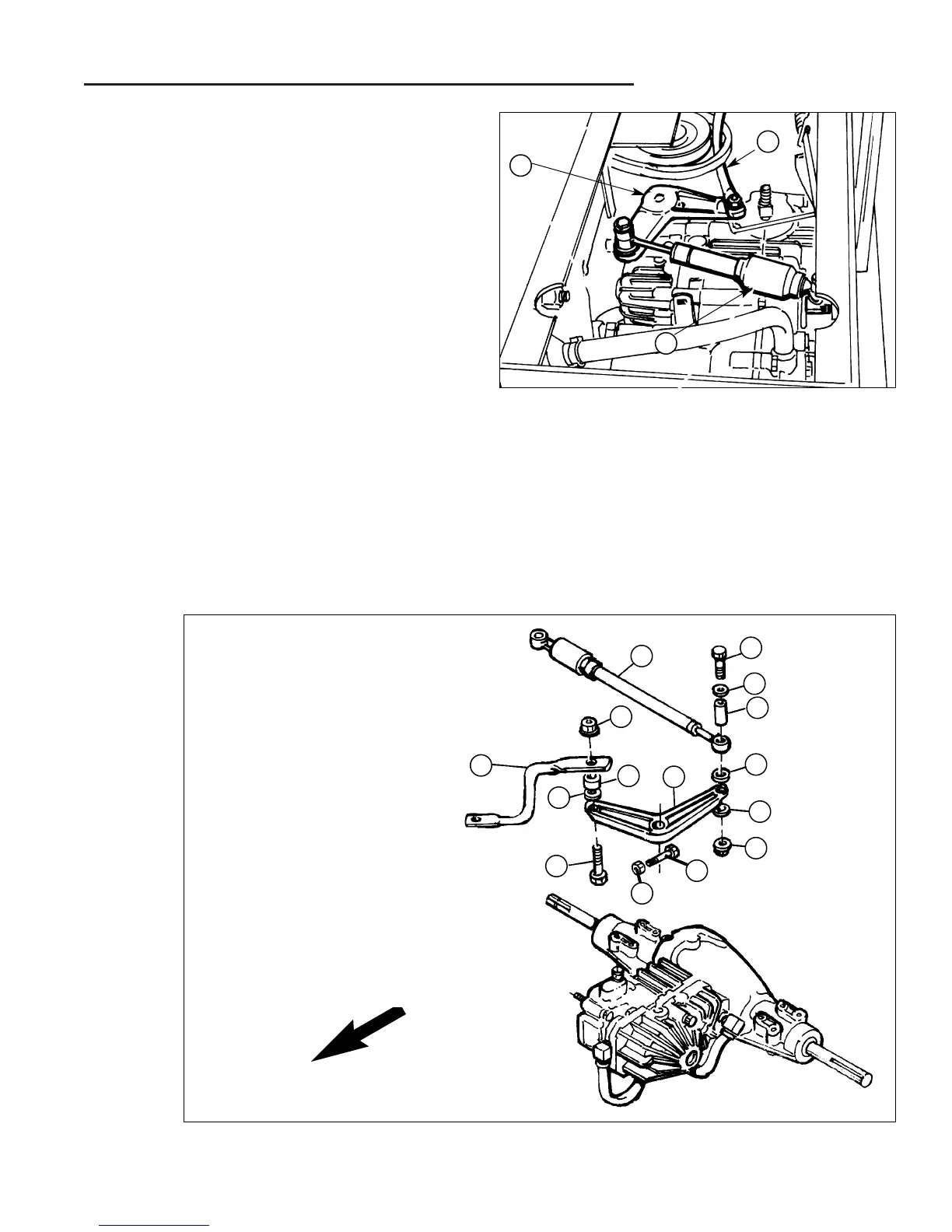

Figure C-7 Hydro Control Lever Attaching Parts
12. Remove locknut and washer securing hydro control
lever to shock absorber. Position shock absorber out
of the way and replace hardware.
13. Remove locknut and washer securing hydro control
lever to hydro shift rod. Position rod out of the way
and replace hardware.
Figure C-6 Remove Hydro Control Lever
A. Hydro Control Lever
B. Hydro Shift Rod
C. Shock Absorber
A
B
C
A. Shock Absorber
B. Capscrew, 5/16-18 x 2"
C. Washer, 3/4" O.D.
D. Spacer, Long
E. Washer, 1" O.D.
F. Locknut, 5/16-18
G. Hydro Control Lever
H. Hydro Shift Rod (Rear)
I. Spacer, Short
J. Capscrew, 5/16-18 x 3/4"
K. Screw, Grade 8 #10-32x2
L. Locknut, #10-32
B
A
F
I
G
J
C
H
C
D
E
C
F
FRONT
K
L
