7 - 14
7 Transmission Repair
7A Tuff Torq K215A
51. Reposition and tighten the neutral detent mounting
plate previously loosened for access to hydrostatic
pump mount bolts.

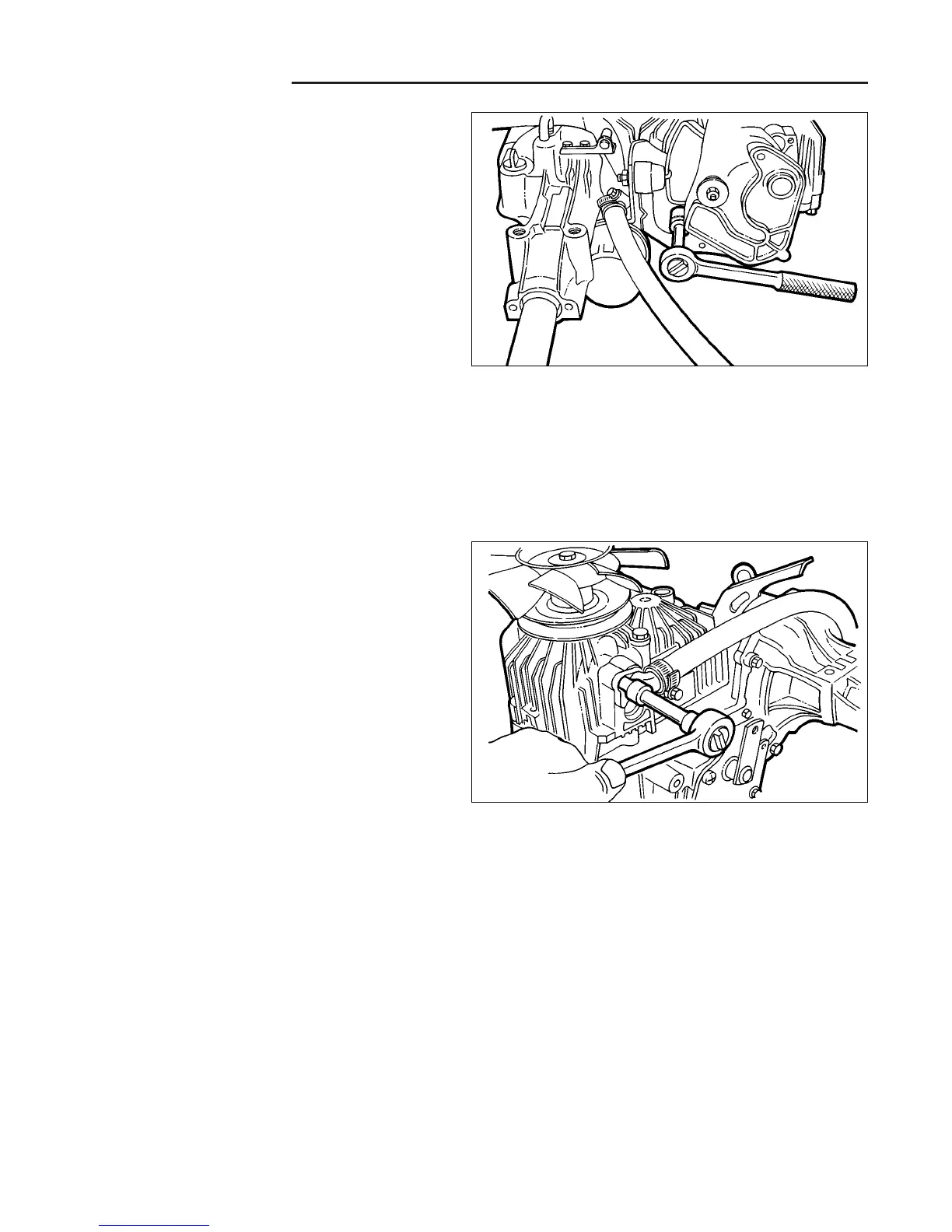

Figure A-36. Tighten Neutral Detent Mount Plate
52. Install O-ring hose fittings on side (outlet) and bottom
(inlet) of hydrostatic pump.
53. Transaxle hydraulic fluid capacity is approximately
5.8 quarts.
54. Purge the transaxle. See Adjustment Section for the
purging procedure.
Figure A-37. Install O-Ring Hose Fittings
