7 - 34
7 Transmission Repair
7C Hydro-Gear 216-3010L

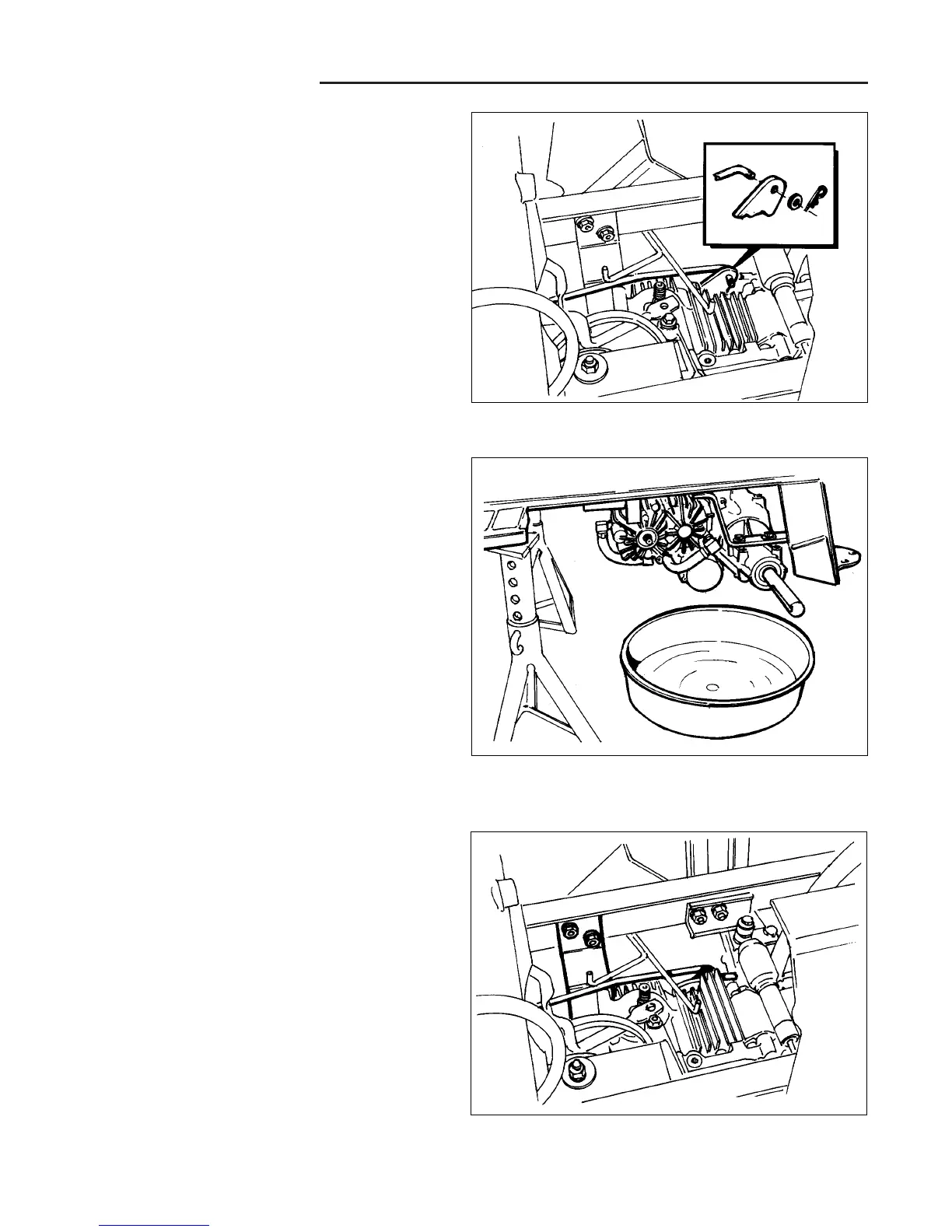

Figure C-10. Remove Front Torque Strap
16. Place a jack under the transaxle. Remove the lock-
nuts from front torque strap. Leave the torque strap
on the transaxle.
14. Release park brake. Remove cotter key and washer
holding brake rod to transaxle brake lever.
Figure C-8 Remove Brake Rod
Figure C-9 Drain Transaxle Oil
15. Remove oil filter and allow all oil to drain into pan.
Reinstall filter.
