7 - 63
7 Transmission Repair
7E Tuff Torq K210A

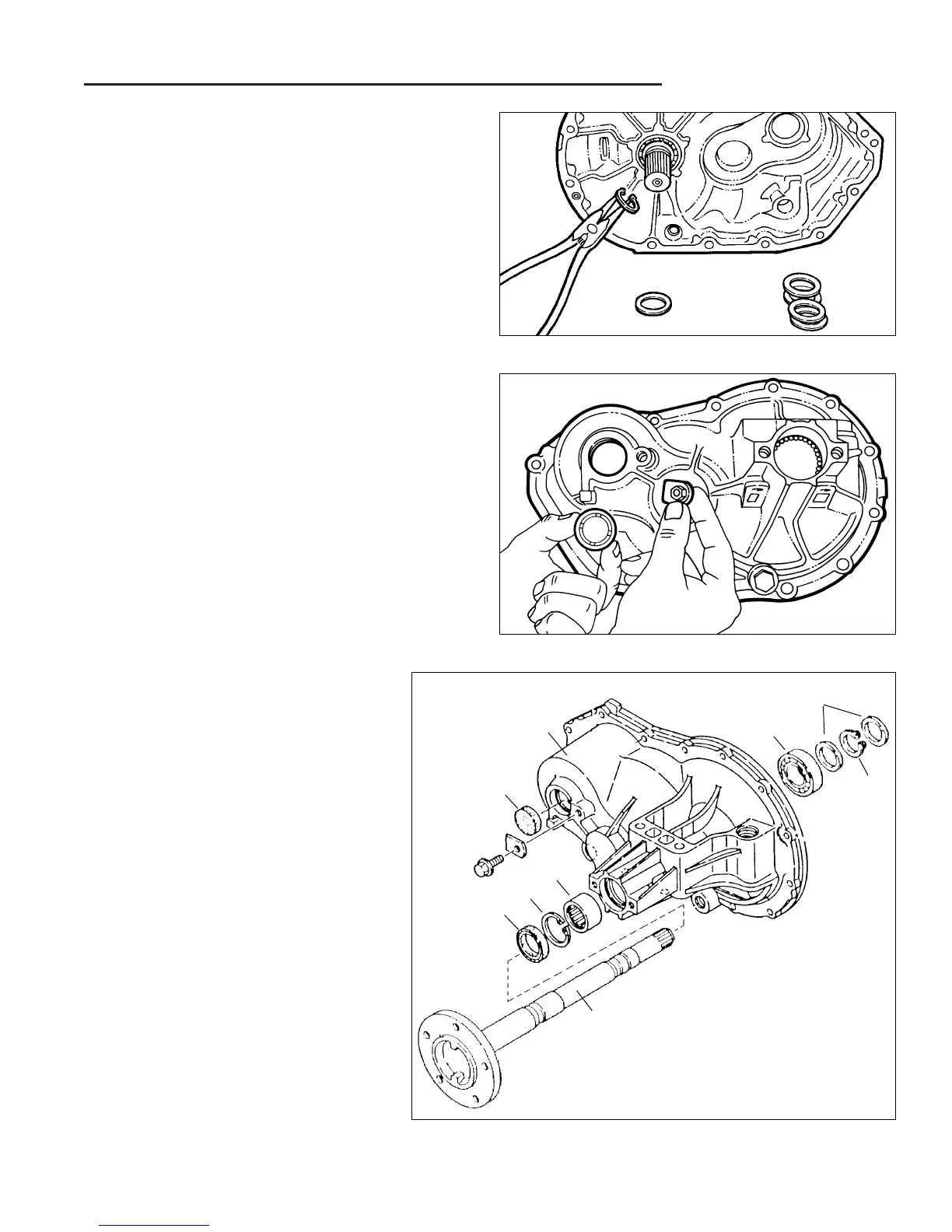

Figure E-12. Remove Axle Shaft From Case
1. Case
2. Roller Bearing
3. Washer
4. External Snap Ring
5. Axle Shaft
6. Axle Seal
7. Internal Snap Ring
8. Reduction Shaft
9. Needle Bearing
Sealing Cap
1
2
3
4
5
6
7
8
9
11. Remove axle shaft seal (6, figure E-14)
and internal snap ring under seal (7).
12. Clean case in solvent and blow dry.
Figure E-14. Axle Shaft Removal
9. Remove washer from axle shaft. Remove external
snap ring, and second washer next to roller bearing.
Drive axle shaft out of case with soft mallet. Remove
roller bearing from case.
Figure E-13. Remove Reduction Shaft Seal Cap
10. Remove reduction shaft end seal cap from transaxle
case by removing retainer bolt and bracket.
