6-27
6 General Repair
6B Hand Controls Repair
17
12
11
9
10
13
3
8
7
12
14
11
1
4
16
16
6
2
11
14
11
1
12
11
16
5
15
18
Torque to
9-11 ft. lbs.
Torque to
55-75 in. lbs.
Screw (18) & spacer (15) are
located inside bottom of lever (5).

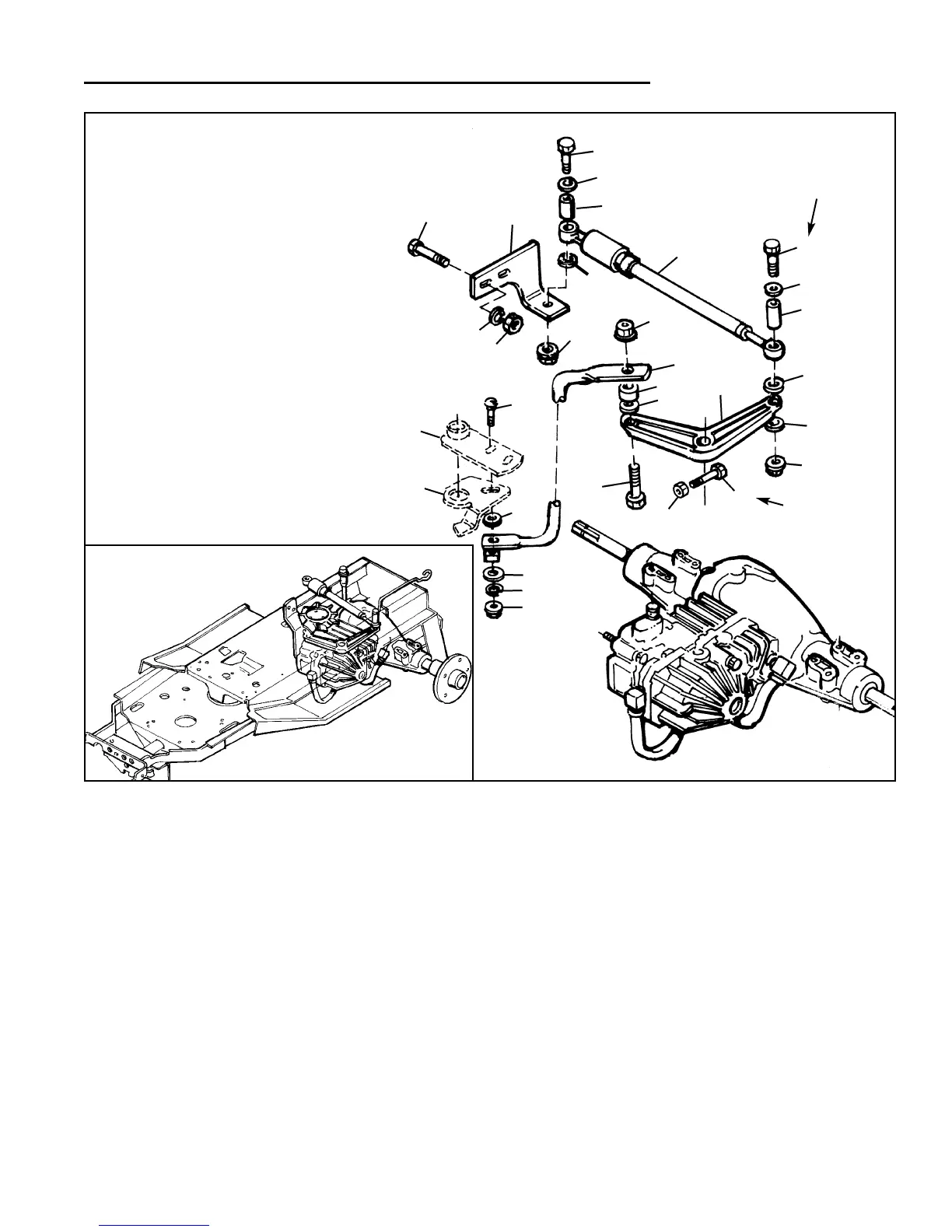

Figure B–23. Rear SHift Rod & Linkage
Ref. Qt. Desc.
No.
1 2 SPACER
2 2 SPACER
3 1 BRACKET, Shock
4 1 SHOCK ABSORBER
5 1 LEVER, Hydro Control
6 1 ROD, Shift, Rear
7 2 NUT, Hex.Fin., 3/8-16
8 2 LOCKWASHER, 3/8
9 3 LOCKWASHER, 5/16
10 3 NUT, Hex Fin., 5/16-18
11 5 WASHER, 11/32 x 3/4 x 1/16
19
20
21
Ref. Qt. Desc.
No.
12 4 WASHER, 11/32 x 1 x 1/8
13 1 CAPSCREW, Hex Hd., 5/16-18 x 3/4
14 2 CAPSCREW, Hex. Hd., 5/16-18 x 2
15 1 NUT, Hex Lock #10-32
16 3 NUT, Hex Flange Lock, 5/16-18
17 1 BOLT, Carriage, 5/16-18 x 1-1/4
18 1 SCREW, Hex Soc. Hd., Gr. 8 #10-32 x 2
19 1 CAPSCREW, Hex Hd., 3/8-16 x 1
20 1 Shift Pivot Assm.
21 1 Lockout Lever
