MOWER ADJUSTMENTS
Mower Drive Belt Tension Adjustment - All
Models
If the mower belt slips or fails to drive, the
mower belt tension may need adjustment.
To check, proceed as follows.
1. P lace the mower in high cut, using
height control lever. Place the PTO
lever in engaged position.
NOTE
In the following steps, refer to figure
33 for the 42" and 48" mower or to
figure 34 for the 36" mower.
2. Measure the distance between the
PTO rod guide (A) and the set collar
(B). The distance should measure as
shown in figure 33 or 34. If not,
proceed to step 3.
3. Place the PTO lever in disengaged
position.
4. Loosen the setscrew in the set collar
(B). Move the rod forward to increase
gap, or backward to decrease gap.
Retighten the setscrew.
5. R epeat the adjustment as necessary
until the distance measures as shown
in figure 33 or 34 with the PTO lever in
engaged position.
6. C heck the adjustments of the PTO
pulley belt stops and the mower belt
stops.

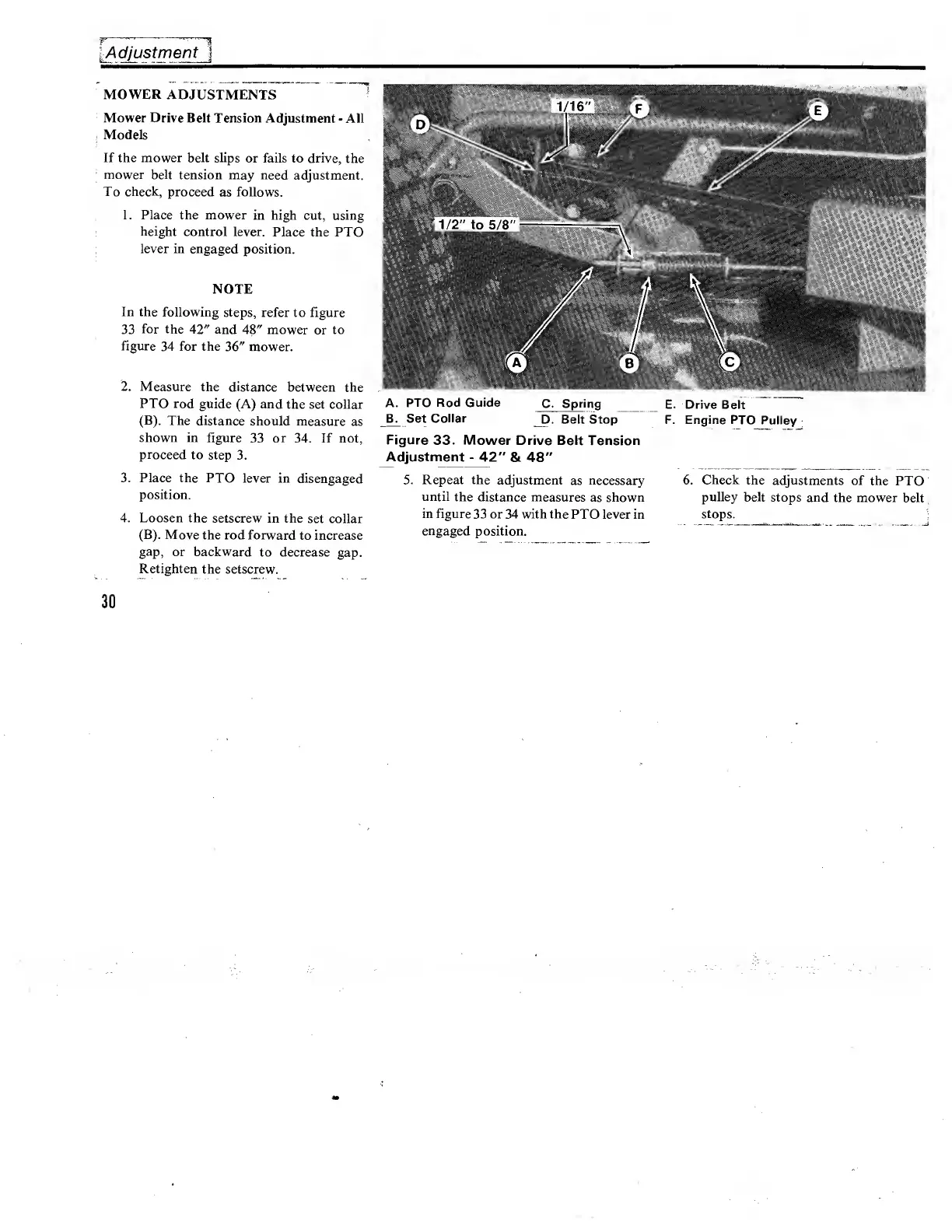

A. PTO Rod Guide C. Spring
B. Set Collar D. Belt Stop
Figure 33. Mower Drive Belt Tension
Adjustment - 42" & 48"
E. Drive Belt
F. Engine PTO Pulley
30
