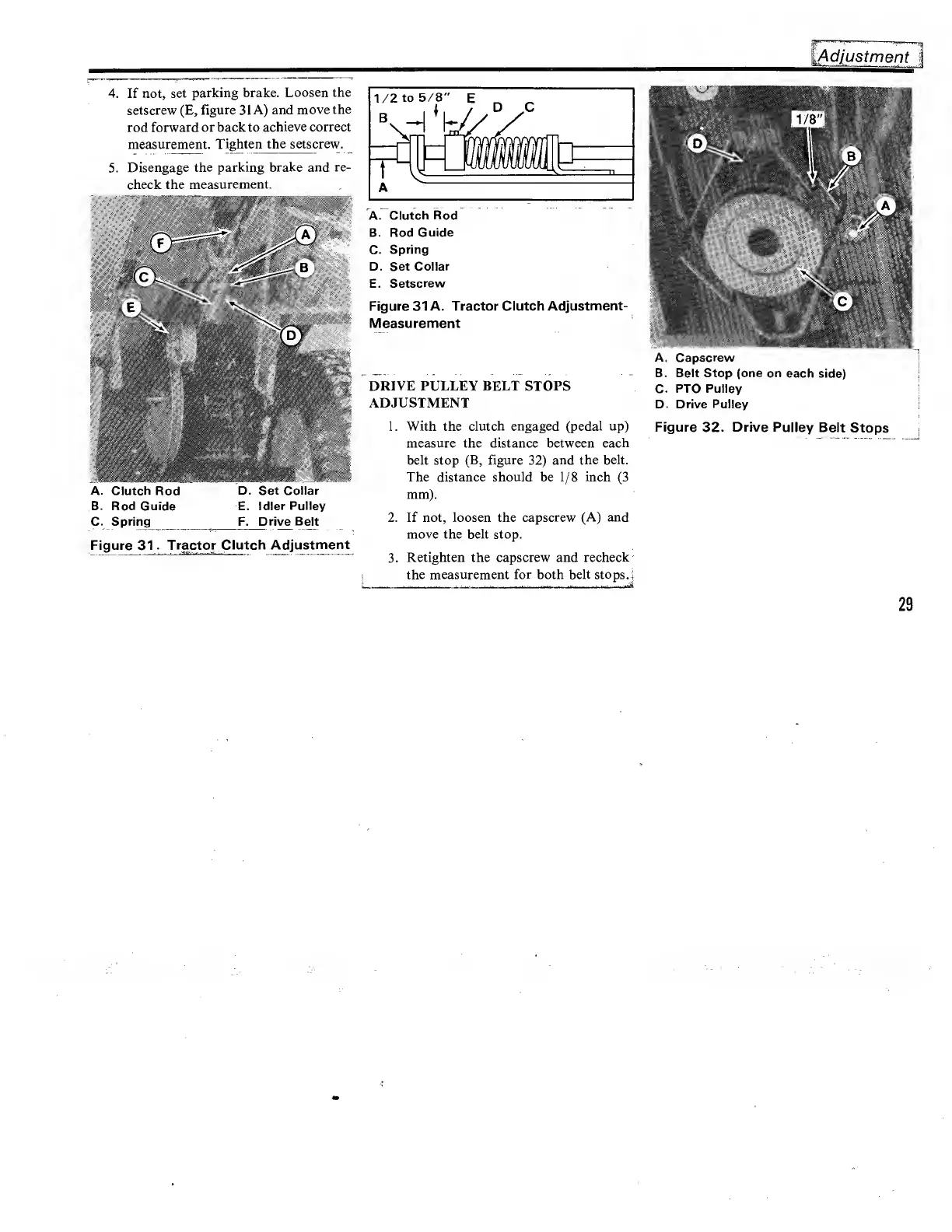

4.
If
not,
set
parking
brake.
Loosen
the
setserew
(E,
figure
31
A)
and
move
the
rod
forward
or
back
to
achieve
correct
measurement.
Tighten
the
setscrew.
5.
Disengage
the
parking
brake
and
re¬
check
the
measurement.
A.
Clutch
Rod
D.
Set
Collar
B.
Rod
Guide
E.
Idler
Pulley
C.
Spring
___R_Drive
Belt
Figure
31.
Tractor
Clu
tch
Adj
ustment
A.
Clutch
Rod
B.
Rod
Guide
C.
Spring
D.
Set
Collar
E.
Setscrew
Figure
31
A.
Tractor
Clutch
Adjustment-
Measurement
DRIVE
PULLEY
BELT
STOPS
ADJUSTMENT
1.
With
the
clutch
engaged
(pedal
up)
measure
the
distance
between
each
belt
stop
(B,
figure
32)
and
the
belt.
The
distance
should
be
1/8
inch
(3
mm).
2.
If
not,
loosen
the
capscrew
(A)
and
move
the
belt
stop.
3.
Retighten
the
capscrew
and
recheck
the
measurement
for
both
belt
stops.,
A.
Capscrew
B.
Belt
Stop
(one
on
each
side)
C.
PTO
Pulley
D.
Drive
Pulley
Figure
32.
Drive
Pulley
Belt
Stops
29
