[Adjustnientsl

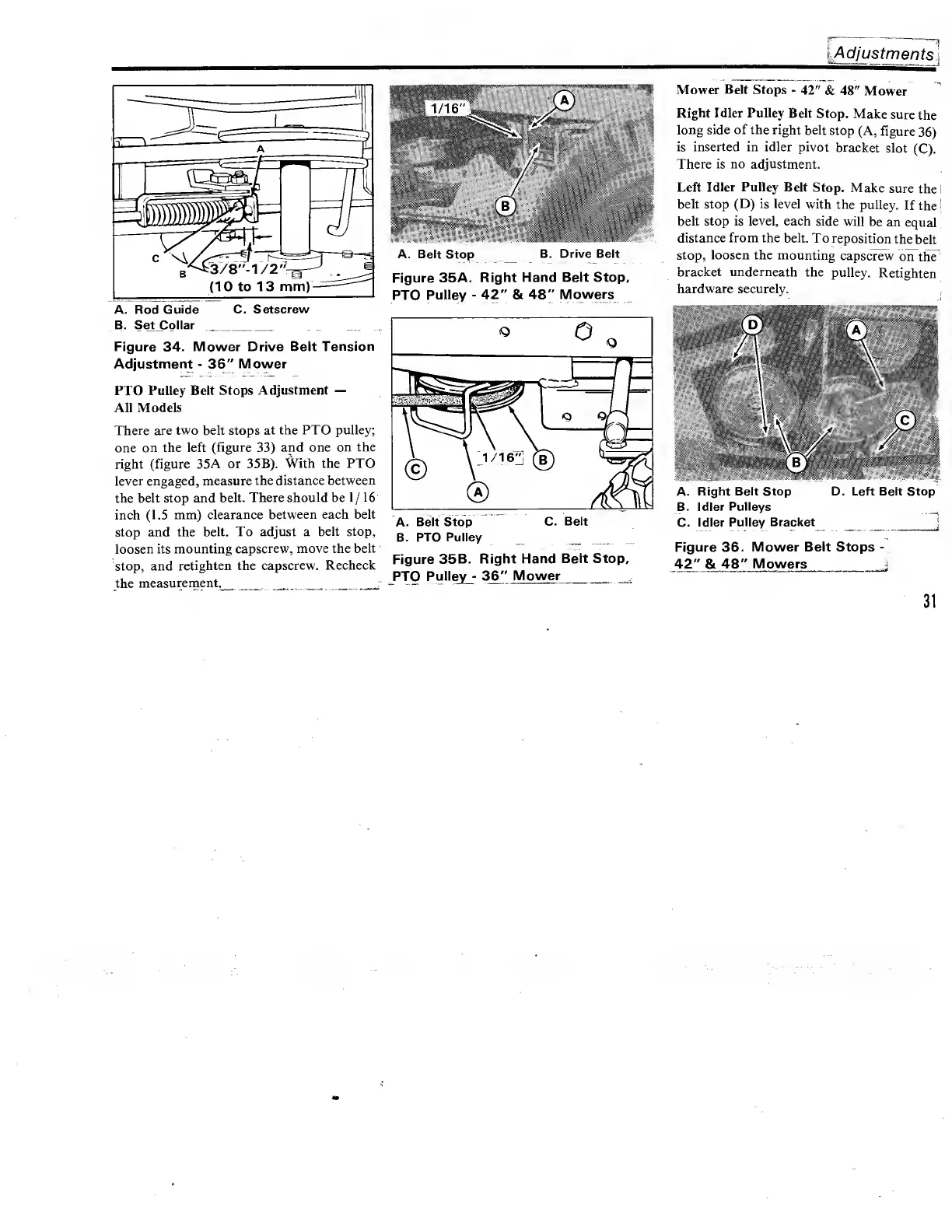

Figure 34. Mower Drive Belt Tension
Adjustment - 36" Mower
PTO Pulley Belt Stops Adjustment —
All Models
There are two belt stops at the PTO pulley;
one on the left (figure 33) and one on the
right (figure 35A or 35B). With the PTO
lever engaged, measure the distance between
the belt stop and belt. There should be 1/16
inch (1.5 mm) clearance between each belt
stop and the belt. To adjust a belt stop,
loosen its mounting capscrew, move the belt
stop, and retighten the capscrew. Recheck
the measurement.
A. Belt Stop B. Drive Belt
Figure 35A. Right Hand Belt Stop,
PTO Pulley - 42" & 48" Mowers
Figure 35B. Right Hand Belt Stop,
PTO Pullex_- 36" Mower _,
Mower Belt Stops - 42" & 48" Mower
Right Idler Pulley Belt Stop. Make sure the
long side of the right belt stop (A, figure 36)
is inserted in idler pivot bracket slot (C).
There is no adjustment.
Left Idler Pulley Belt Stop. Make sure the
belt stop (D) is level with the pulley. If the *
belt stop is level, each side will be an equal
distance from the belt. To reposition the belt
stop, loosen the mounting capscrew on the^
bracket underneath the pulley. Retighten
hardware securely.
A. Right Belt Stop D. Left Belt Stop
B. Idler Pulleys _,
C. Idler Pulley Bracket _j
Figure 36. Mower Belt Stops -
4j^' & 48" Mo wers _
31
