Simplicity 6100 Series User Manual

---------

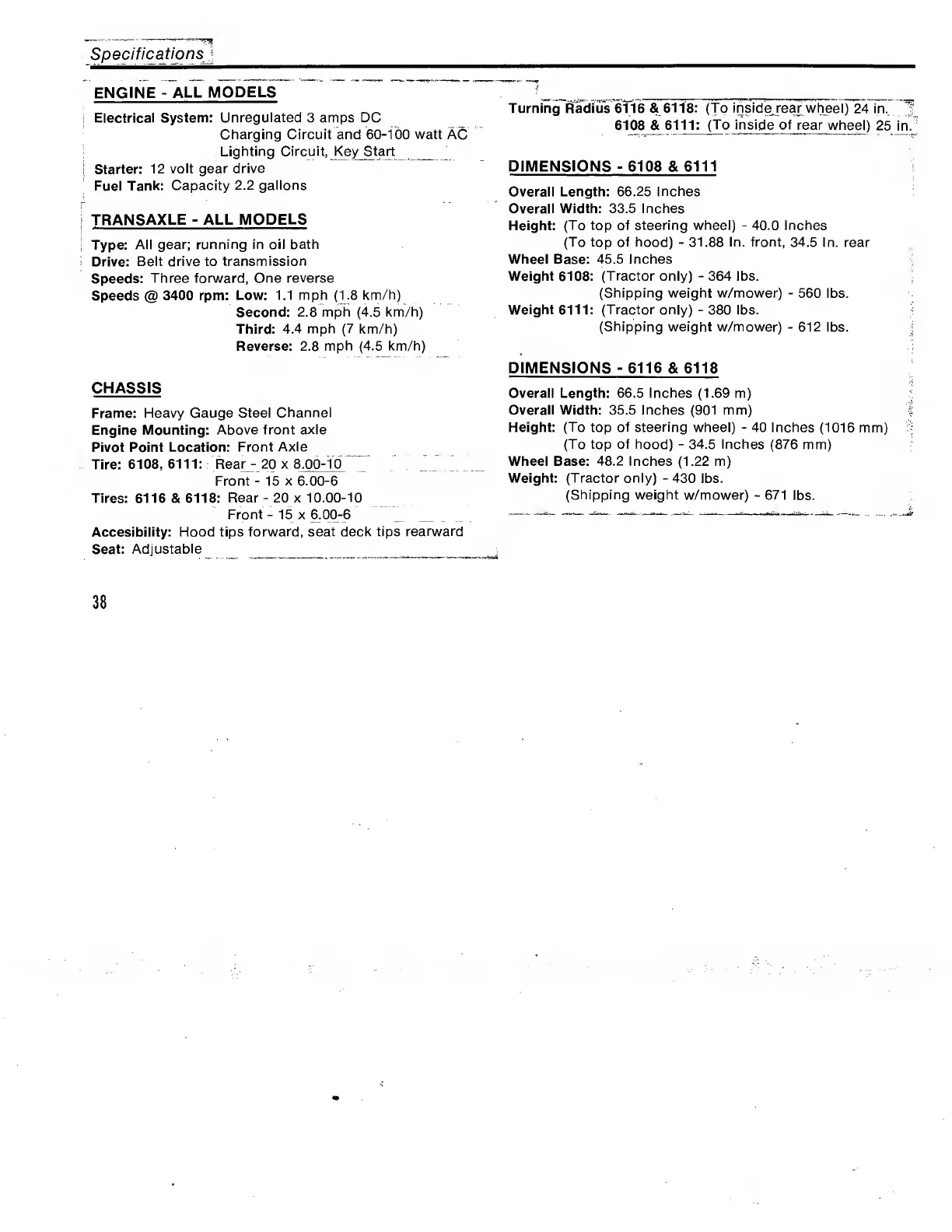

Specific^tionsj^ _
ENGINE - ALL MODELS —
Electrical System: Unregulated 3 amps DC
Charging Circuit and 60-100 watt AC
Lighting Circuit, Key Start _
Starter: 12 volt gear drive
Fuel Tank: Capacity 2.2 gallons
TRANSAXLE - ALL MODELS
Type: All gear; running in oil bath
Drive: Belt drive to transmission
Speeds: Three forward. One reverse
Speeds @ 3400 rpm: Low: 1.1 mph (1.8 km/h)
Second: 2.8 mph (4.5 km/h)
Third: 4.4 mph (7 km/h)
Reverse: 2.8 mph (4.5 km/h)
CHASSIS
Frame: Heavy Gauge Steel Channel
Engine Mounting: Above front axle
Pivot Point Location: Front Axle _
Tire: 6108, 6111: Rear - 20 x 8. 00-10 I I
Front - 15 X 6.00-6
Tires: 6116 & 6118: Rear - 20 x 10.00-10
Front - 15 X 6^^ 00-6
Accesibiiity: Hood tips forward, seat deck tips rearward
Seat: Adjustable _ _ ___
f
Turning Radius 6ri6 & 6118: (To insid^rear wheel) 24 in.
610^4 61 1 1 : (To inside of rear wheel ) 25
DIMENSIONS - 6108 & 6111
Overall Length: 66.25 Inches
Overall Width: 33.5 Inches
Height: (To top of steering wheel) - 40.0 Inches
(To top of hood) - 31.88 In. front, 34.5 In. rear
Wheel Base: 45.5 Inches
Weight 6108: (Tractor only) - 364 lbs.
(Shipping weight w/mower) - 560 lbs.
Weight 6111: (Tractor only) - 380 lbs.
(Shipping weight w/mower) - 612 lbs.
DIMENSIONS - 6116 & 6118
Overall Length: 66.5 Inches (1.69 m)
Overall Width: 35.5 Inches (901 mm)
Height: (To top of steering wheel) - 40 Inches (1016 mm)
(To top of hood) - 34.5 Inches (876 mm)
Wheel Base: 48.2 Inches (1.22 m)
Weight: (Tractor only) - 430 lbs.
(Shipping weight w/mower) - 671 lbs.
38
