Operation
Installing the Grass Bag
WARNING
DO NOT attempt any maintenance, adjustments or service
with engine and blade running. STOP engine and blade.
Disconnect spark plug wire and secure away from spark
plug. Engine and components are HOT. Avoid serious
burns, allow sufficient time for all components to cool.
!
!
Important: The mulching plug must be removed only
when bagging is desired, and must be replaced as
soon as bagging operations are completed.

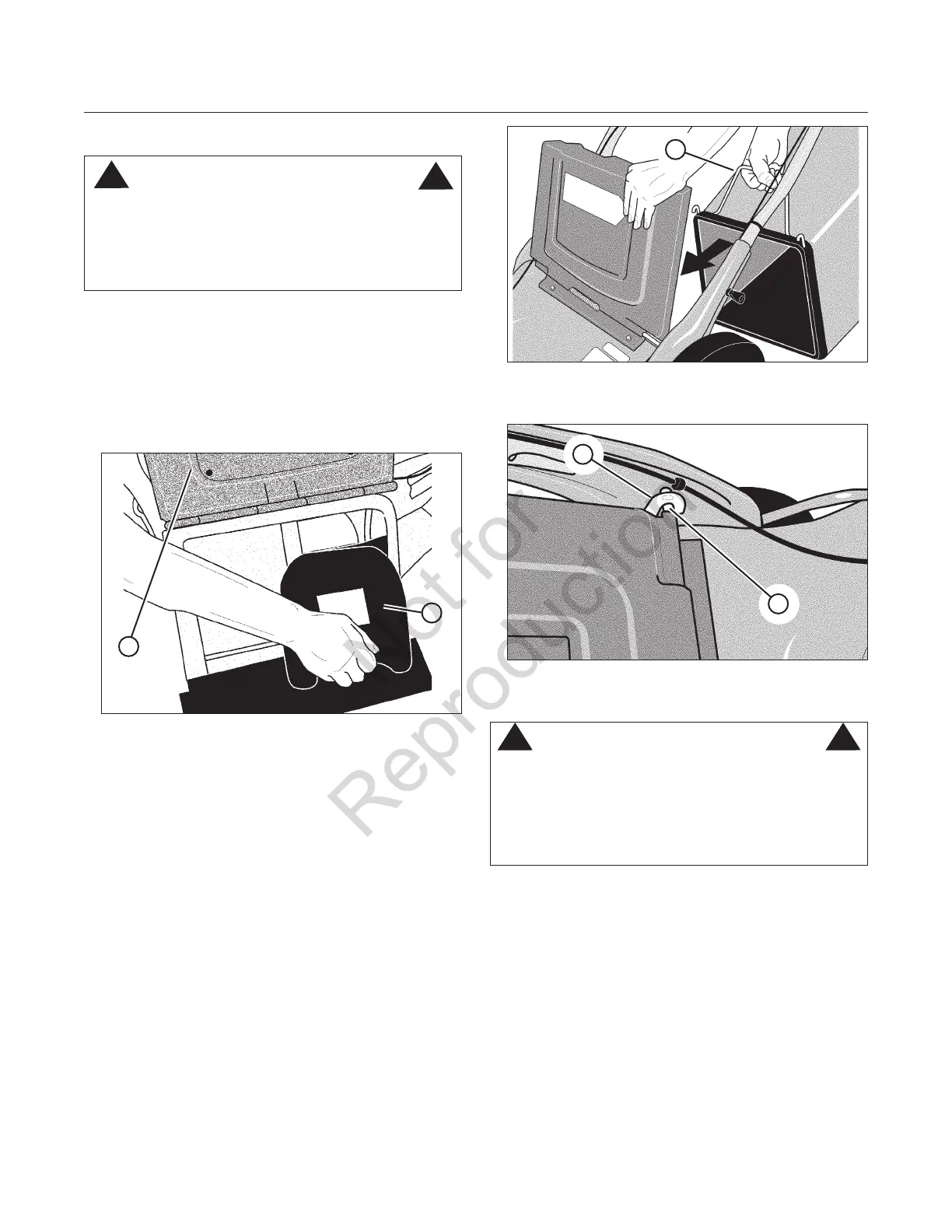

1. Raise the rear discharge door (A, Figure 12).
2. Remove the mulching plug (B) from the rear dis-
charge chute.
Figure 12: Removing the mulching plug
B
A
3. Holding the grass bag handle (A, Figure 13),
install the grass bag onto the mower, making
sure that the grass bag hooks (A, Figure 14) are
hooked onto the rear door pivot rod (B).
Figure 13: Installing the grass bag
A
Figure 14: Grass bag hooks
A
B
WARNING
Grass Catcher bags are made of woven fabric, and are
subject to deterioration and wear during normal usage.
Check condition of bag before each use. Immediately
replace worn or damaged catcher bags with only bags
recommended by the manufacturer. The grass catcher is
optional equipment on some models.
!
!
