GETTING STARTED
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure
Pliers
Hammer
Gloves
Phillips screwdriver
Safety glasses
Flat blade screwdriver
Level
Framing material
Framing square
Electric drill and bits (1/4 in.)
Reciprocating saw

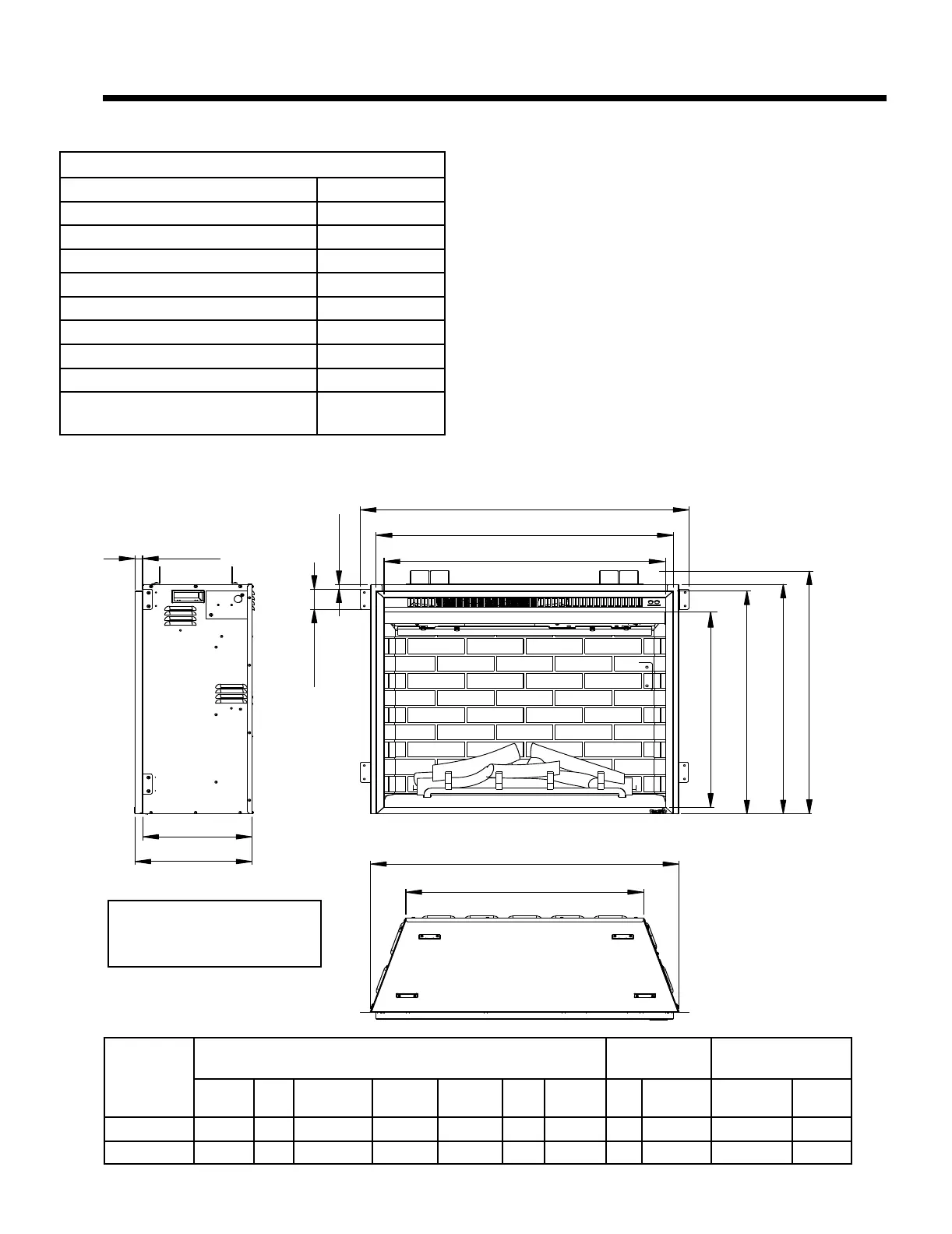

C. Appliance Dimensions
B. Tools and Supplies Needed
Parts and Hardware List
Part Quantity
Fireplace 1
Instruction Manual 1
Remote Control 1
AAA Battery 2
Mounting Bracket 4
Rear Leveling Bracket 2
Screw ST4x8 8
Screw ST4x12 4
Power Cord Assembly
(for 120V only)
1
A. Parts and Hardware
units: inches
MODEL
SHELL SIZE TRIM SIZE VIEWING AREA
D1 D2 H1 H4 W1 W4 W5 W2 H2 W3 H3
SF-BI30-EB 11-3/4 11 26-3/4 28-3/4 33 24 31 30 26-1/4 28-1/4 22-3/4
SF-BI36-EB 11-3/4 11 31-7/32 33-7/32 39 30 37 36 30-1/2 34-1/4 27-1/4
Note: The Decorative Front
sits ush to the oor of the
appliance.
